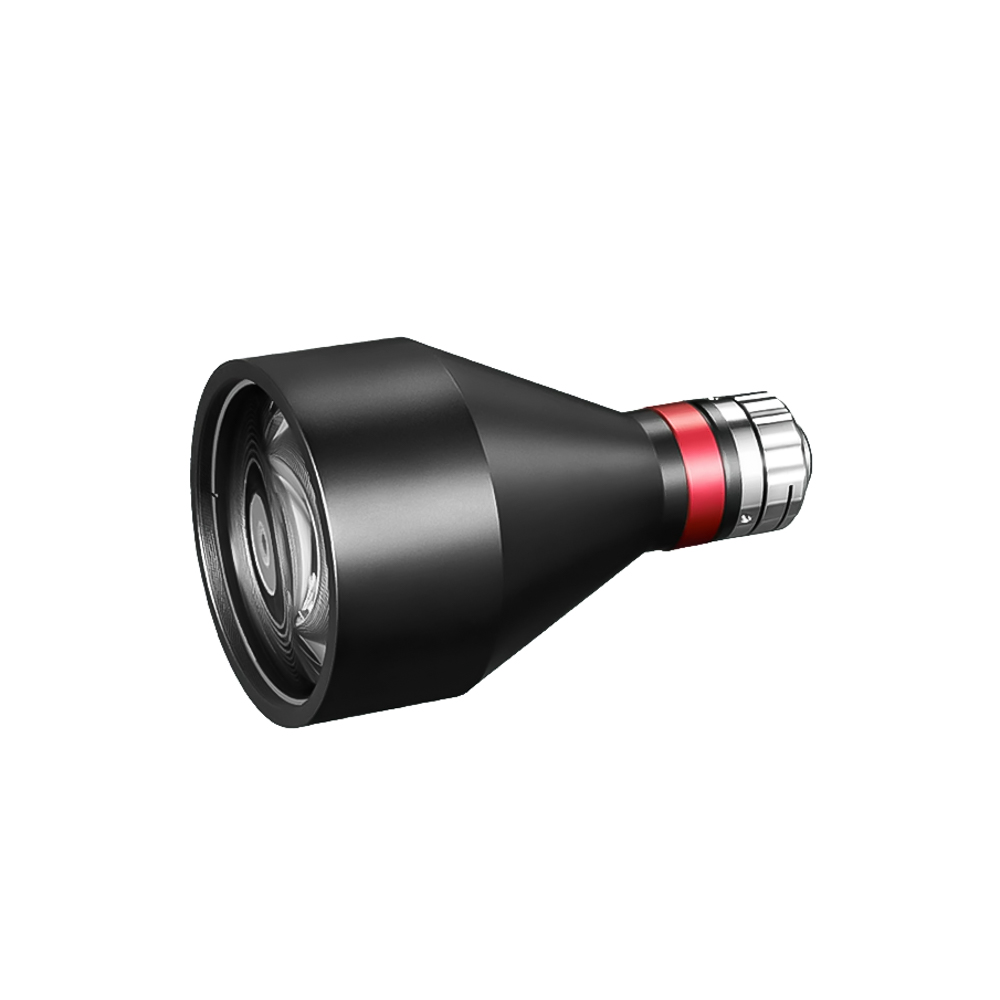

Coolens DTCM110-56 front view

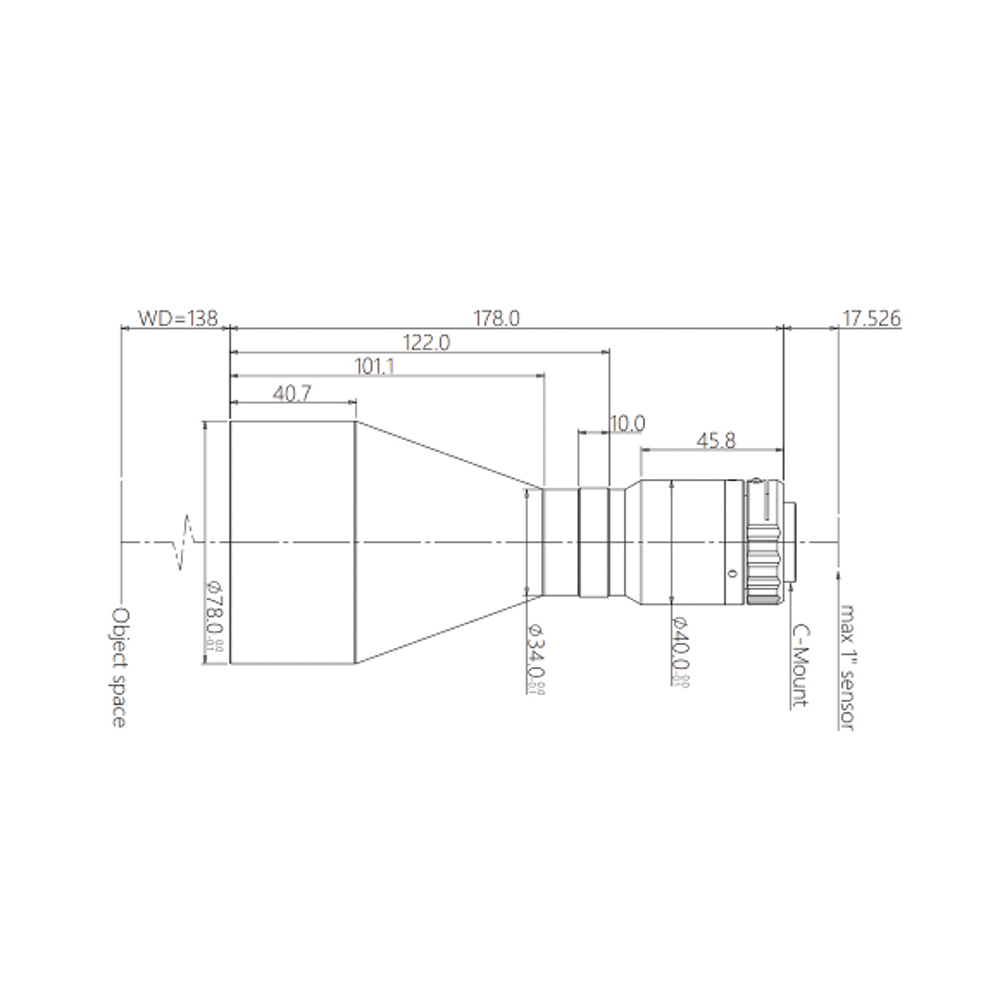

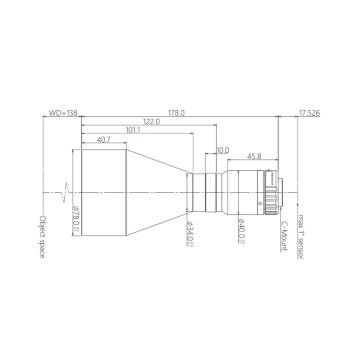

Coolens DTCM110-56 drawing

DTCM110-56-AL

Artikelnr.: 238.0089

DTCM110-56-AL

Coolens DTCM110-56-AL - C-Mount Bi-Telezentrisches Objektiv

• FOV ⌀ 56 mm, Ultra-Auflösungs-Bi-Telezentrisches Objektiv

• Bis zu 20 Megapixel, Sensoren mit 2,4 μm Pixelgröße

• 1"-Bi-Telezentrisches Objektiv, C-Mount

• Vergrößerung (x) 0,296

912,00
(Preise ohne Mehrwertsteuer)
EAN
7435846346303
Hersteller
Coolens
FNO
F 6.5
Sensortyp
1 Inch
Mount
C-mount
Megapixel
20MP
Serie
Telecentric
FOV
56 mm

Spezifikation

Sichtfeld (FOV): 56 mm ⌀

Maximale Sensorgröße: 16.6 mm (1")

Typische Telezentrizität: <0,1

MTF30: >130 lp/mm

I/O-Länge: 334 +/- 3 mm

Dept of Field: +/- 7.3 (@F16)

Länge: 178.0 mm

Vergrößerung: (x) 0,296

Arbeitsabstand: 138 +/- 3 mm

Blende: F6.5

Typische Verzerrung: max <0,1%

C-Mount

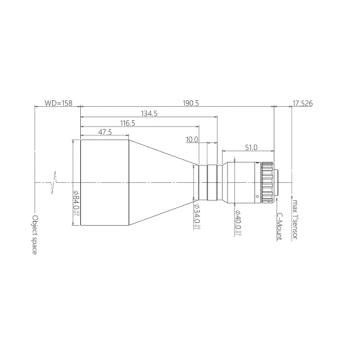

Alternative Artikel für DTCM110-56-AL
