SDP-CH1-A1-TB

SDP-CH1-A1-TB

Item No.: 167.1987

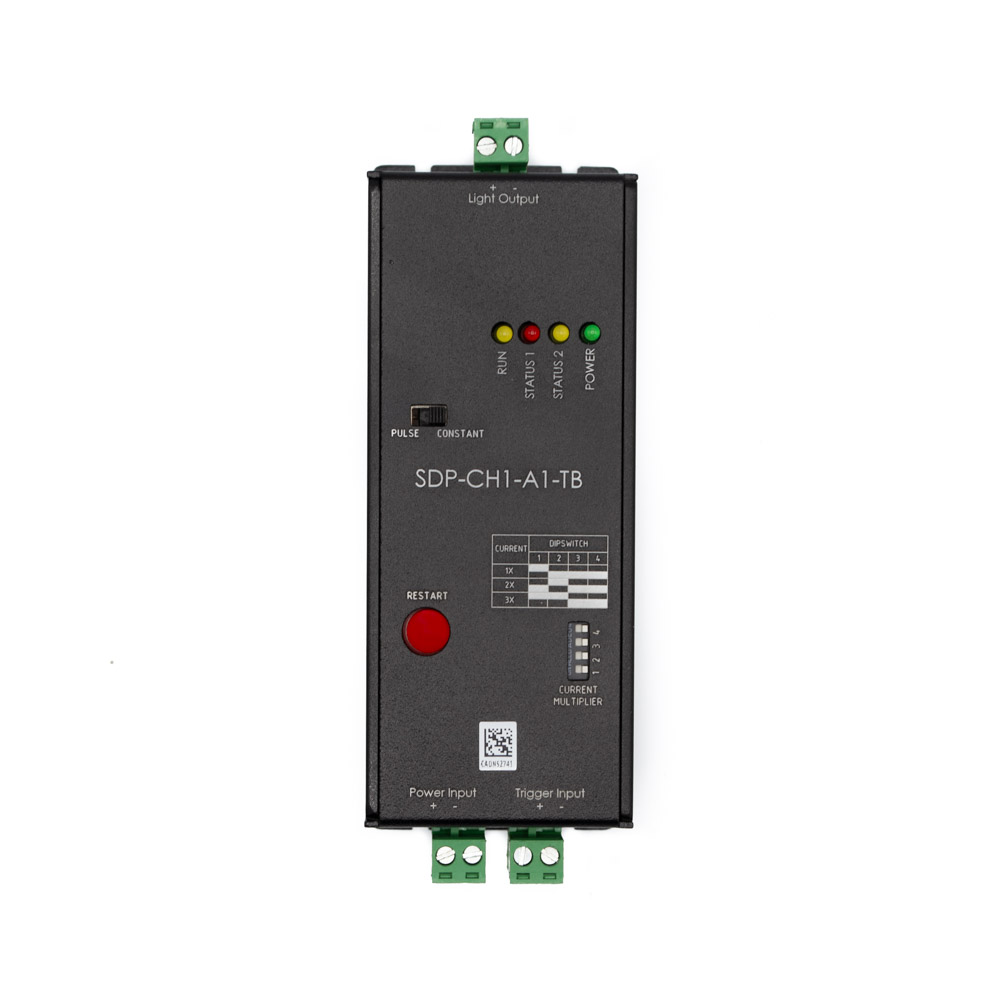

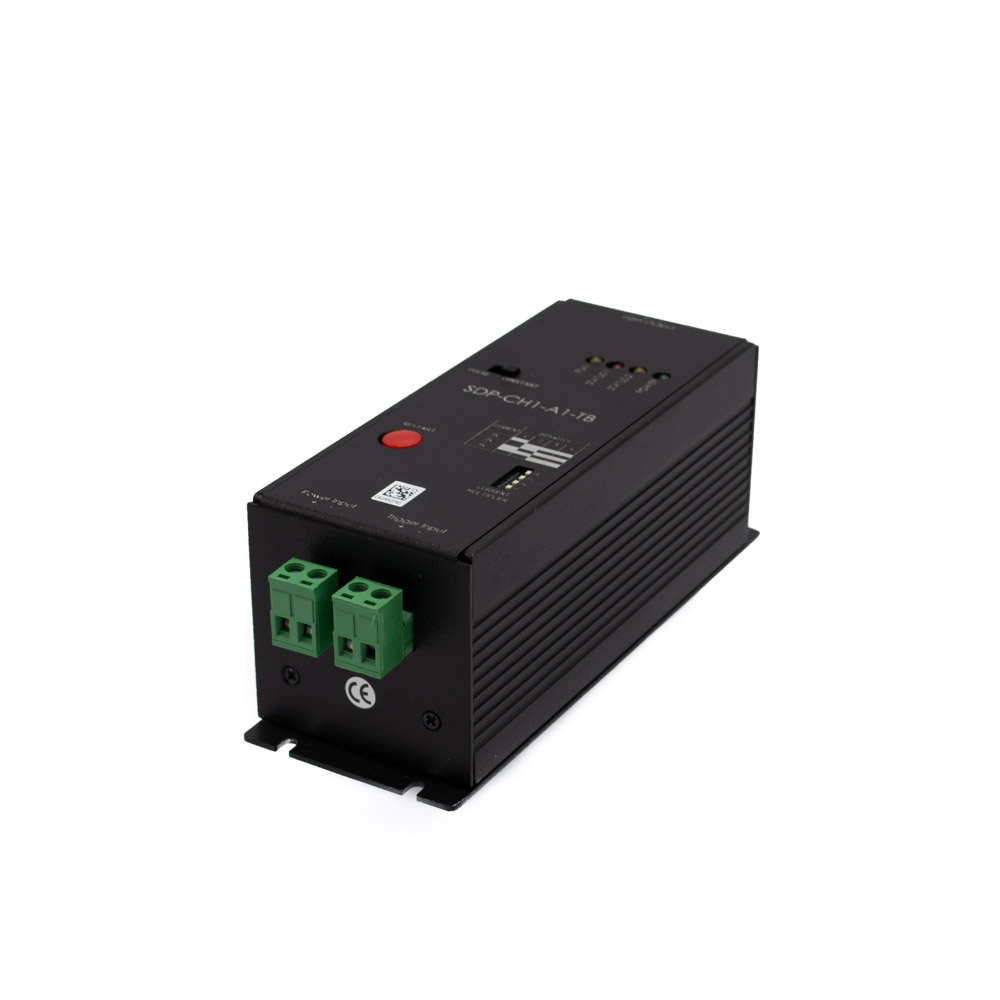

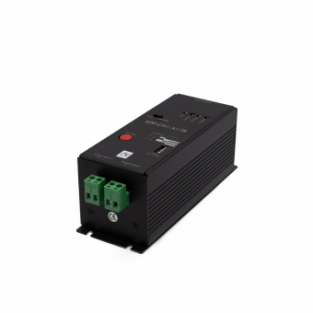

Machine Vision Overdrive Light Controller

SDP SERIES - Light controller

The SDP series controller is a single channel output controller for lighting. Able to sense lighting current during start up (minimum 30mA lighting current).

Overdrive lighting to max 3x (strobe mode only).

User manual: Click here to download

439,00
(Price excluding VAT)
EAN
7435846323380
Output voltage
24V
Input voltage
24V
Strobe (triggering)
Yes
Channels
1
Controller type
Analog
Series
SDP

Specifiaction

- Operation mode: Constant & Strobe

- Externel control: None

- Channels: 1

- Connector: Terminal

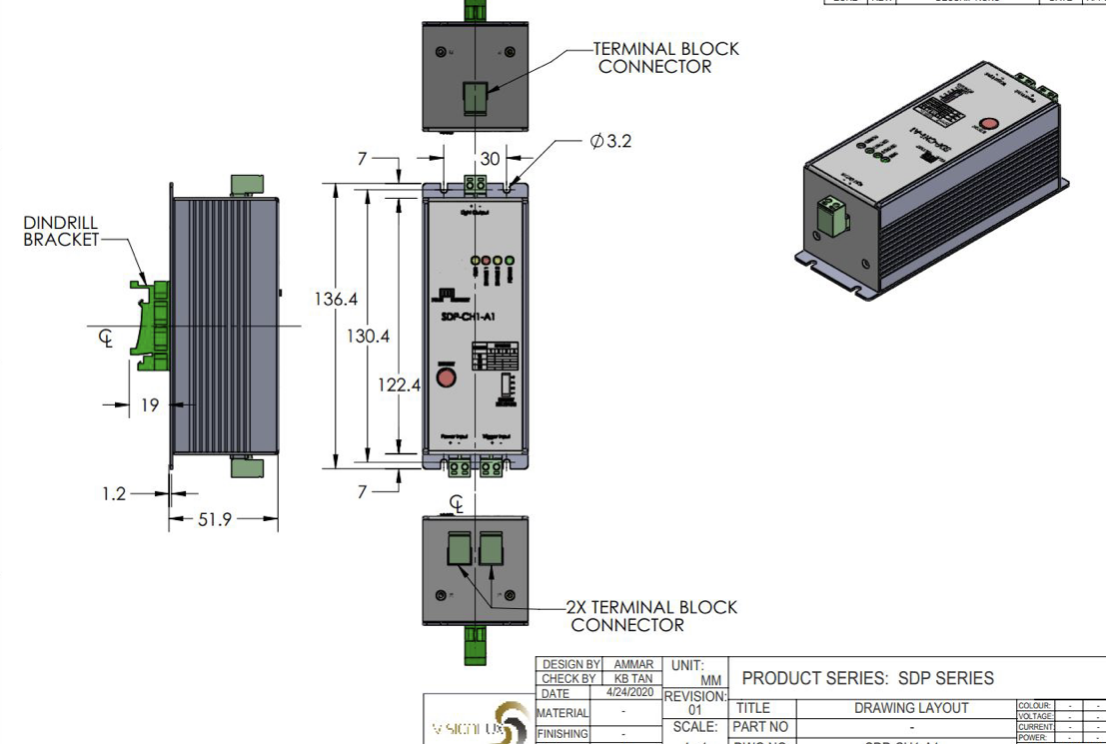

- Dimensions: 137 x 51 x 71 mm

Technical information

- Input voltage: 24V DC

- Minimum input current of 2A-6A (based on lighting output current X 2.5)

- Output voltage: 24V / 1.5A   (Constant)

- Output voltage: 50V / 4A      (Strobe)
