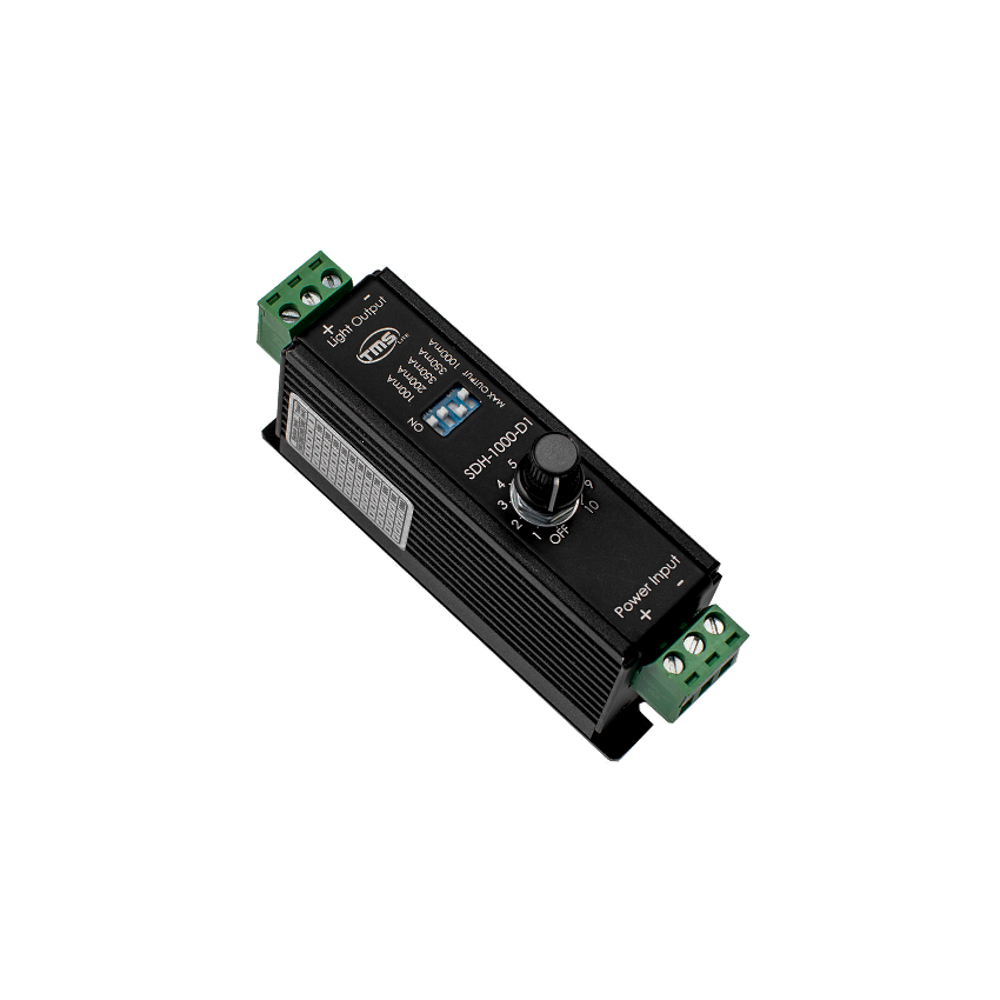

SDH-1000-D1
SDH-1000-D1

SDH-1000-D1

Item No.: 167.1985

Machine Vision analog Light Controller

SD SERIES light controller

The SD series controller is a single channel output controller for lighting. The SD controller has a VR adjustable knob to control the lighting intensity.

The current limit can be set using the DIP switches to prolong the lifespan of the lights.

User manual: Click here to download

259,00
(Price excluding VAT)
EAN
7435850152181
Output voltage
5V
Input voltage
24V
Strobe (triggering)
No
Channels
1
Controller type
Analog
Series
SDH

Specification

- Intensity: VR analog control (Adjustable)

- Operation mode: Constant

- Externel control: None

- Channels: 1

- Connector: Terminal

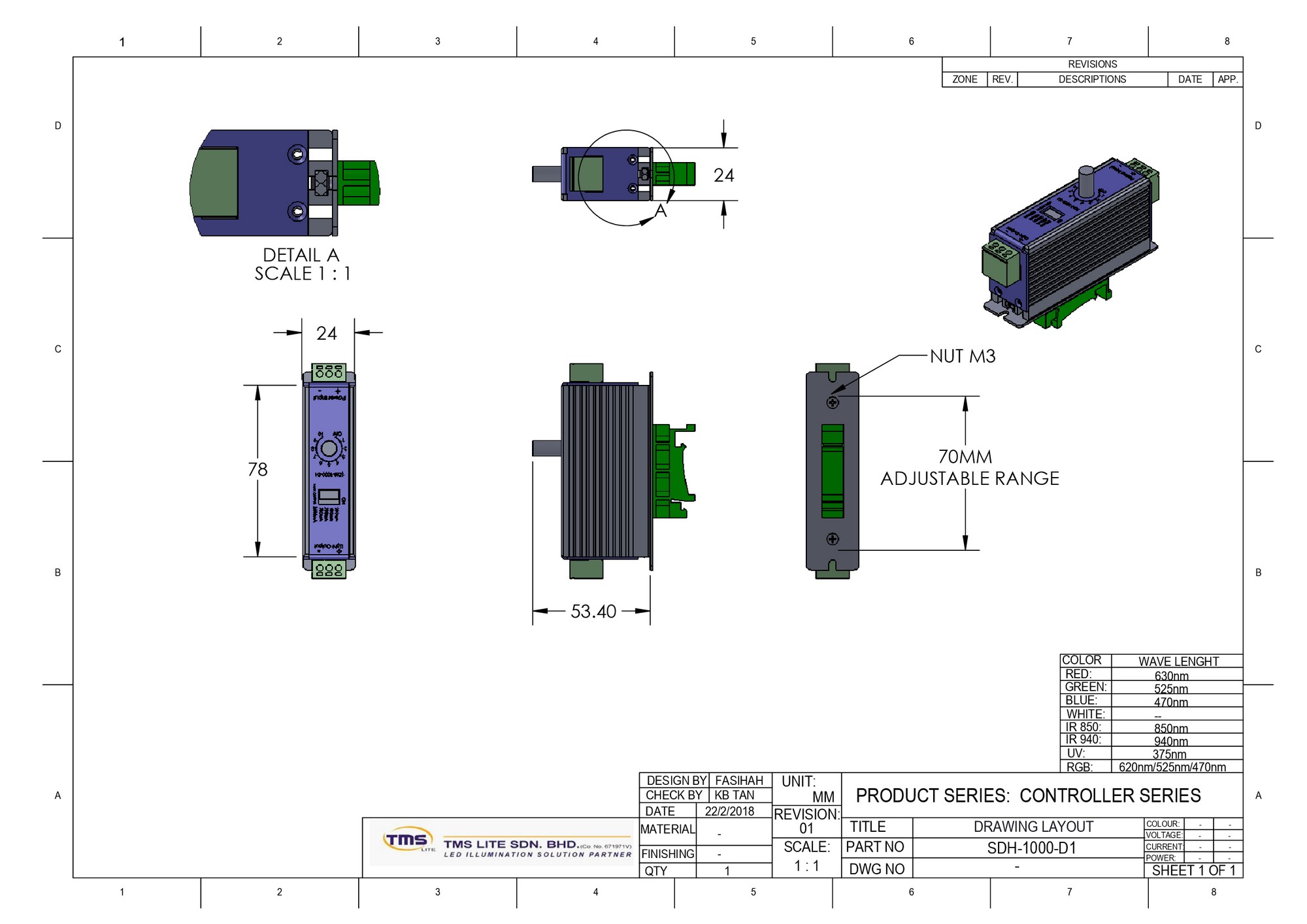

- Dimensions: 90 x 24 x 75 mm

Technical information

- Input voltage: 5V DC

- Output voltage / current: 5V, 1A


Alternate products for SDH-1000-D1
