LC-18-1CH-X10

LC-18-1CH-X10

Item No.: 167.2228

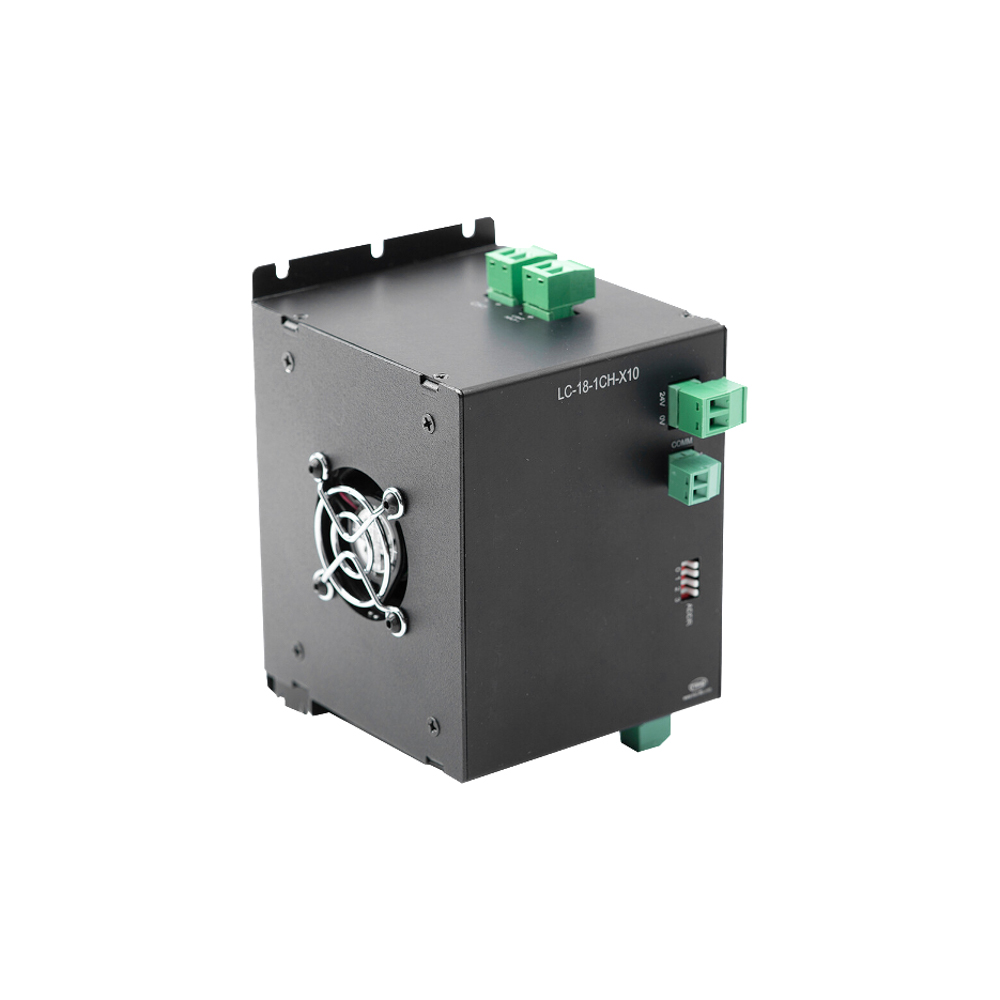

LC-18-1CH-X10 Machine Vision Digital Light Controller

LC-18-1CH-X10, LC SERIES lighting controller

The LC-18-1CH-X10 controller is a digital 1 channels slave controller with a trigger function.

This controller needs to be connected to the master unit LC-18-M.

User manual: Click here to download

998,00
(Price excluding VAT)
EAN
7435843596510
Output voltage
24V
Strobe (triggering)
Yes
Channels
1
Controller type
Digital
Series
LC

Specification:

- Operatie modus: Constant & Trigger & Strobe

- Extern input signal & Camera trigger output signal: 3.3V - 24V, > 5mA, Rising edge / Falling edge trigger

- Interface: TCPIP / RS232

- Channels: 2

- Connector: Terminal

- Dimensions: 103 x 93 x 83.6 mm

Technical information:

- Board input voltage: 24VDC

- Lighting input voltage: 5V / 12V / 24V

- Lighting output voltage: 5V / 12V / 24V

- Output current: Max 10A per channel
