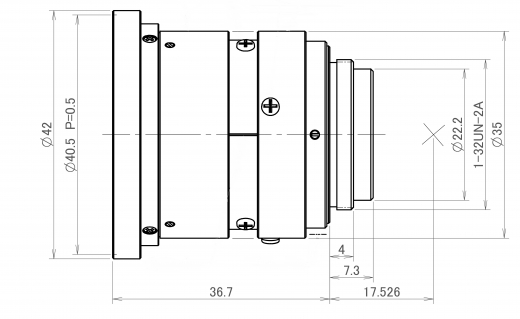

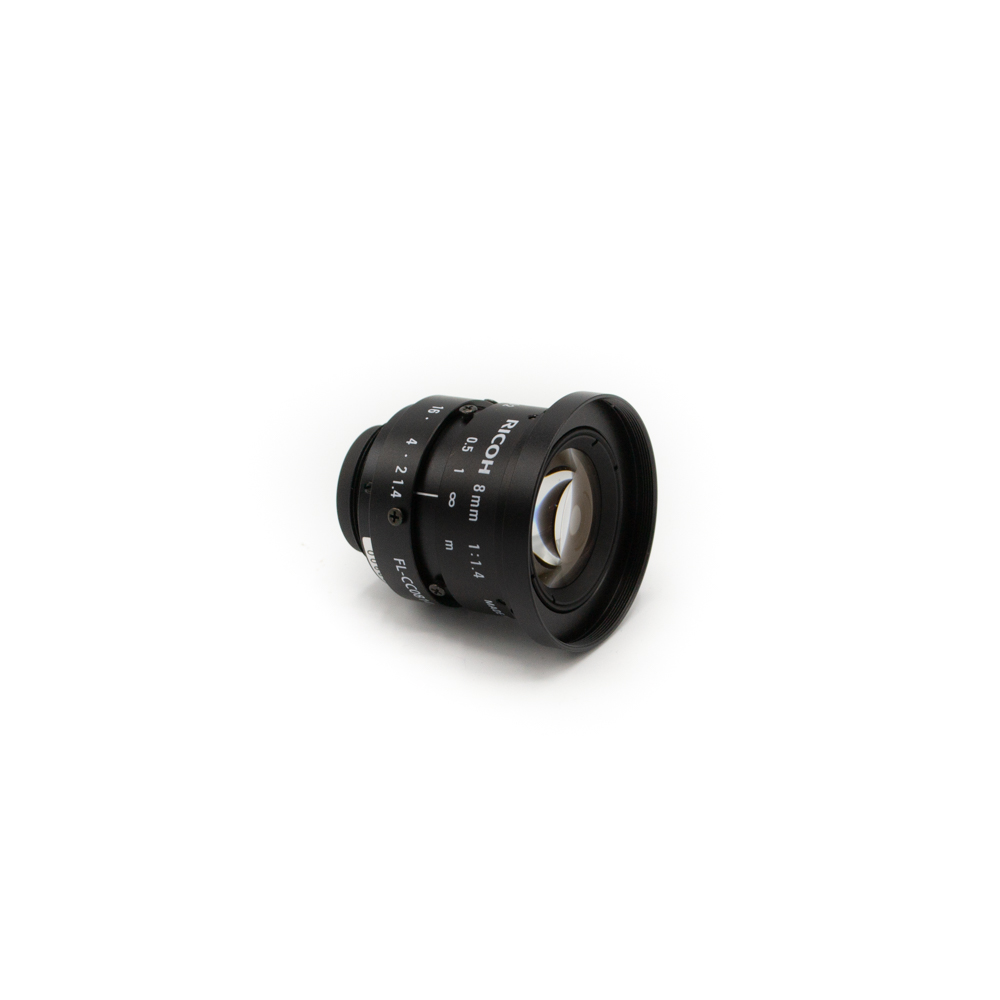

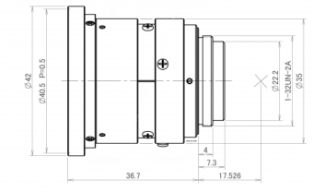

RICOH Lens FL-CC0814A-2M side view

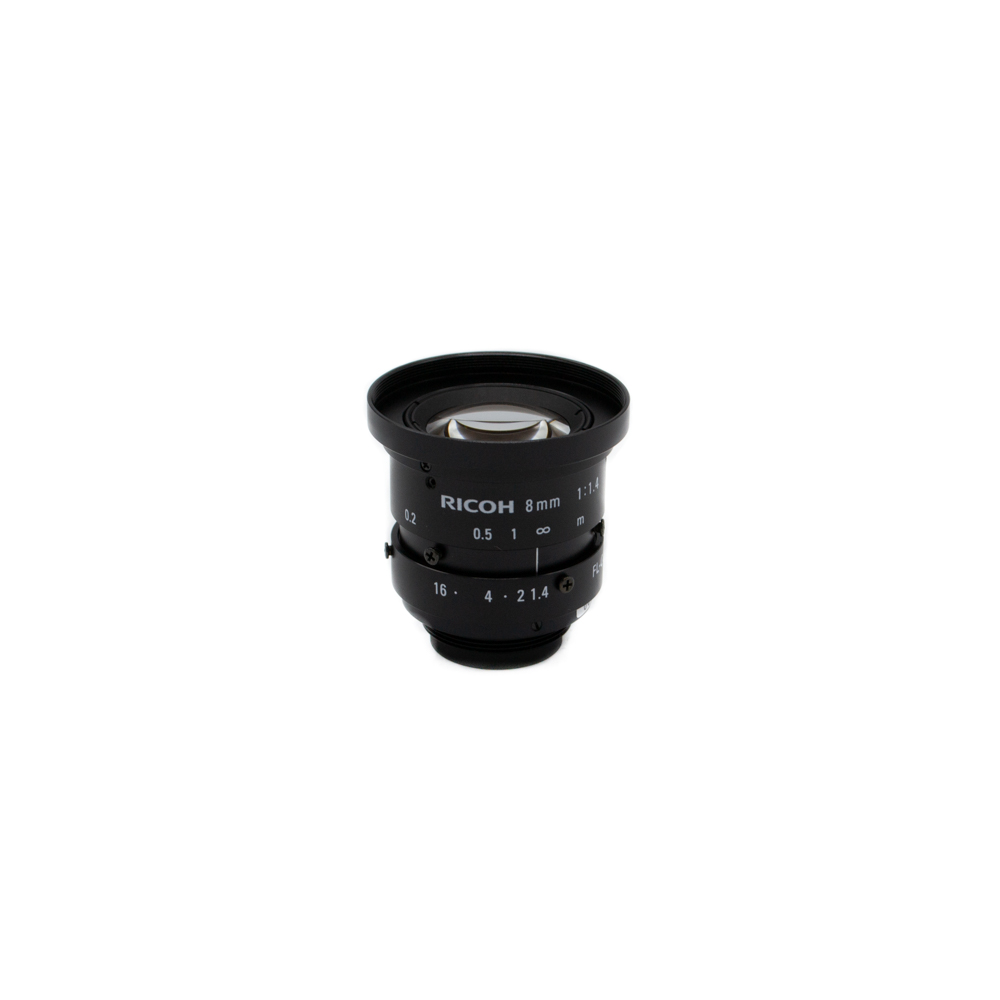

RICOH Lens FL-CC0814A-2M front view
RICOH FL-CC0814A-2M

RICOH FL-CC0814A-2M

Item No.: 214.0001

RICOH FL-CC0814A-2M 2.0 Mega Pixel Lens

2/3" Format C-mount lens with fixed focallength

Full technical specifications: Click here to download

167,00
(Price excluding VAT)
Brand
RICOH
Focal length
8mm
FNO
F 1.4
Sensor Type
2/3 Inch
Mount
C-Mount
Megapixel
2MP
Series
Fixed Focal

Specification

Focal length: 8 mm

Sensor Size: 2/3"

Min Pixel Pitch: 5.39 μm

Maximum aperture: F1.4~F16

Minimum Object Distance: 100 mm

Distortion: 0.02%-0.56%

Horizontal angle of view: 56.3°

Filter diameter: M40.5 x P0.5

Lens diameter: 42.0 mm

Lens length: 36.7 mm

C-mount
