RICOH FL-BC5014A-VG

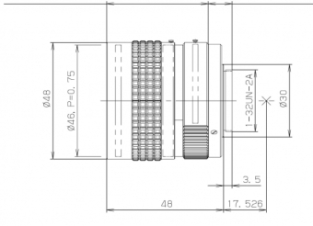

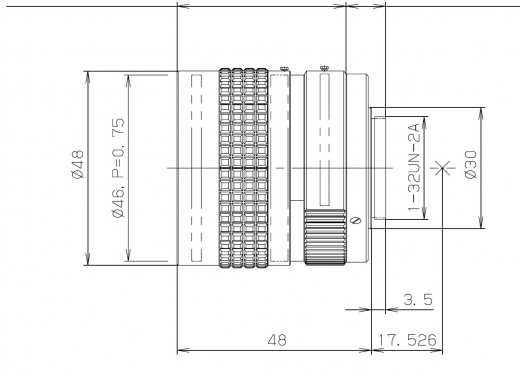

RICOH FL-BC5014A-VG drawing

RICOH FL-BC5014A-VG

Item No.: 214.0045

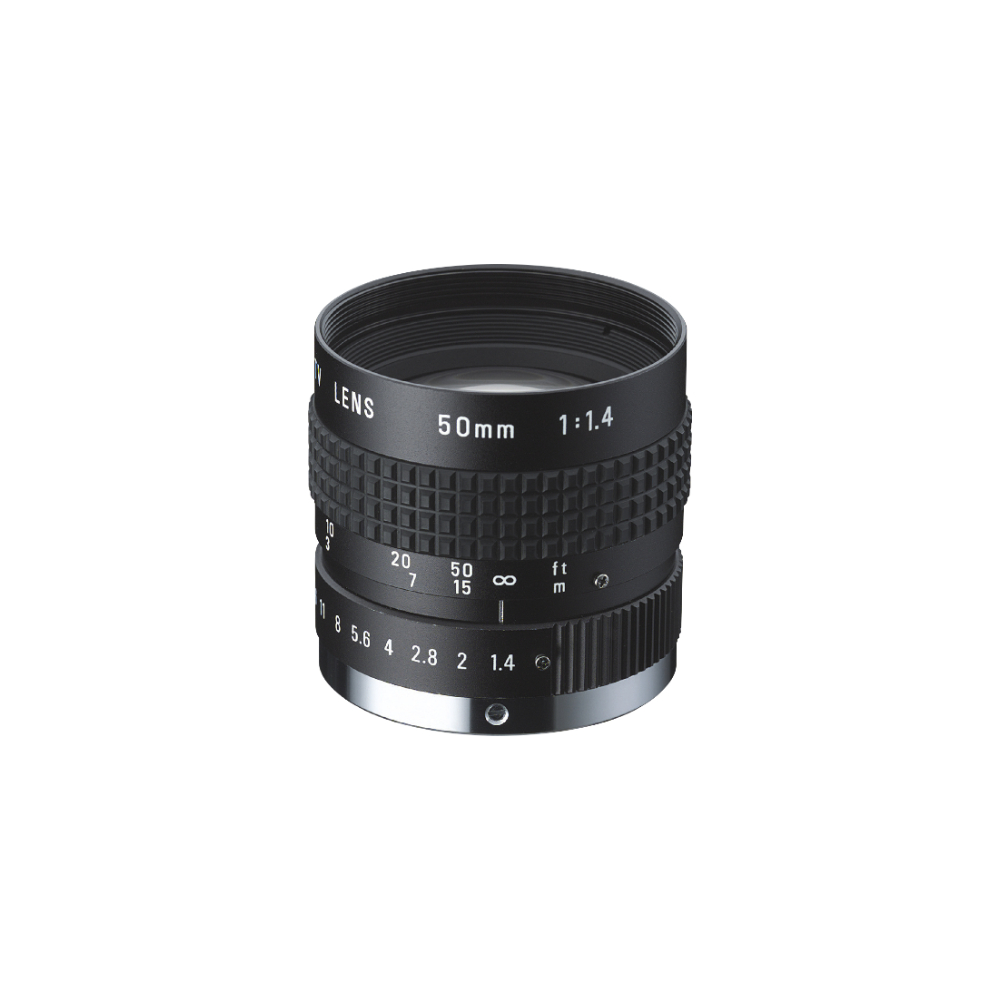

RICOH FL-BC5014A-VG VGA Lens

1" Format C-mount lens with fixed focallength

Full technical specifications: Click here to download

189,00
(Price excluding VAT)
EAN
7435857791772
Brand
RICOH
Focal length
50mm
FNO
F 1.4
Sensor Type
1 Inch
Mount
C-mount
Megapixel
VGA
Series
Fixed Focal

Specification

Focal length: 50 mm

Sensor Size: 1"

Min Pixel Pitch: 17.50 μm

Maximum aperture: F1.4~C

Minimum Object Distance: 1000 mm

Horizontal angle of view: 14.4°

Filter diameter: M46 x P0.75

Lens diameter: 48.0 mm

Lens length: 48.0 mm

C-mount
