RICOH FL-BC2518-VG

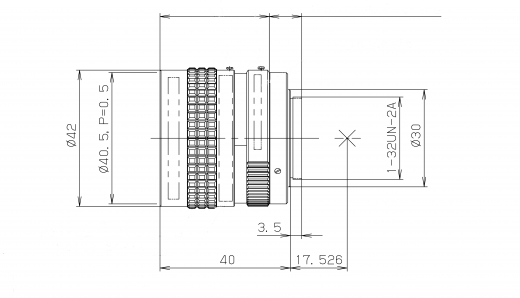

RICOH FL-BC2518-VG drawing

RICOH FL-BC2518-VG

Item No.: 214.0044

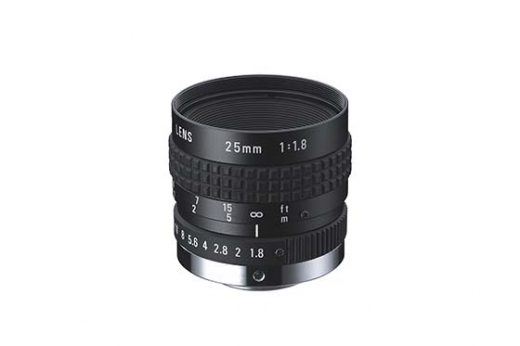

RICOH FL-BC2518-VG VGA Lens

1" Format C-mount lens with fixed focallength

Full technical specifications: Click here to download

140,00
(Price excluding VAT)
EAN
7435853784761
Brand
RICOH
Focal length
25mm
FNO
F 1.8
Sensor Type
1 Inch
Mount
C-mount
Megapixel
VGA
Series
Fixed Focal

Specification

Focal length: 25 mm

Sensor Size: 1"

Min Pixel Pitch: 17.50 μm

Maximum aperture: F1.8~C

Minimum Object Distance: 600 mm

Horizontal angle of view: 28.2°

Filter diameter: 40.5 mm

Lens diameter: 42.0 mm

Lens length: 40.0 mm

C-mount
