RICOH FL-BC1220-9M

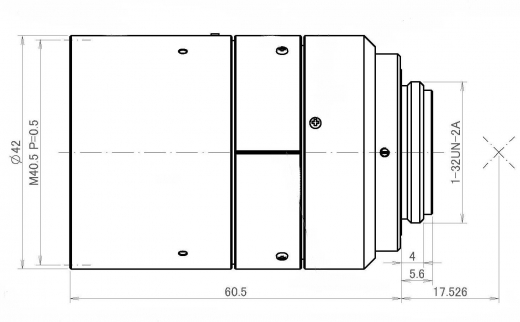

RICOH FL-BC1220-9M drawing

RICOH FL-BC1220-9M

Item No.: 214.0022

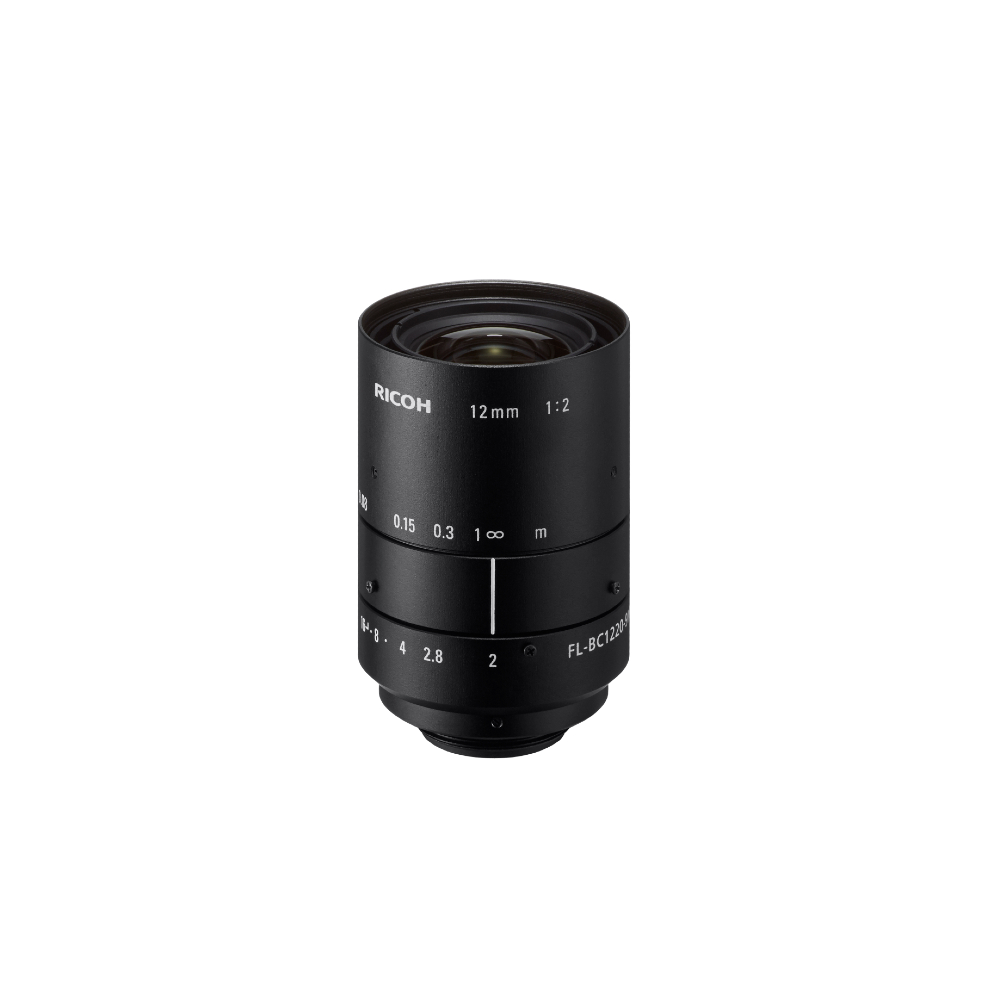

RICOH FL-BC1220-9M 9.0 Mega Pixel Lens

1" Format C-mount lens with fixed focallength

Full technical specifications: Click here to download

549,00
(Price excluding VAT)
EAN
7435847359364
Brand
RICOH
Focal length
12mm
FNO
F 2.0
Sensor Type
1 Inch
Mount
C-mount
Megapixel
9MP
Series
Fixed Focal

Specification

Focal length: 12 mm

Sensor Size: 1"

Min Pixel Pitch: 3.45 μm

Maximum aperture: F2.0~F16

Minimum Object Distance: 80 mm

Distortion: <2%

Horizontal angle of view: 57.0°

Filter diameter: M40.5 x P0.5

Lens diameter: 42.0 mm

Lens length: 60.5 mm

C-mount
