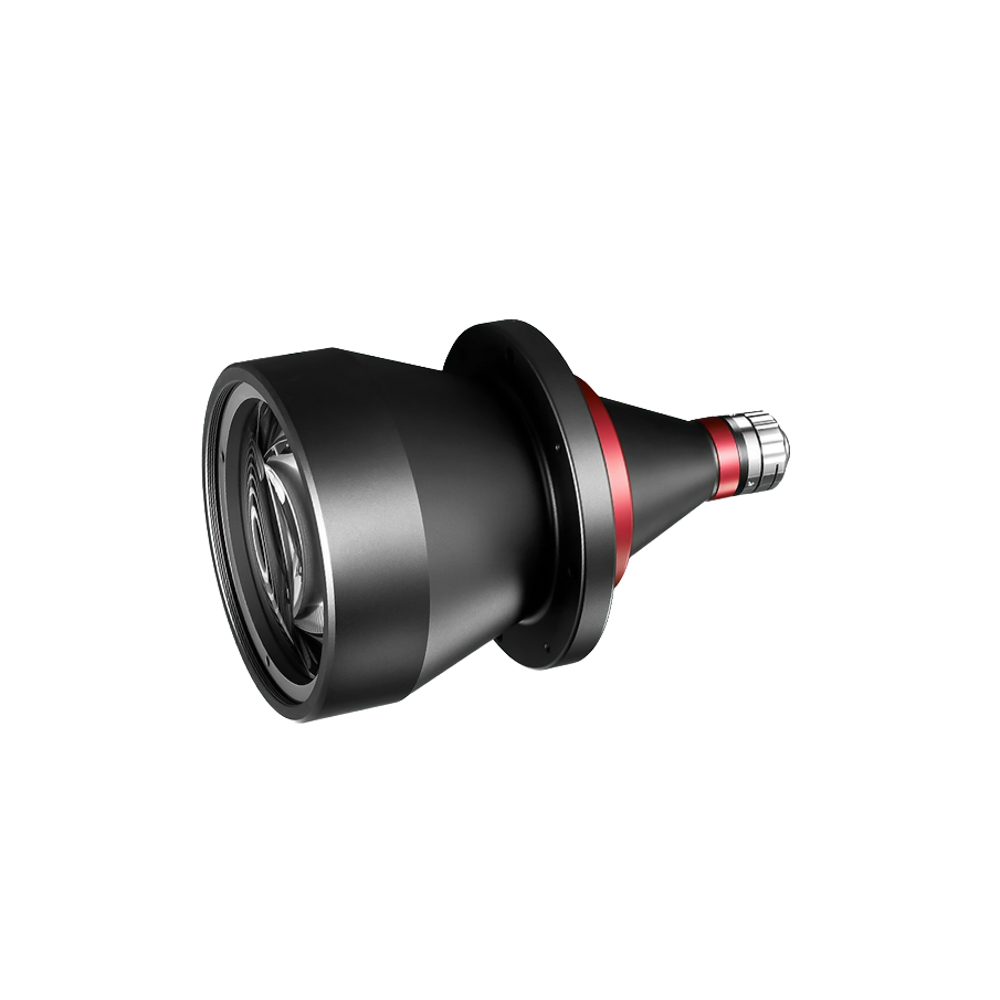

Coolens DTCM230-120H front view

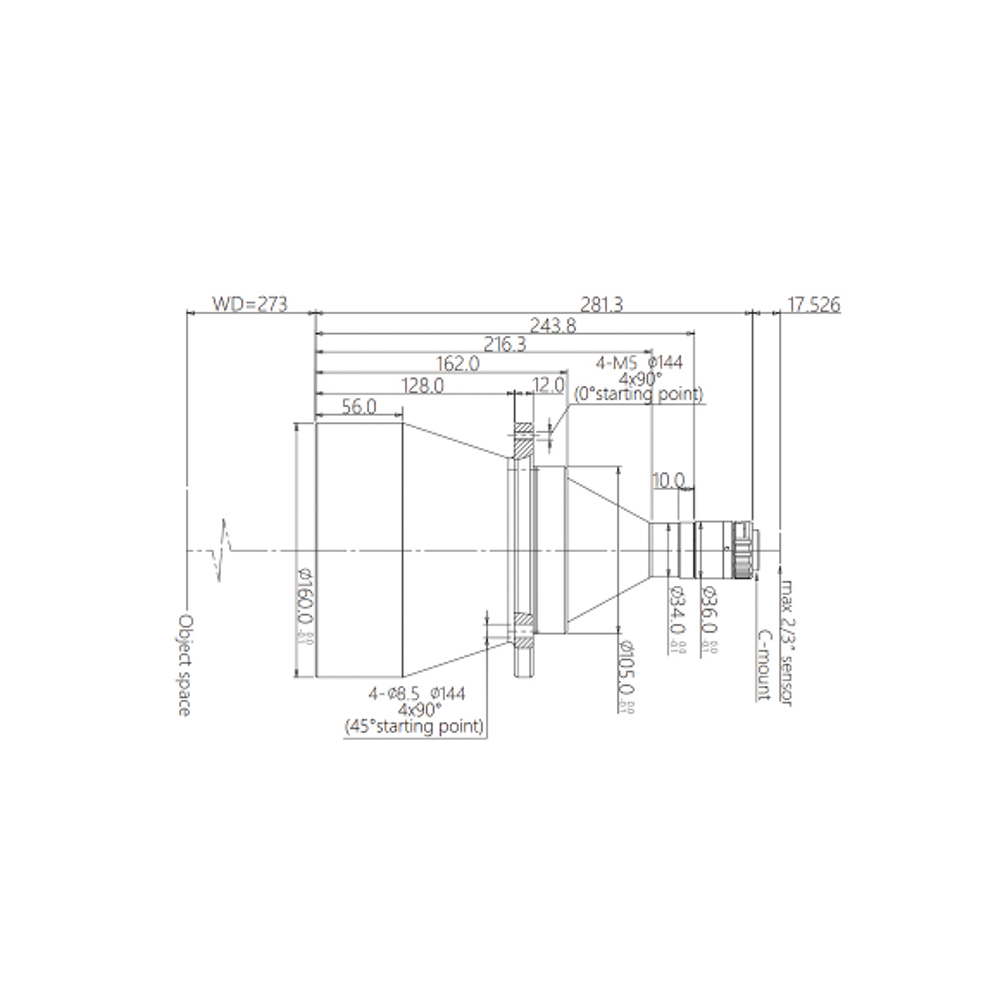

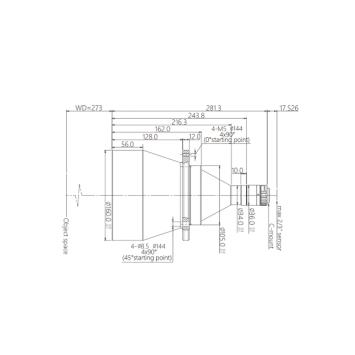

Coolens DTCM230-120H drawing

DTCM230-120H-AL

Item No.: 238.0076

DTCM230-120H-AL

Coolens DTCM230-120H-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 120 mm, Ultra Resolution Bi-Telecentric Lens

• Up to 5 MegaPixels, 3.45 μm Pixel Size Sensors

• 2/3" Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.095

1.831,00
(Price excluding VAT)
EAN
7435857687655
Brand
Coolens
FNO
F 4.9
Sensor Type
2/3 Inch
Mount
C-mount
Megapixel
5MP
Series
Telecentric
FOV
120 mm

Specification

FOV: 120 mm ⌀

Max Sensor Size: 11.4 mm (2/3")

Typical Telecntricity: <0.1

MTF30: >185 lp/mm

I/O length: 572 +/- 5 mm

Dept of Field: +/- 48.7 (@F11)

Length: 281.3 mm

Magnification: (x) 0.095

Working Distance: 273 +/- 5 mm

Aperture: F4.9

Typical Distortion: max <0.1%

C-mount
