Coolens DTCM125-42

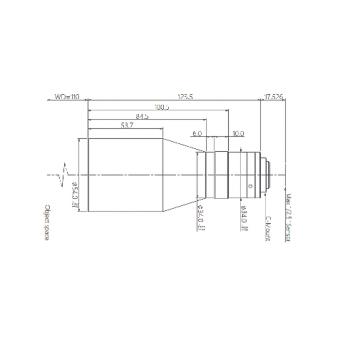

Coolens DTCM125-42 drawing

DTCM125-42

Item No.: 238.0007

DTCM125-42

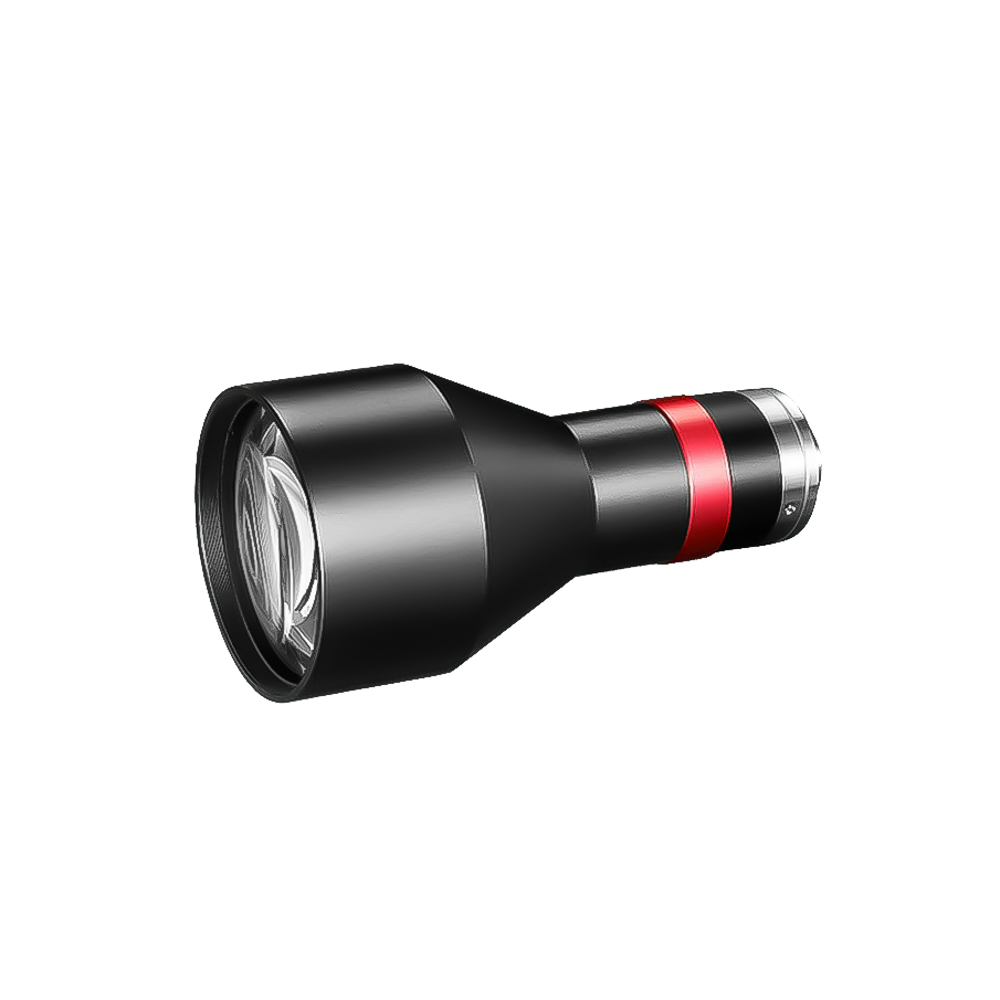

Coolens DTCM125-42 - C-Mount Bi-Telecentric Lens

• FOV ⌀ 42mm, Ultra Resolution Bi-Telecentric Lens

• 1/2.5″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.171

677,00
(Price excluding VAT)
EAN
7435848267217
Brand
Coolens
FNO
F 4.2
Sensor Type
1/2.5 Inch
Mount
C-mount
Series
Telecentric
FOV
42 mm

Specification

FOV: 42 mm ⌀

Max Sensor Size: 7.2 mm (1/2.5")

Typical Telecntricity: <0.1

MTF30: >200 lp/mm

I/O length: 244 +/-3 mm

Dept of Field: +/-15.0 (@F11)

Length: 108.9 mm

Magnification: (x) 0.171

Working Distance: 118 +/- 3 mm

Aperture: F4.2

Typical Distortion: max <0.1%

C-mount
