DTCM125-110-AL

Name: DTCM125-110-AL
Brand: Coolens
Price: 1603.00 EUR
Availability: InStock

Item No.: 238.0015

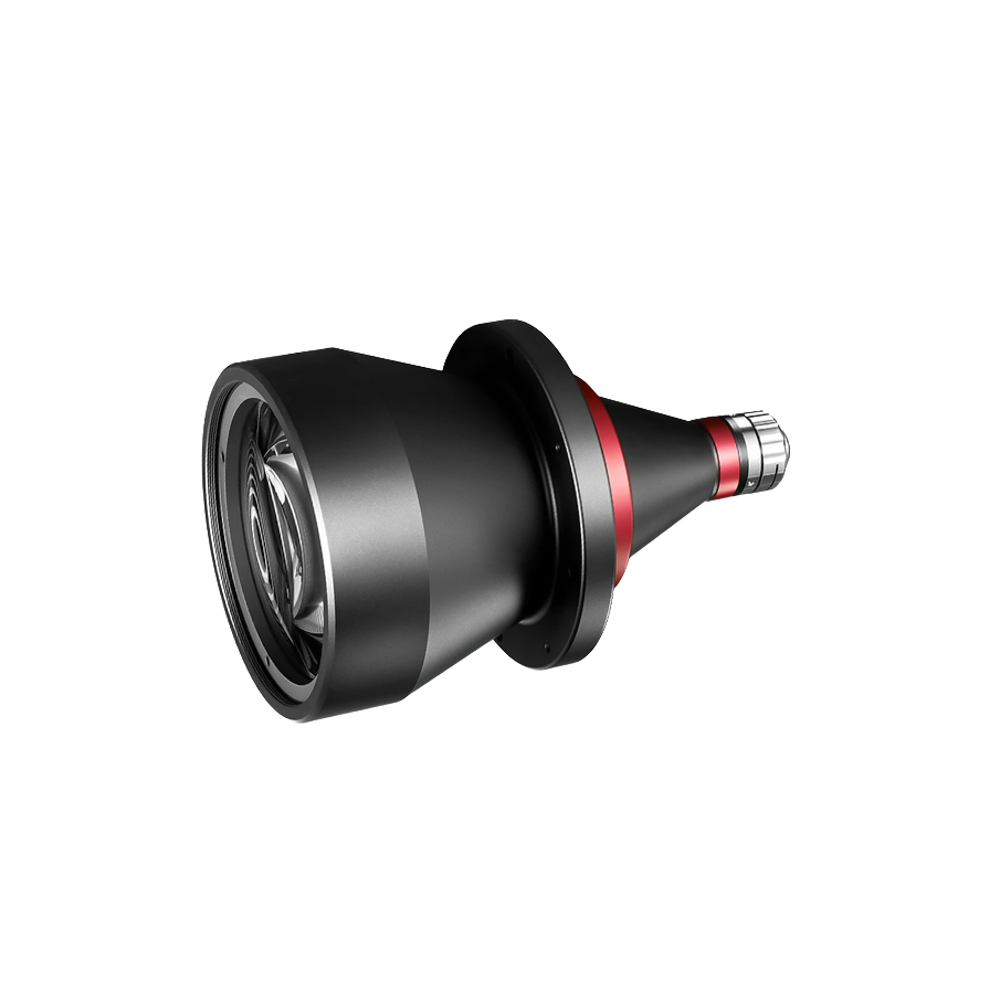

Coolens DTCM125-110-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 110 mm, Ultra Resolution Bi-Telecentric Lens

• 1/2.5″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.066

€1.603,00

(Price excluding VAT)

EAN

7435848075096

SKU

Brand

Coolens

FNO

F 4.2

Sensor Type

1/2.5 Inch

Mount

C-mount

Series

Telecentric

FOV

110 mm

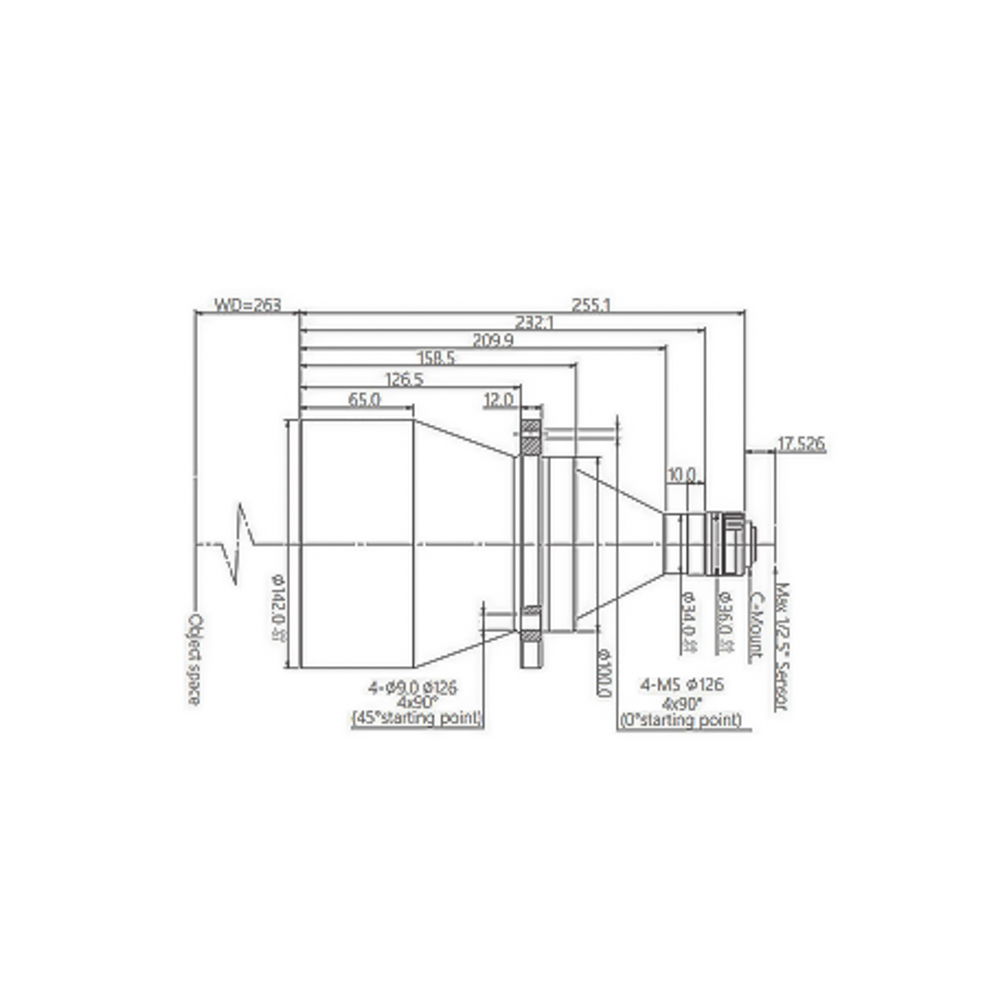

Specification

FOV: 110 mm ⌀

Max Sensor Size: 7.2 mm (1/2.5")

Typical Telecntricity: <0.1

MTF30: >210 lp/mm

I/O length: 536 +/- 4 mm

Dept of Field: +/- 101 (@F11)

Length: 255.1 mm

Magnification: (x) 0.066

Working Distance: 263 +/- 4 mm

Aperture: F4.2

Typical Distortion: max <0.1%

C-mount
