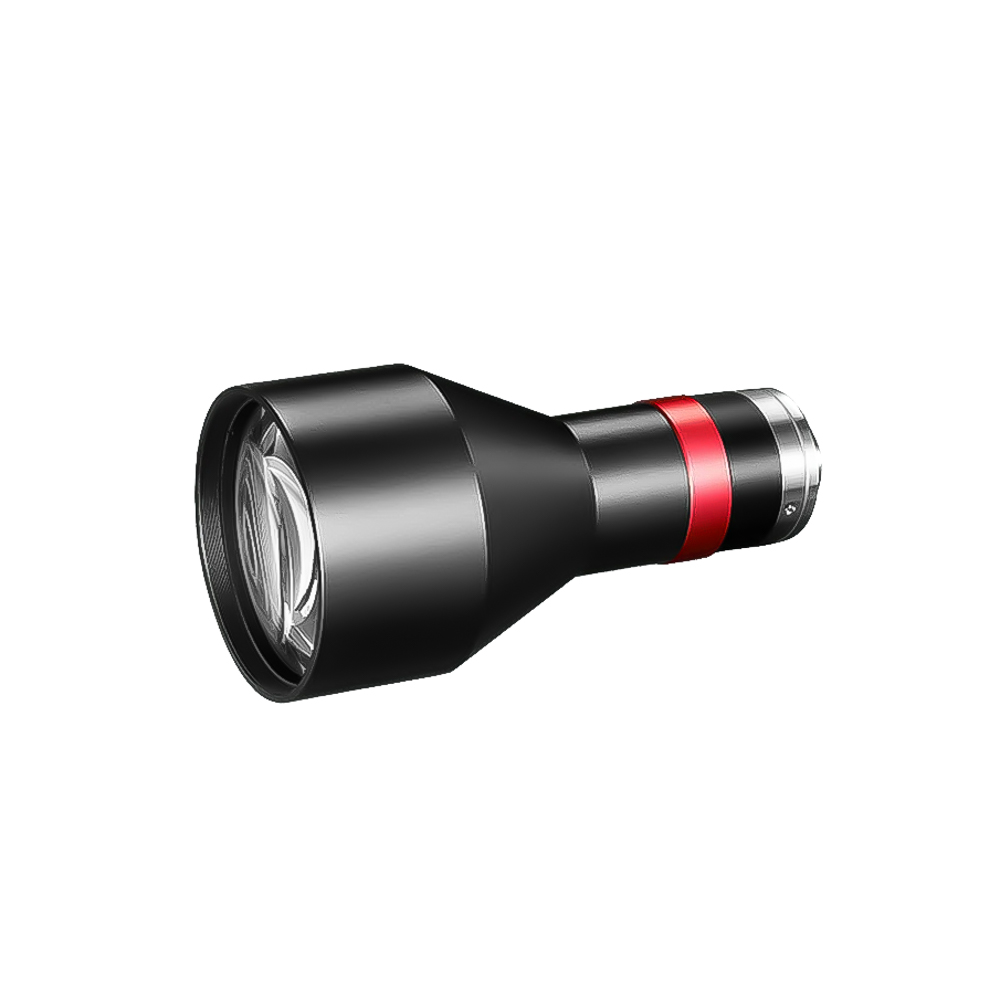

Coolens DTCM118-42 front view

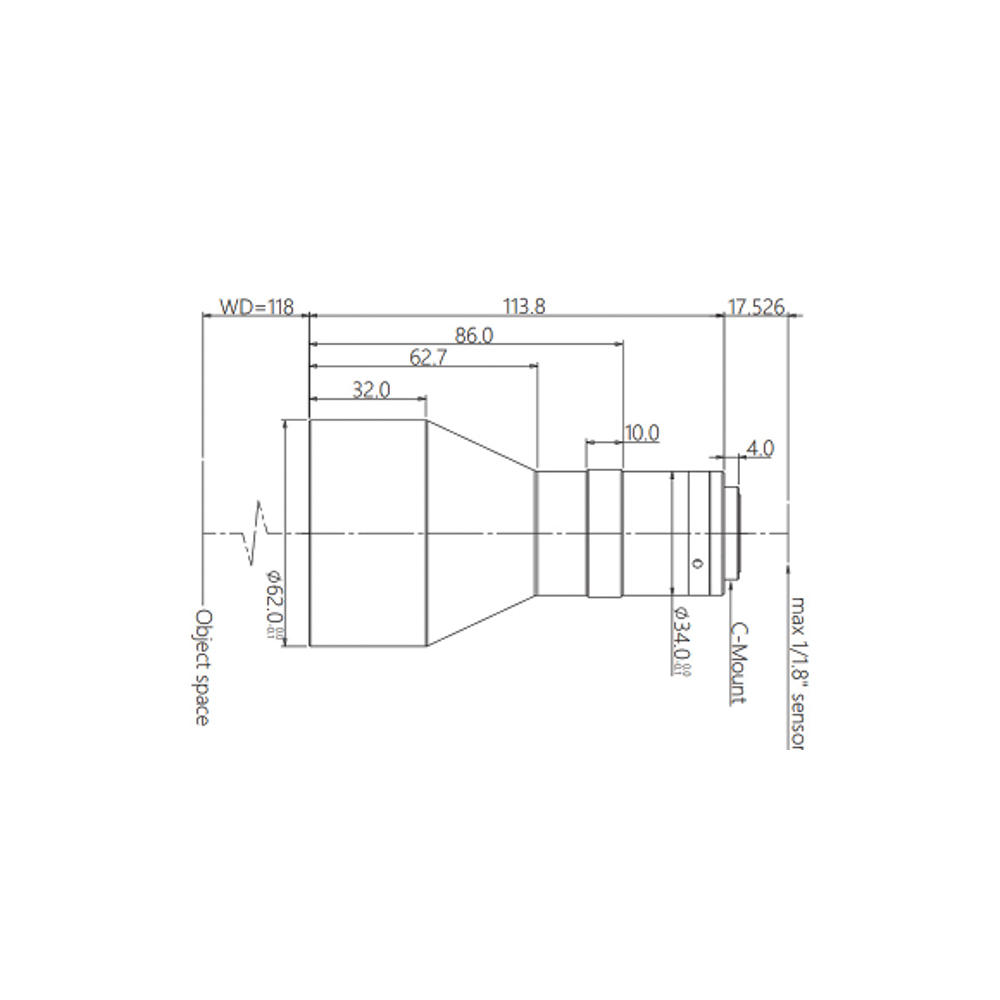

Coolens DTCM118-42 drawing

DTCM118-42

Item No.: 238.0047

DTCM118-42

Coolens DTCM118-42 - C-Mount Bi-Telecentric Lens

• FOV ⌀ 42mm, Ultra Resolution Bi-Telecentric Lens

• Up to 6 MegaPixels, 2.4 μm Pixel Size Sensors

• 1/1.8″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.214

677,00
(Price excluding VAT)
EAN
7435844287219
Brand
Coolens
FNO
F 4.6
Sensor Type
1/1.8 Inch
Mount
C-mount
Megapixel
6MP
Series
Telecentric
FOV
42 mm

Specification

FOV: 42 mm ⌀

Max Sensor Size: 9.0 mm (1/1.8")

Typical Telecntricity: <0.1

MTF30: >195 lp/mm

I/O length: 249 +/- 3 mm

Dept of Field: +/- 9.6 (@F11)

Length: 113.8 mm

Magnification: (x) 0.214

Working Distance: 118 +/- 3 mm

Aperture: F4.6

Typical Distortion: max <0.1%

C-mount
