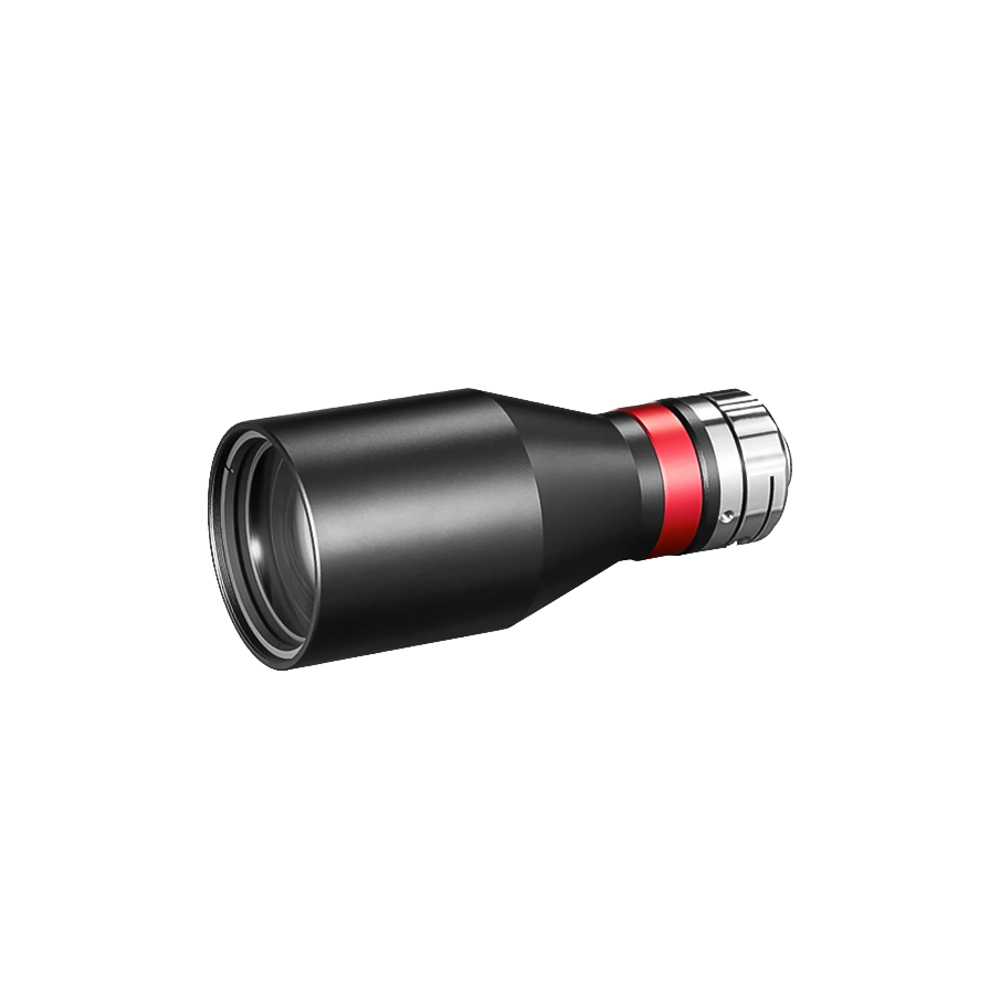

Coolens DTCM118-36 front view

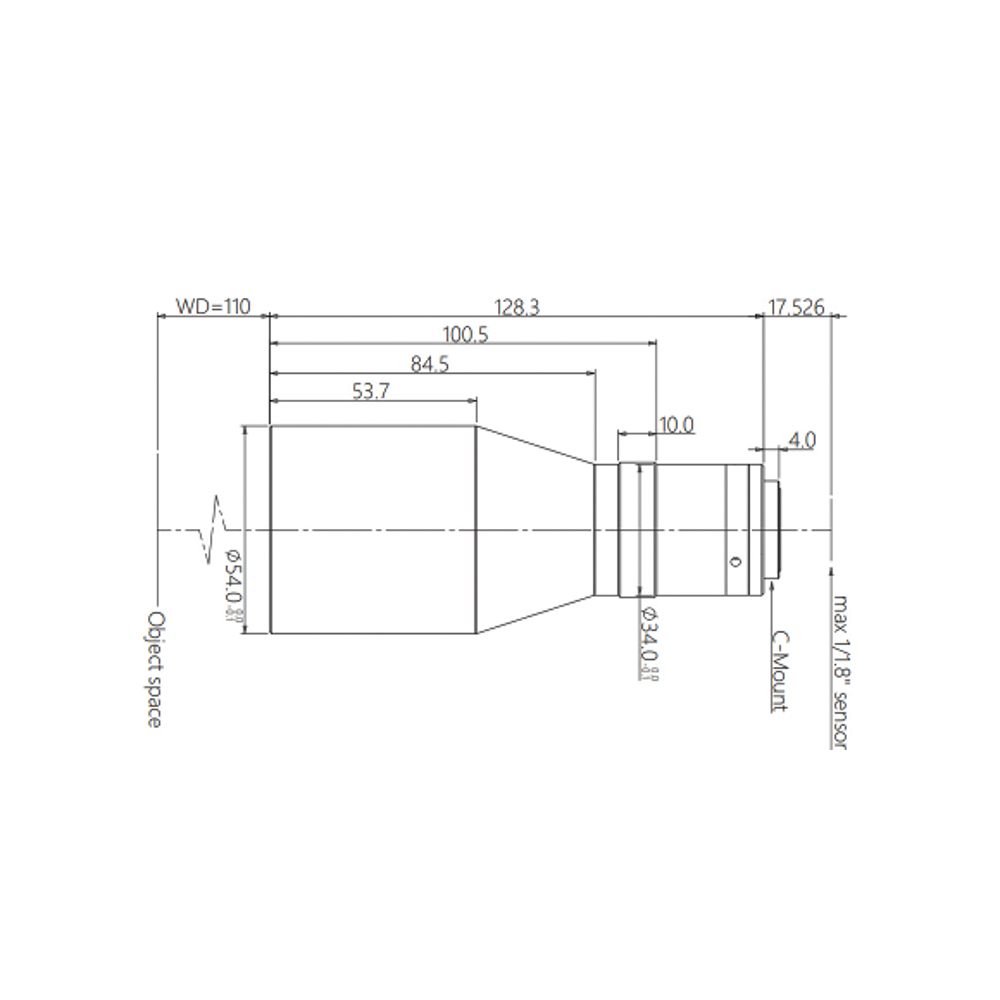

Coolens DTCM118-36 drawing

DTCM118-36

Item No.: 238.0046

DTCM118-36

Coolens DTCM118-36 - C-Mount Bi-Telecentric Lens

• FOV ⌀ 36mm, Ultra Resolution Bi-Telecentric Lens

• Up to 6 MegaPixels, 2.4 μm Pixel Size Sensors

• 1/1.8″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.250

641,00
(Price excluding VAT)
EAN
7435848763771
Brand
Coolens
FNO
F 4.6
Sensor Type
1/1.8 Inch
Mount
C-mount
Megapixel
6MP
Series
Telecentric
FOV
36 mm

Specification

FOV: 36 mm ⌀

Max Sensor Size: 9.0 mm (1/1.8")

Typical Telecntricity: <0.1

MTF30: >180 lp/mm

I/O length: 256 +/-2 mm

Dept of Field: +/- 7.0 (@F11)

Length: 128.3 mm

Magnification: (x) 0.250

Working Distance: 110 +/-2 mm

Aperture: F4.6

Typical Distortion: max <0.1%

C-mount
