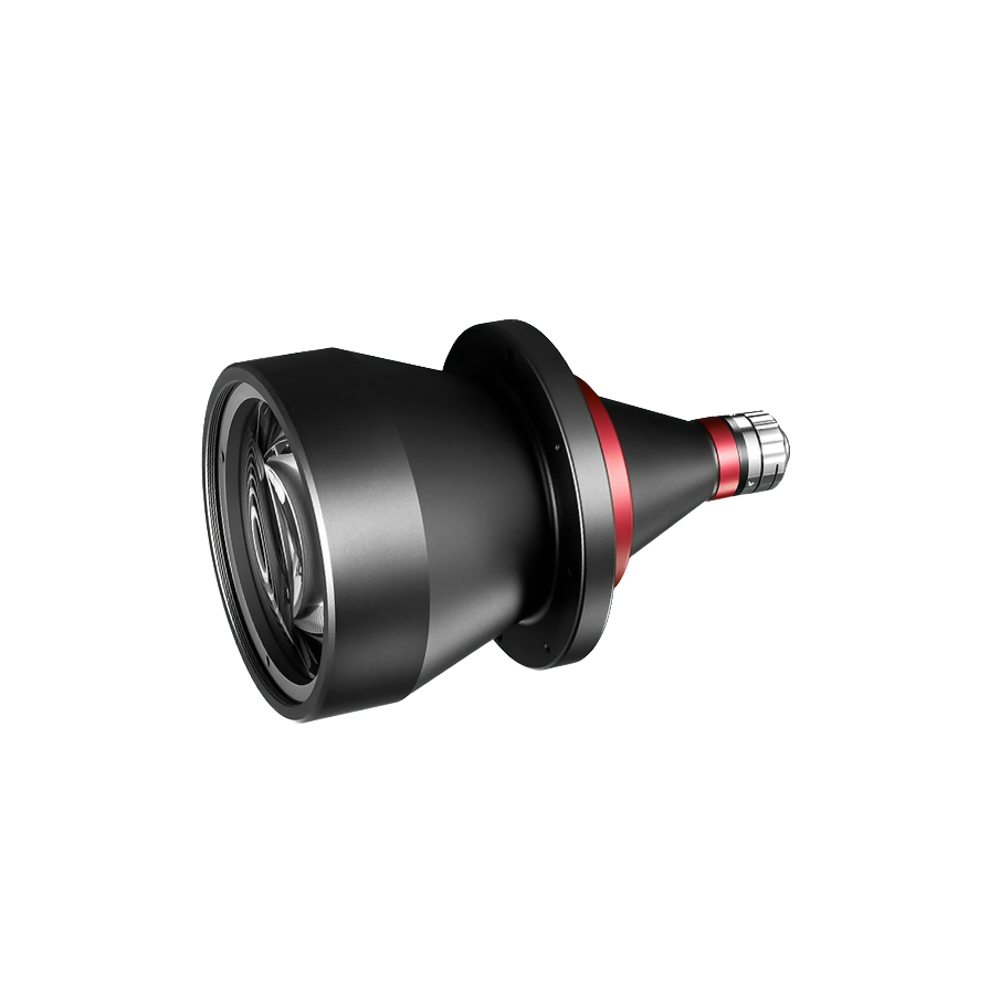

Coolens DTCM118-120H front view

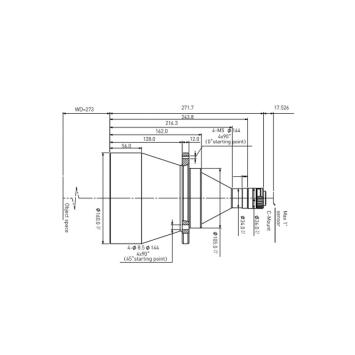

Coolens DTCM118-120H drawing

DTCM118-120H-AL

Item No.: 238.0056

DTCM118-120H-AL

Coolens DTCM118-120H-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 120mm, Ultra Resolution Bi-Telecentric Lens

• Up to 6 MegaPixels, 2.4 μm Pixel Size Sensors

• 1/1.8″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.075

1.783,00
(Price excluding VAT)
EAN
7435853448403
Brand
Coolens
FNO
F 4.5
Sensor Type
1/1.8 Inch
Mount
C-mount
Megapixel
6MP
Series
Telecentric
FOV
120 mm

Specification

FOV: 120 mm ⌀

Max Sensor Size: 9.0 mm (1/1.8")

Typical Telecntricity: <0.1

MTF30: >200 lp/mm

I/O length: 562 +/- 5 mm

Dept of Field: +/- 78.2 (@F11)

Length: 271.7 mm

Magnification: (x) 0.075

Working Distance: 273 +/- 5 mm

Aperture: F4.5

Typical Distortion: max <0.1%

C-mount
