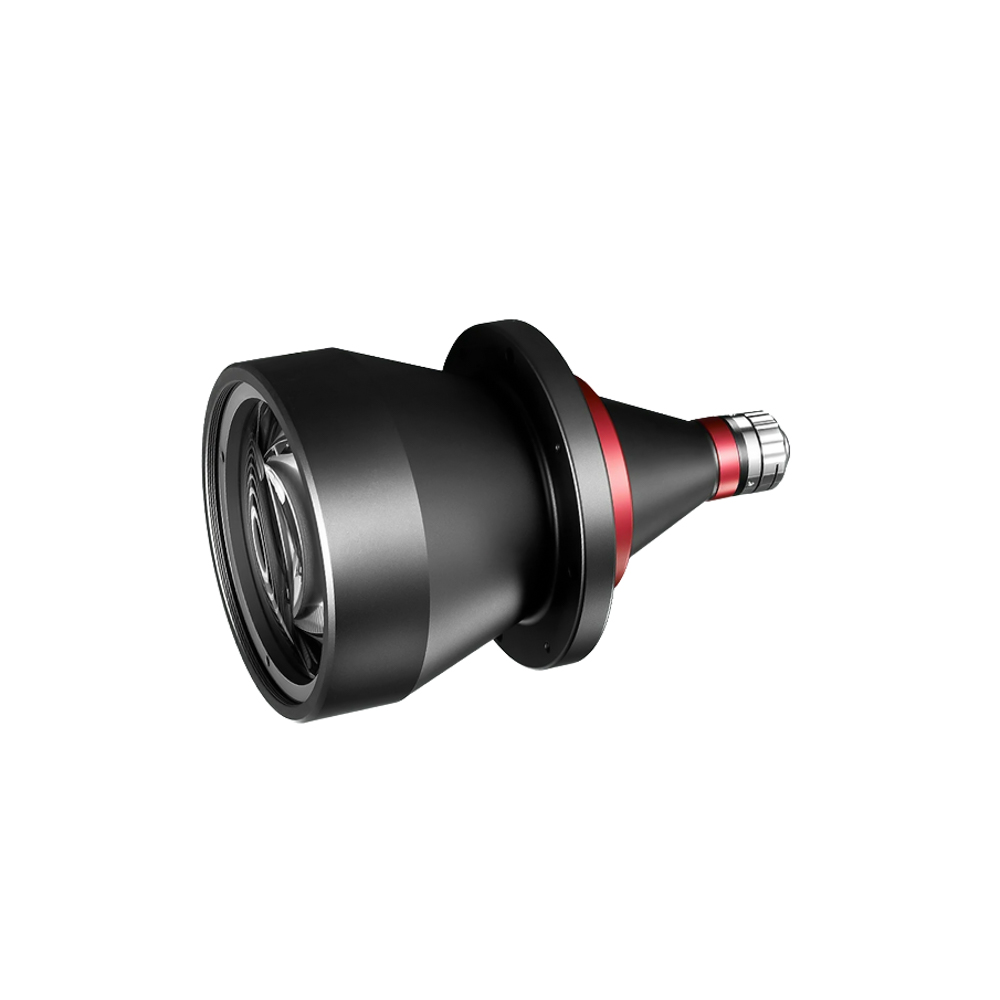

Coolens DTCM118-100H front view

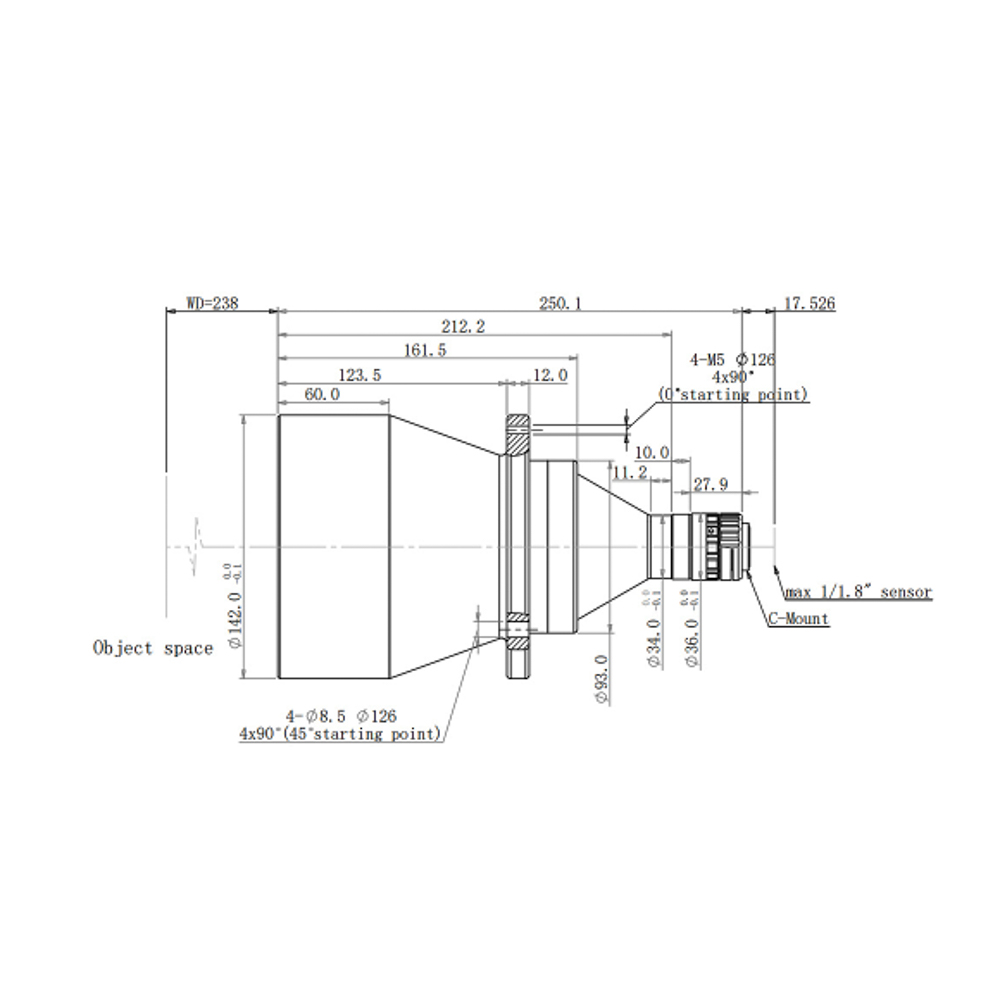

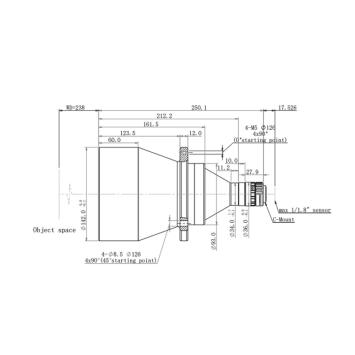

Coolens DTCM118-100H drawing

DTCM118-100H-AL

Item No.: 238.0054

DTCM118-100H-AL

Coolens DTCM118-100H-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 100mm, Ultra Resolution Bi-Telecentric Lens

• Up to 6 MegaPixels, 2.4 μm Pixel Size Sensors

• 1/1.8″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.090

1.423,00
(Price excluding VAT)
EAN
7435847732792
Brand
Coolens
FNO
F 4.6
Sensor Type
1/1.8 Inch
Mount
C-mount
Megapixel
6MP
Series
Telecentric
FOV
100 mm

Specification

FOV: 100 mm ⌀

Max Sensor Size: 9.0 mm (1/1.8")

Typical Telecntricity: <0.1

MTF30: >200 lp/mm

I/O length: 506 +/- 4 mm

Dept of Field: +/- 54.3 (@F11)

Length: 250.1 mm

Magnification: (x) 0.090

Working Distance: 238 +/- 4 mm

Aperture: F4.6

Typical Distortion: max <0.1%

C-mount
