DTCM111-72-AL

Name: DTCM111-72-AL
Brand: Coolens
Price: 1279.00 EUR
Availability: InStock

Item No.: 238.0111

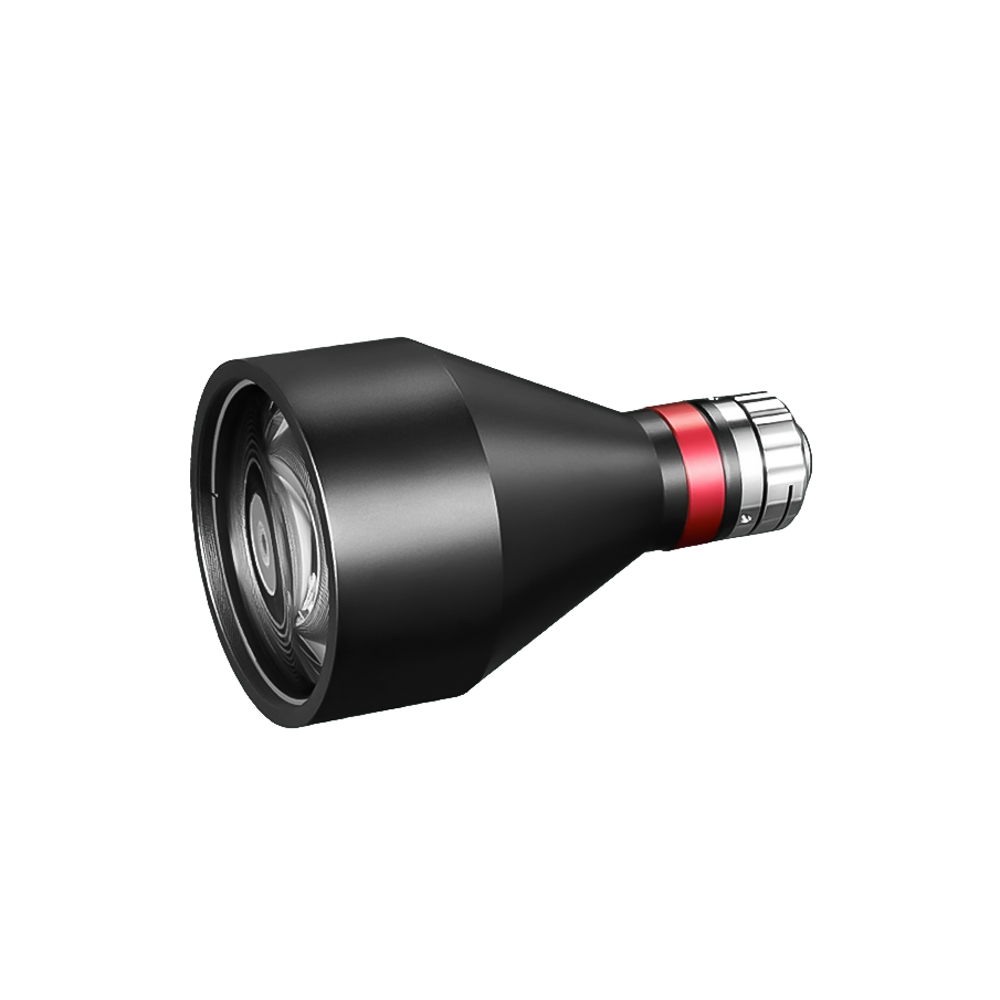

Coolens DTCM111-72-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 72mm, Ultra Resolution Bi-Telecentric Lens

• Up to 25 MegaPixels, 2.5 μm Pixel Size Sensors

• 1.1" Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.256

€1.279,00

(Price excluding VAT)

EAN

7435854036043

SKU

Brand

Coolens

FNO

F 6.2

Sensor Type

1.1 Inch

Mount

C-mount

Megapixel

25MP

Series

Telecentric

FOV

72 mm

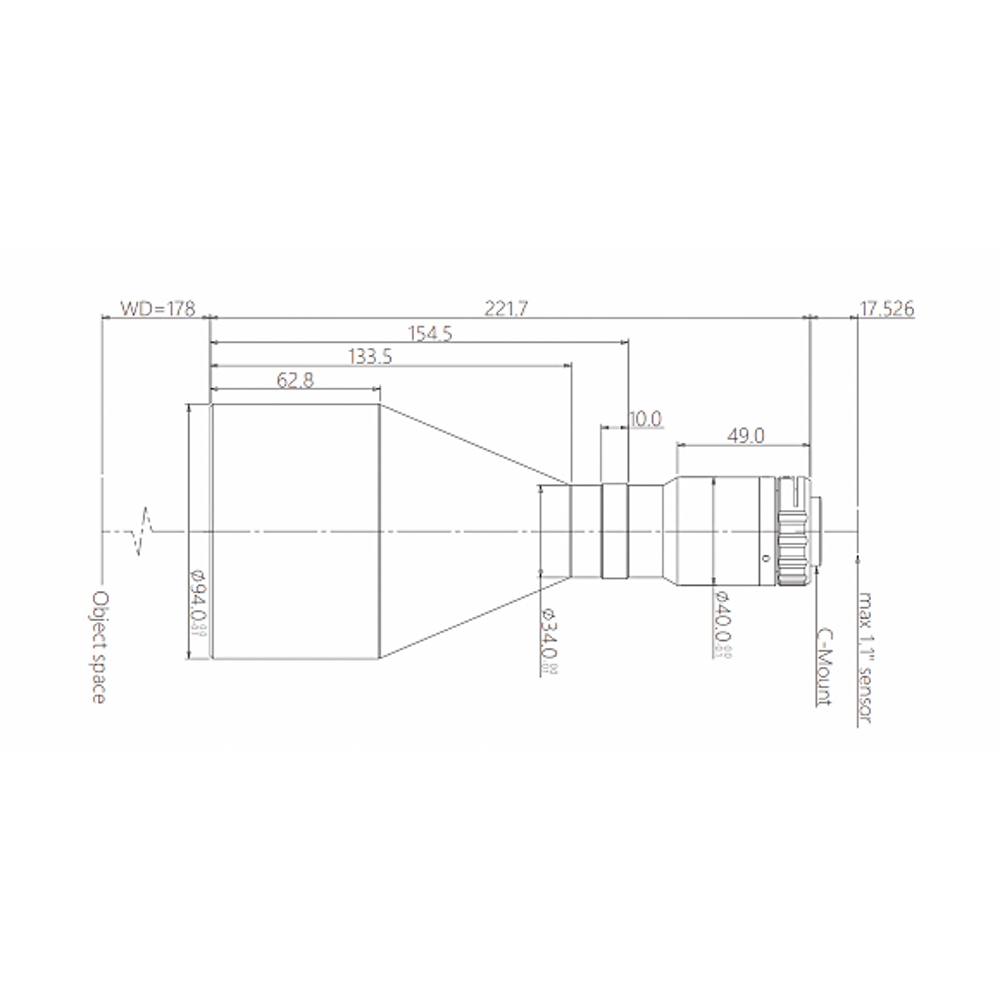

Specification

FOV: 72 mm ⌀

Max Sensor Size: 18.4 mm (1.1")

Typical Telecntricity: <0.1

MTF30: >145 lp/mm

I/O length: 417 +/- 3 mm

Dept of Field: +/- 6.7 (@F11)

Length: 221.7 mm

Magnification: (x) 0.256

Working Distance: 178 +/- 3 mm

Aperture: F6.2

Typical Distortion: max <0.1%

C-mount
