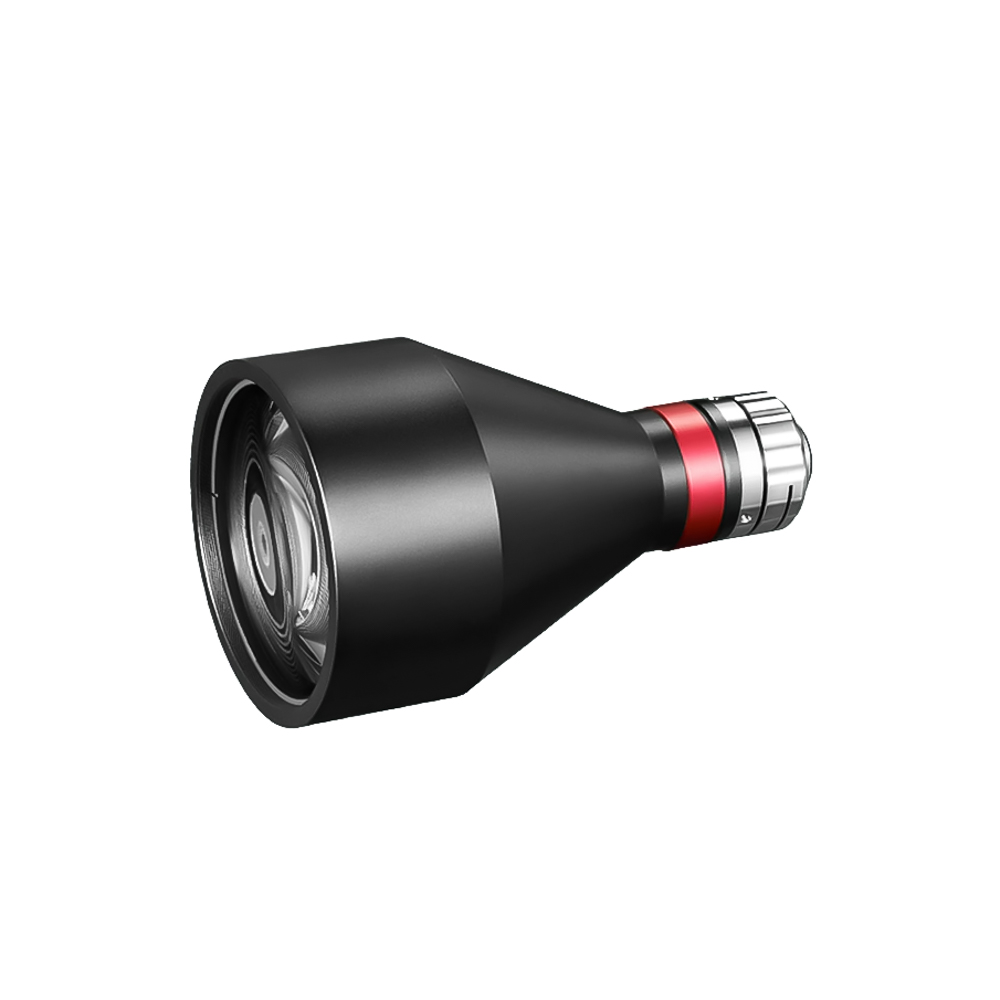

Coolens DTCM111-64H front view

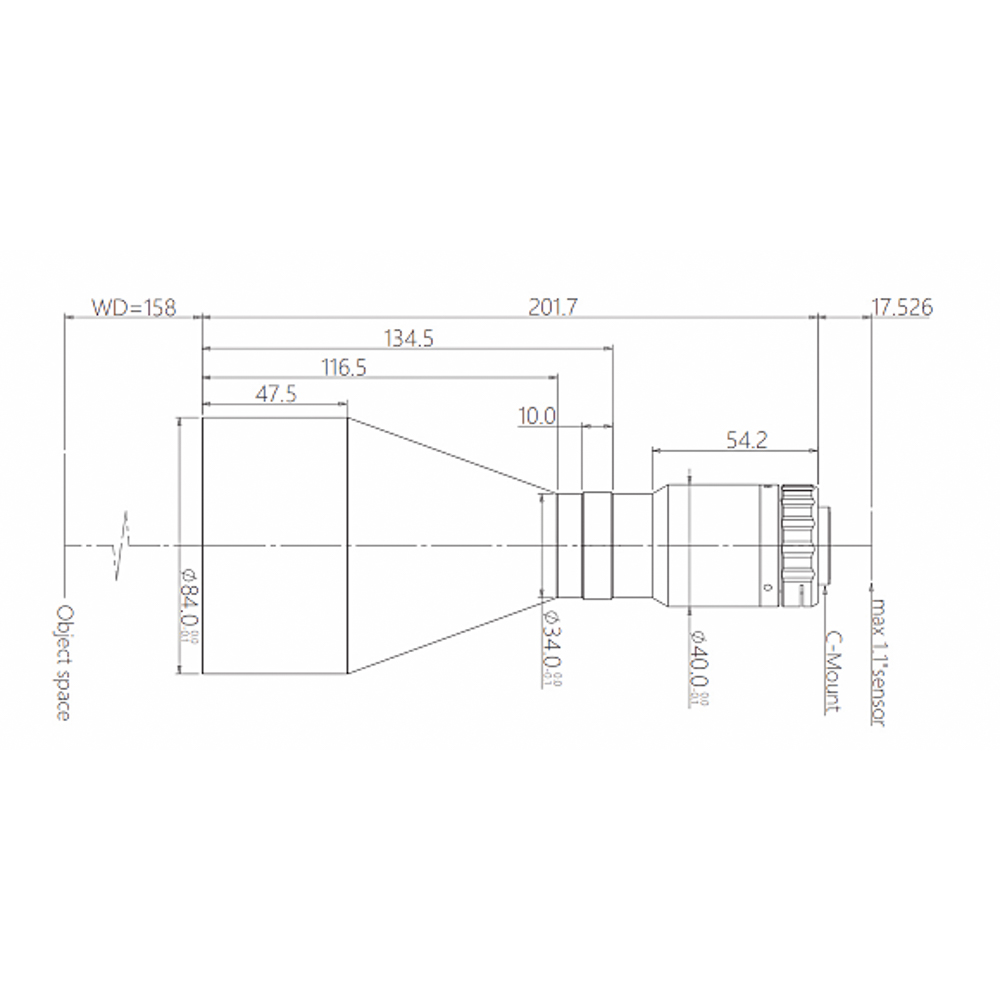

Coolens DTCM111-64H drawing

DTCM111-64H-AL

Item No.: 238.0110

DTCM111-64H-AL

Coolens DTCM111-64H-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 64mm, Ultra Resolution Bi-Telecentric Lens

• Up to 25 MegaPixels, 2.5 μm Pixel Size Sensors

• 1.1" Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.288

1.122,00
(Price excluding VAT)
EAN
7435849016029
Brand
Coolens
FNO
F 6.2
Sensor Type
1.1 Inch
Mount
C-mount
Megapixel
25MP
Series
Telecentric
FOV
64 mm

Specification

FOV: 64 mm ⌀

Max Sensor Size: 18.4 mm (1.1")

Typical Telecntricity: <0.1

MTF30: >150 lp/mm

I/O length: 377 +/- 3 mm

Dept of Field: +/- 7.8 (@F16)

Length: 201.7 mm

Magnification: (x) 0.288

Working Distance: 158 +/- 3 mm

Aperture: F6.2

Typical Distortion: max <0.1%

C-mount

Alternate products for DTCM111-64H-AL
