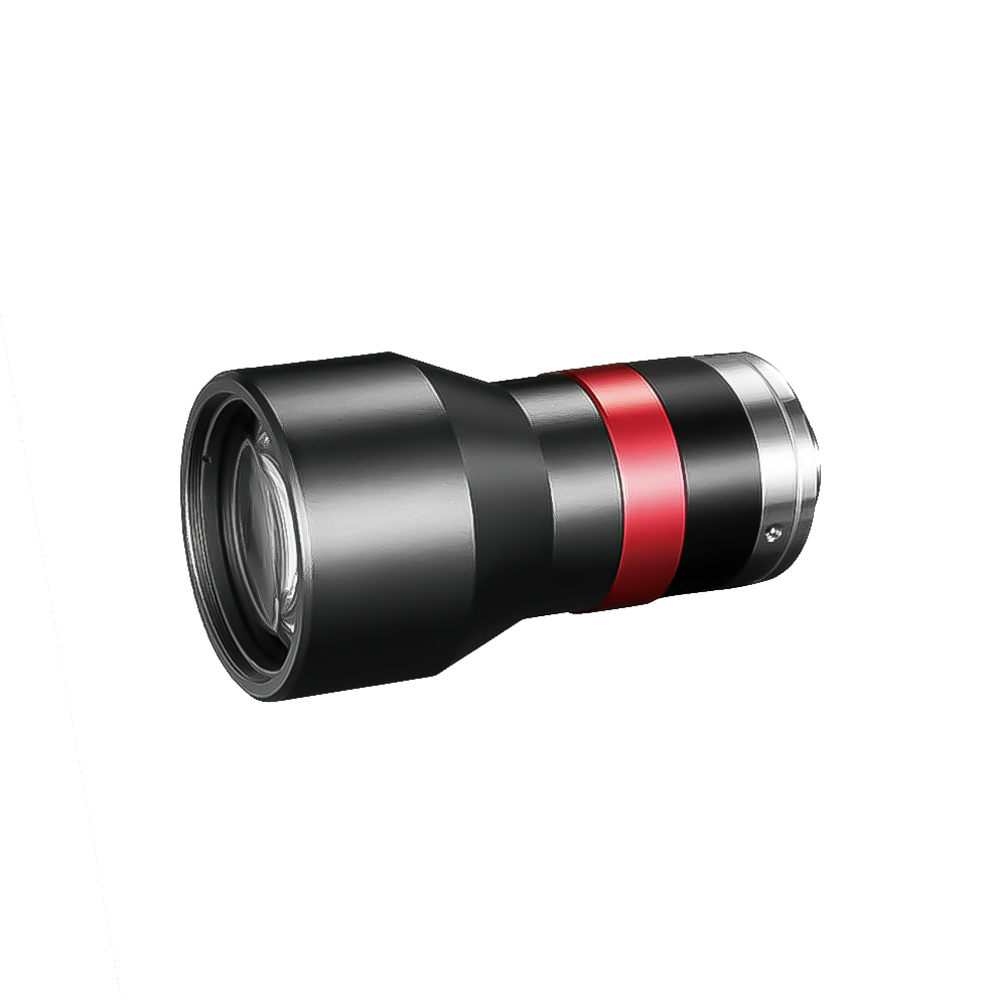

Coolens DTCM111-26 front view

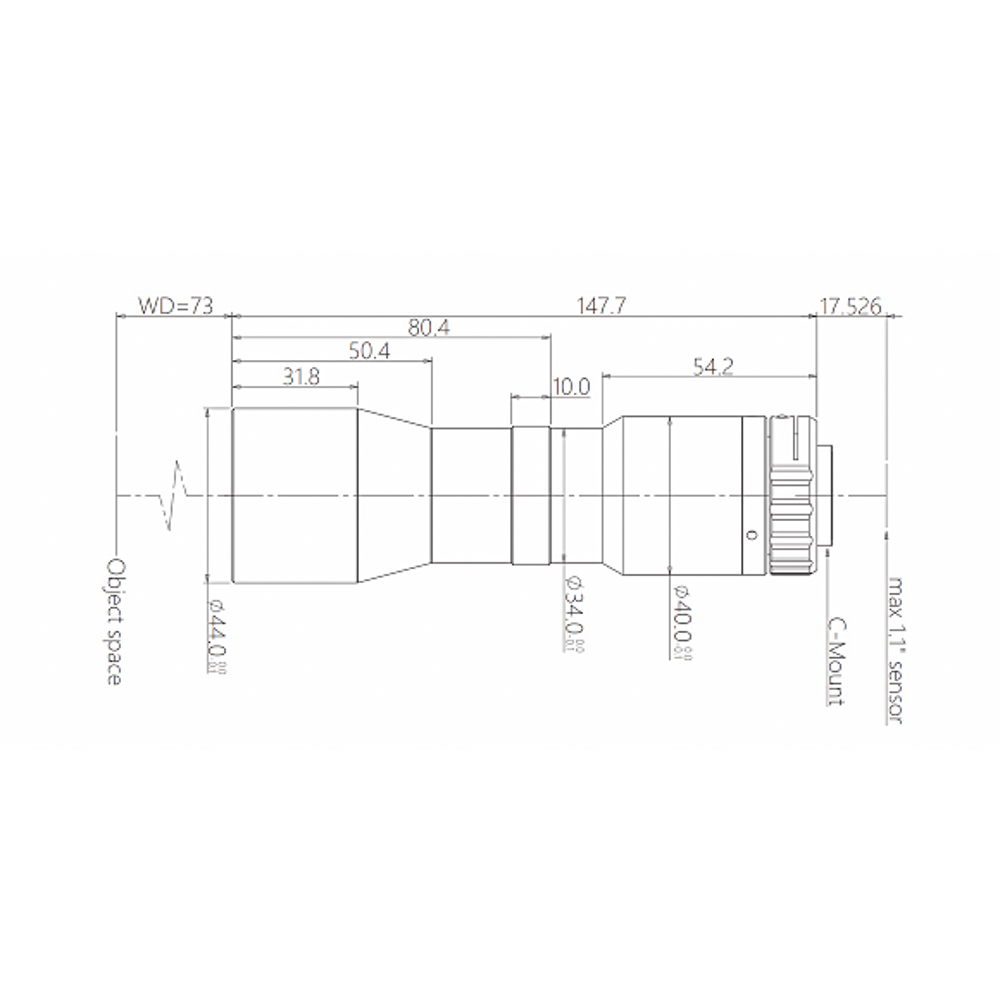

Coolens DTCM111-26 drawing

DTCM111-26-AL

Item No.: 238.0105

DTCM111-26-AL

Coolens DTCM111-26-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 26mm, Ultra Resolution Bi-Telecentric Lens

• Up to 25 MegaPixels, 2.5 μm Pixel Size Sensors

• 1.1" Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.708

737,00
(Price excluding VAT)
EAN
7435844413410
Brand
Coolens
FNO
F 9.6
Sensor Type
1.1 Inch
Mount
C-mount
Megapixel
25MP
Series
Telecentric
FOV
26 mm

Specification

FOV: 26 mm ⌀

Max Sensor Size: 18.4 mm (1.1")

Typical Telecntricity: <0.1

MTF30: >75 lp/mm

I/O length: 238+/-1 mm

Dept of Field: +/- 1.6 (@F20)

Length: 147.7 mm

Magnification: (x) 0.708

Working Distance: 73 +/-1 mm

Aperture: F9.6

Typical Distortion: max <0.1%

C-mount
