DTCM111-110-AL

Name: DTCM111-110-AL
Brand: Coolens
Price: 1783.00 EUR
Availability: InStock

Item No.: 238.0115

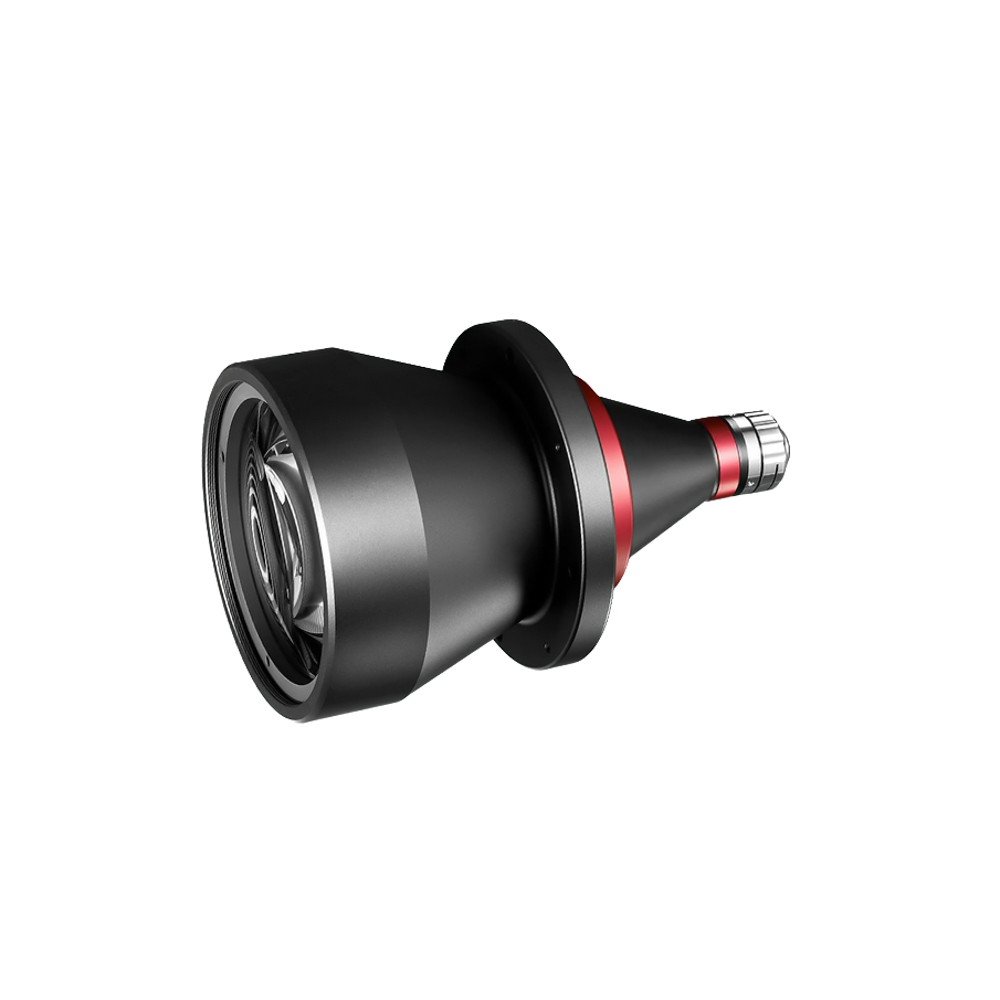

Coolens DTCM111-110-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 110mm, Ultra Resolution Bi-Telecentric Lens

• Up to 25 MegaPixels, 2.5 μm Pixel Size Sensors

• 1.1" Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.167

€1.783,00

(Price excluding VAT)

EAN

7435844024098

SKU

Brand

Coolens

FNO

F 6.2

Sensor Type

1.1 Inch

Mount

C-mount

Megapixel

25MP

Series

Telecentric

FOV

110 mm

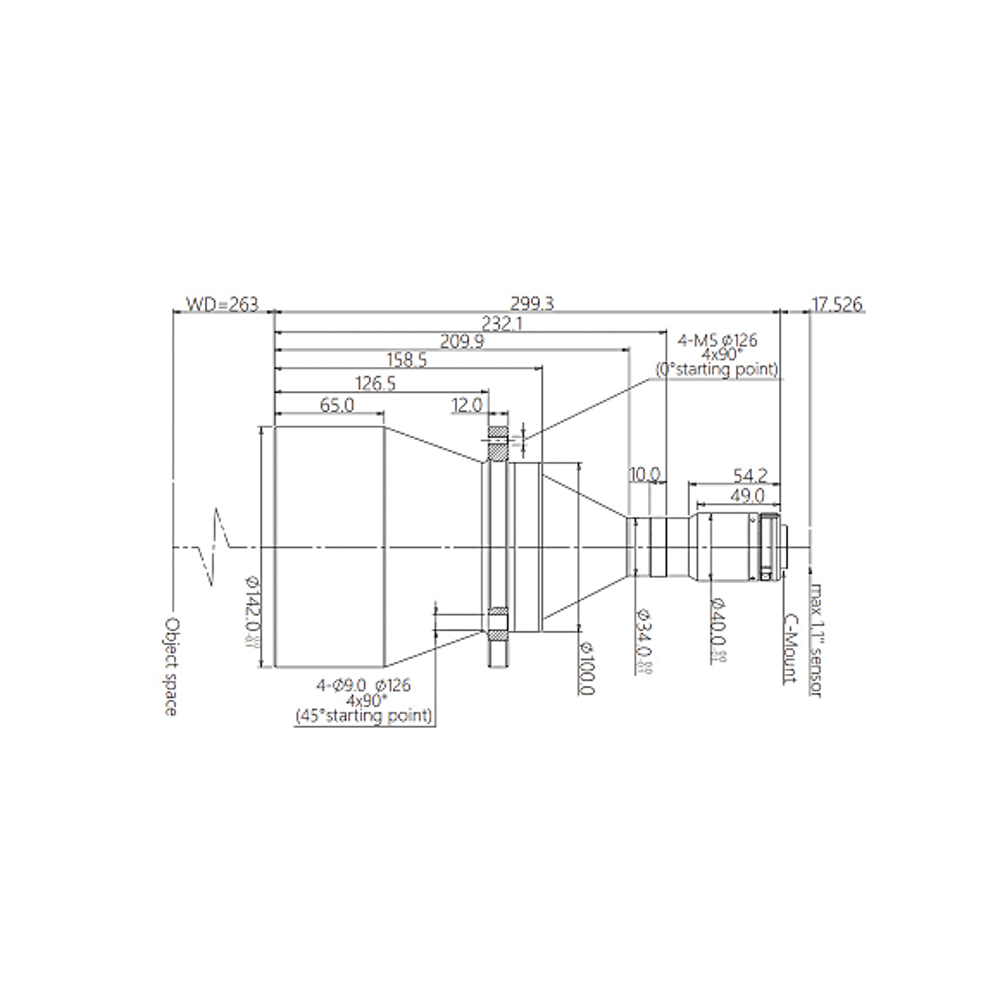

Specification

FOV: 110 mm ⌀

Max Sensor Size: 18.4 mm (1.1")

Typical Telecntricity: <0.1

MTF30: >150 lp/mm

I/O length: 580 +/- 4 mm

Dept of Field: +/- 15.8 (@F11)

Length: 299.3 mm

Magnification: (x) 0.167

Working Distance: 263 +/- 4 mm

Aperture: F6.2

Typical Distortion: max <0.1%

C-mount

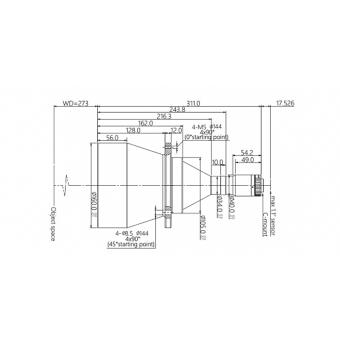

Alternate products for DTCM111-110-AL
