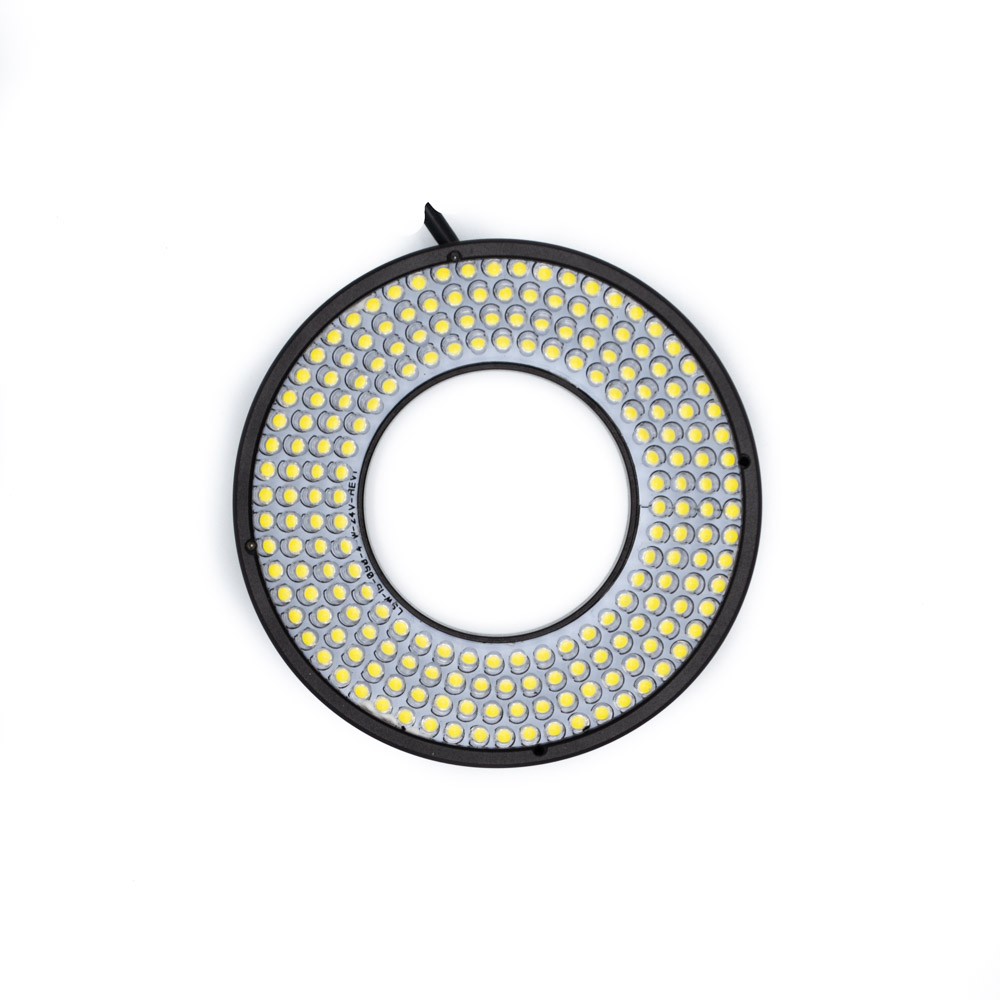

foto vooraanzicht LSW-30-090-4-W

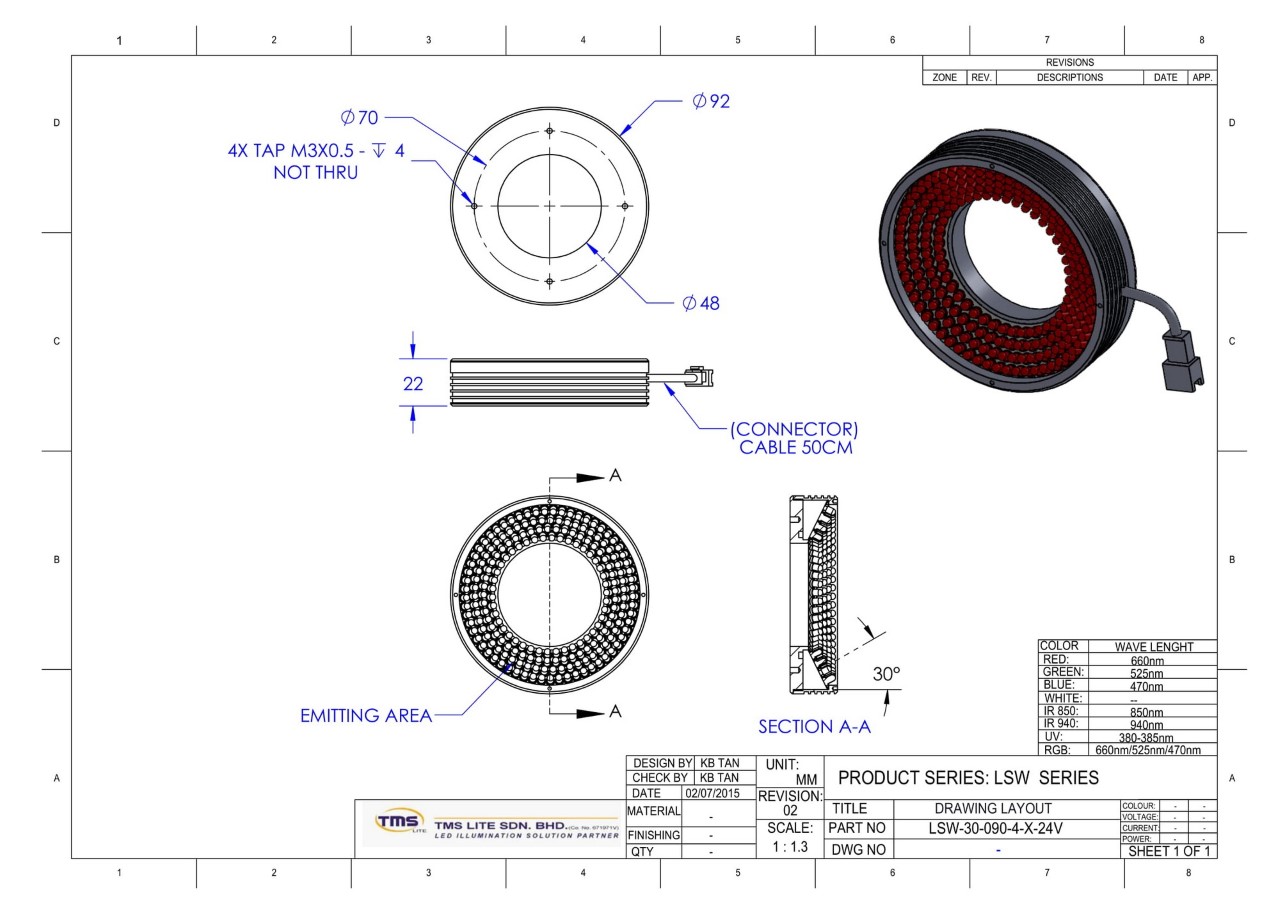

tekening opbouw LSW-30-090-4-W

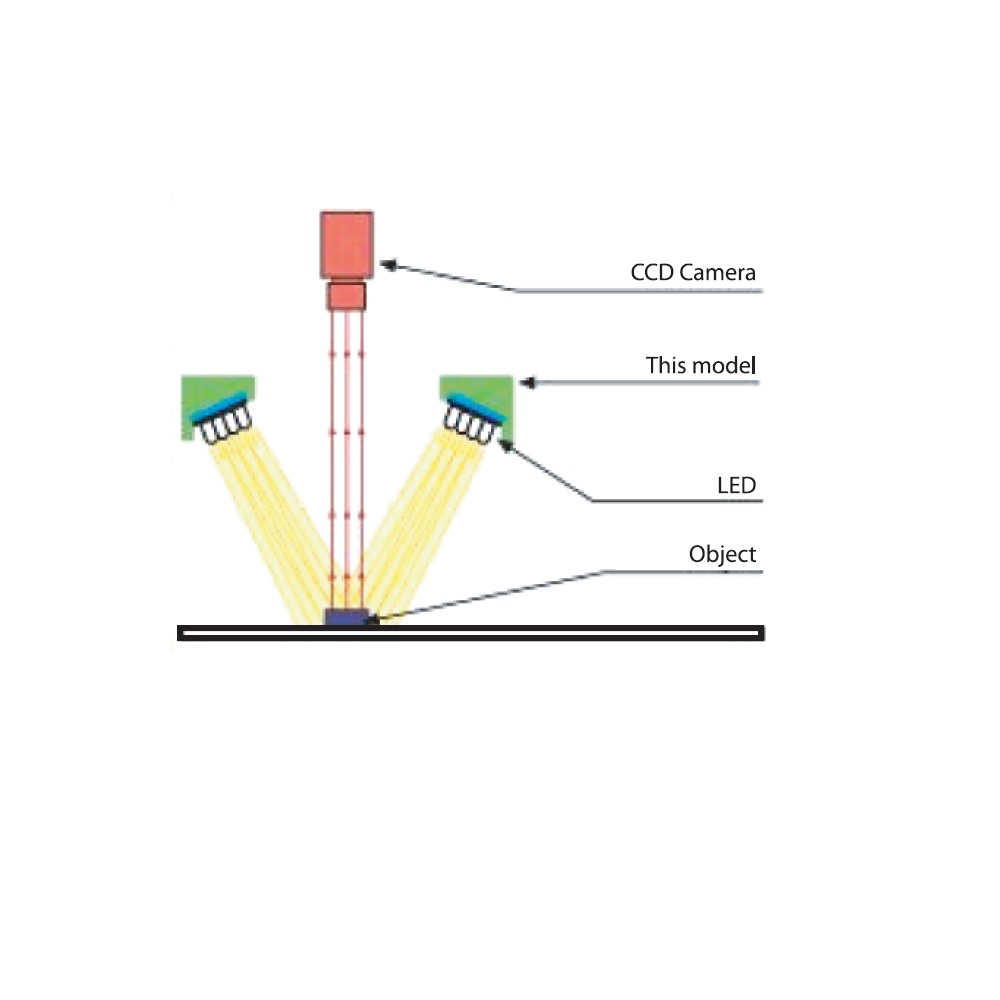

schematische tekening lichtval LSW-30-090-4-W

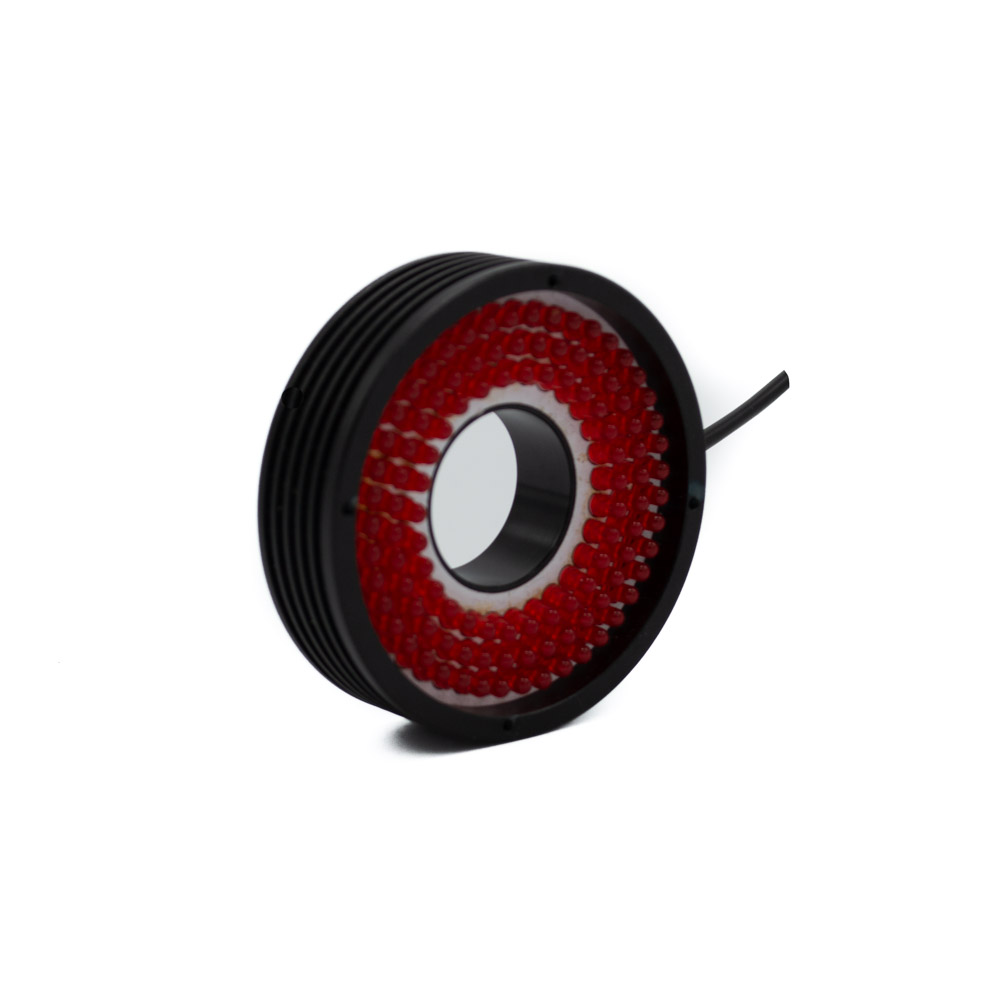

foto zijaanzicht LSW-30-090-4-W
LSW-30-090-4-W-24V

LSW-30-090-4-W-24V

Item No.: LSW-30-090-4-W-24V

Direct Illumination

LSW SERIES - High intensity, concentrated ring illumination

LED arrays are arranged densely for the light arrays to be concentrated to a spot for extreme bright light.

By using a flexible PCB Board, the product quality and efficiency improves. Flexible boards are able to achieve optimized angle with variation of outer and inner diameter to target a work piece.

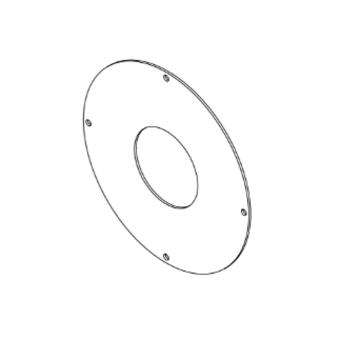

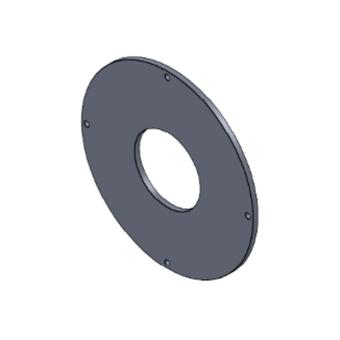

Optional diffuser can be added to this LSW light for more even light distribution.

Applications: substrate inspection, label inspection, flat surface, fiducially recognition

Full technical specifications: Click here to download

525,00
(Price excluding VAT)
Type of illumination
Direct
Shape
Ring
Angle
30
Colour
White
Voltage Input
24V
Size
90
Brand
TMS Lite
Series
LSW

Specification

- Colour White

- Size 90mm

- Angle 30°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Information

24V DC Input Power

Voltage/Watt                    Current

24V / 10.44 W (White)     435 mA

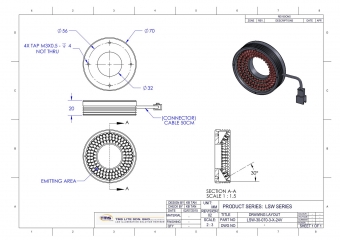

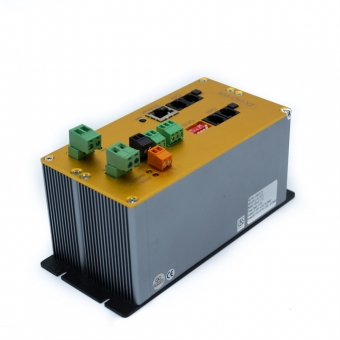

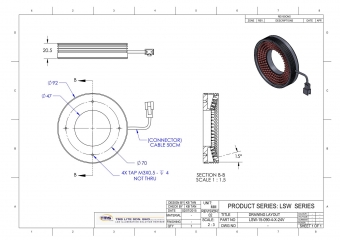

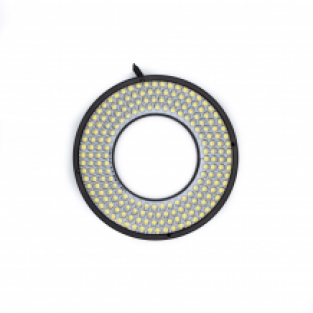

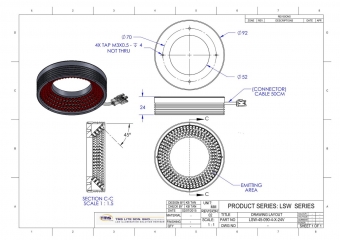

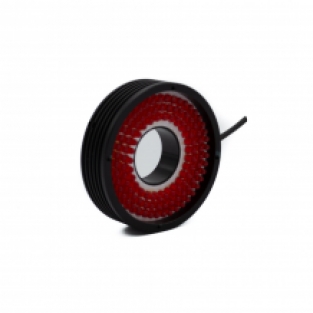

Alternate products for LSW-30-090-4-W-24V
