Overview

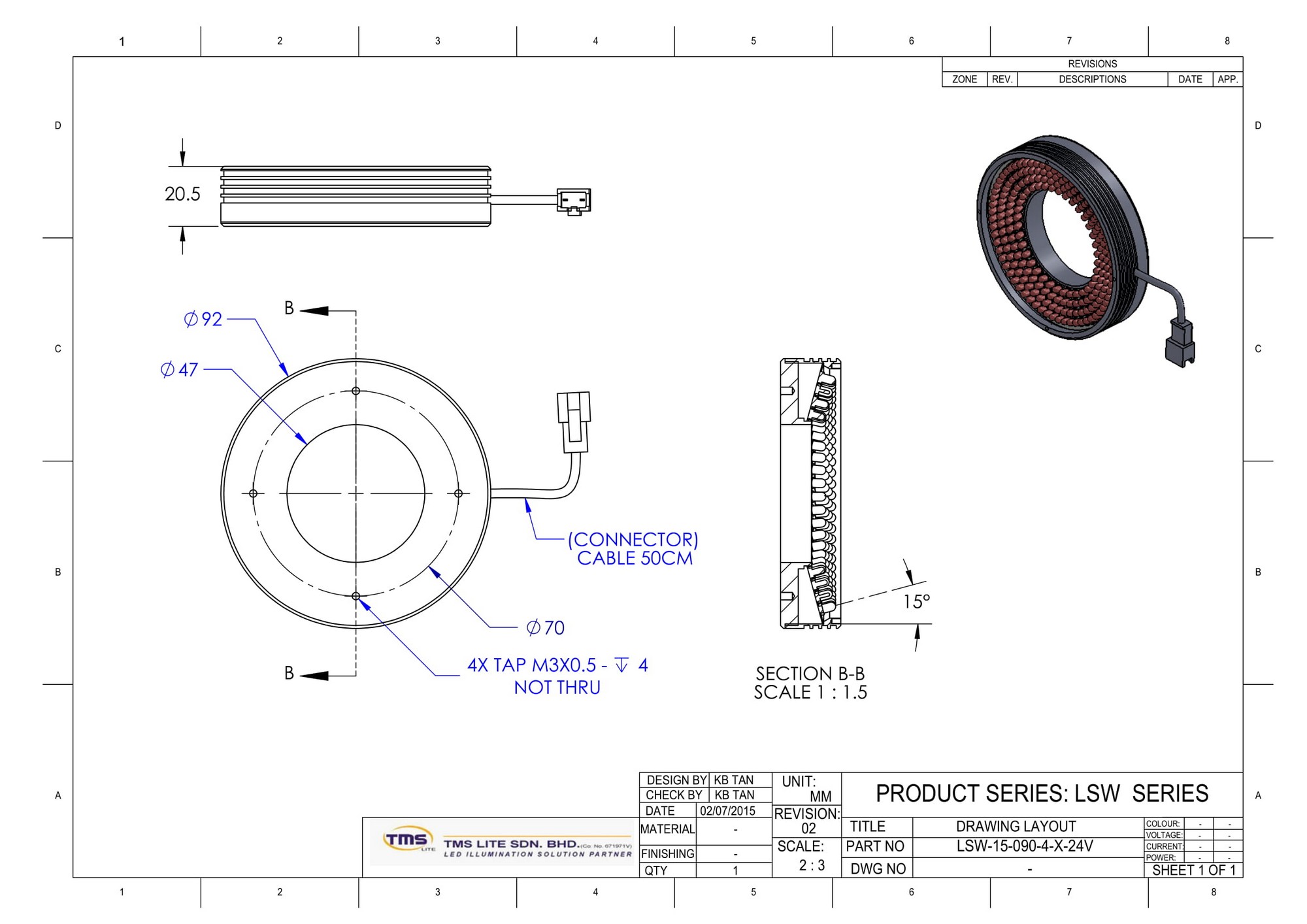

schematische tekening lichtinval LSW-15-090-4-W

LSW-15-090-4-W-24V

Name: LSW-15-090-4-W-24V
Brand: TMS Lite
Price: 517.00 EUR
Availability: InStock

Item No.: LSW-15-090-4-W-24V

Direct Illumination

LSW SERIES - High intensity, concentrated ring illumination

LED arrays are arranged densely for the light arrays to be concentrated to a spot for extreme bright light.

By using a flexible PCB Board, the product quality and efficiency improves. Flexible boards are able to achieve optimized angle with variation of outer and inner diameter to target a work piece.

Optional diffuser can be added to this LSW light for more even light distribution.

Applications: substrate inspection, label inspection, flat surface, fiducially recognition

Full technical specifications:Click here to download

€517,00

(Price excluding VAT)

Request a quotation?

EAN

SKU

Type of illumination

Direct

Shape

Ring

Angle

Colour

White

Voltage Input

24V

Size

Brand

TMS Lite

Series

LSW

More TMS Lite | More Illumination

Description

Specification

- Colour White

- Size 90mm

- Angle 15°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Information

24V DC Input Power

Voltage/Watt Current

24V / 10.08 W (White) 420 mA

Alternate products for LSW-15-090-4-W-24V

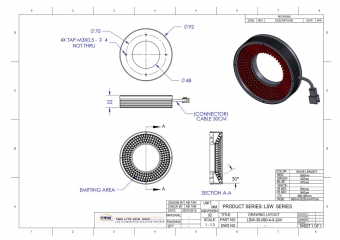

LSW-30-090-4-W-24V

€525,00

LSW-45-090-4-W-24V

€527,00

LSW-15-090-4-W-12V

€517,00

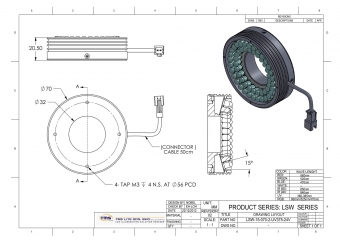

LSW-15-070-3-W-24V

€377,00

LSW-00-090-4-W-24V

€481,00

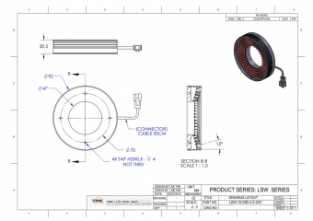

LSW-15-090-4-W-24V
