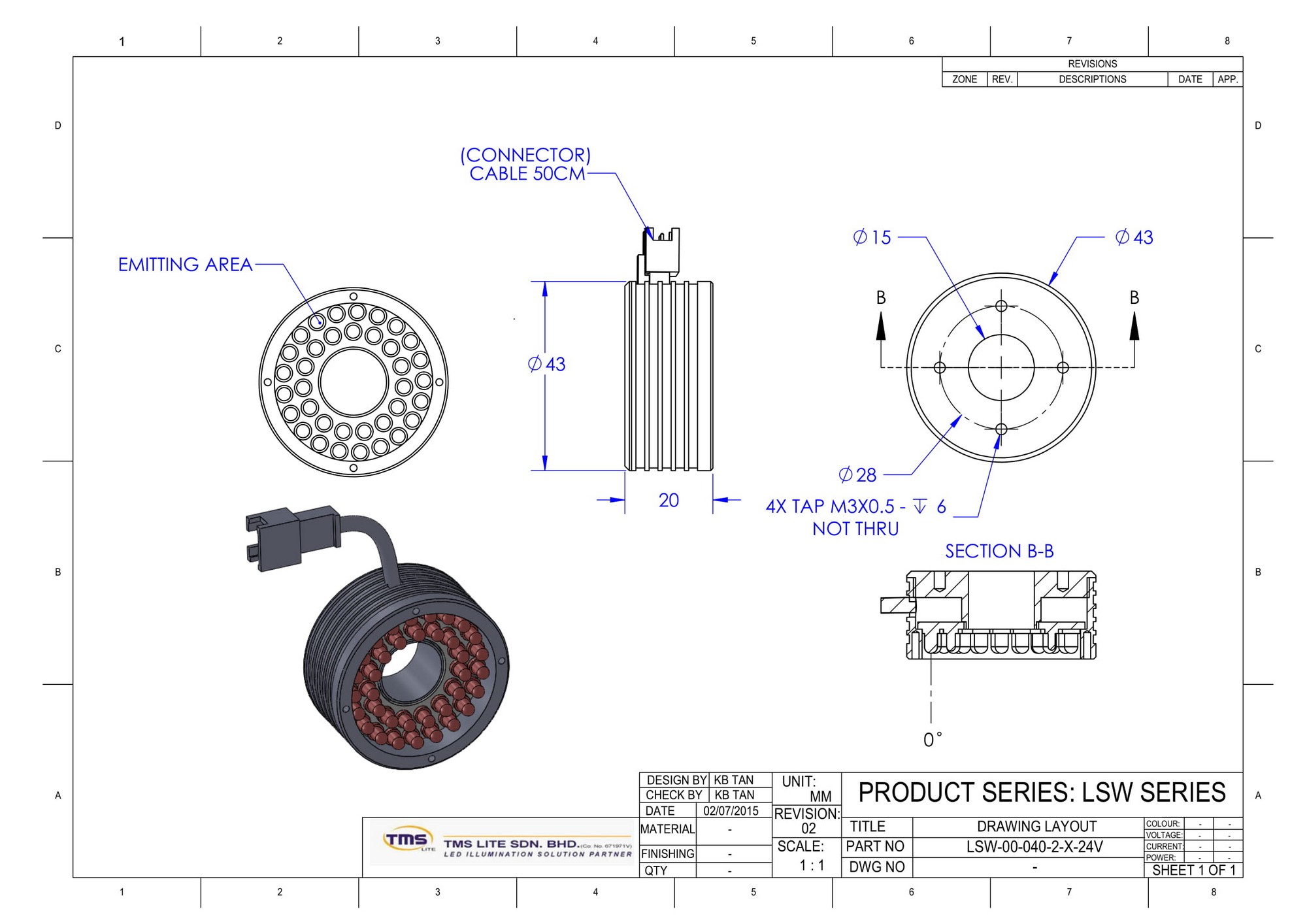

schema tekening LSW-00-040-2-B
schematische weergave lichtval LSW-00-040-2-B
zijaanzicht LSW-00-040-2-B
bovenaanzicht LSW-00-040-2-B

LSW-00-040-2-B-24V

Item No.: LSW-00-040-2-B-24V

Direct Illumination

LSW SERIES - High intensity, concentrated ring illumination

LED arrays are arranged densely for the light arrays to be concentrated to a spot for extreme bright light.

By using a flexible PCB Board, the product quality and efficiency improves. Flexible boards are able to achieve optimized angle with variation of outer and inner diameter to target a work piece.

Optional diffuser can be added to this LSW light for more even light distribution.

Applications: substrate inspection, label inspection, flat surface, fiducially recognition

Full technical specifications: Click here to download

317,00
(Price excluding VAT)
Type of illumination
Direct
Shape
Ring
Angle
0
Colour
Blue
Voltage Input
24V
Size
40
Brand
TMS Lite
Series
LSW

Specification

- Colour Blue

- Size 40mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Information

24V DC Input Power

Voltage/Watt                  Current

24V /1.80 W (Blue)        75 mA

LED 470 nm

Alternate products for LSW-00-040-2-B-24V
