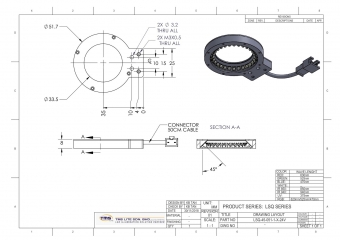

tekening schematisch LSQ-45-050-1-G
lichtval schema LSQ-45-050-1-G
vooraanzicht LSQ-45-050-1-G

LSQ-45-050-1-G-24V

Item No.: LSQ-45-050-1-G-24V

Direct Illumination

LSQ SERIES - High density, concentrated light output

LED arrays are arranged to provide concentrated light from a square housing. The different LED angle allow small or wider spot illumination.

Applications: flat surface, fiducially recognition, label inspection, substrate inspection

Full technical specifications: Click here to download

Diffuser

Extension cable

325,00
(Price excluding VAT)
Type of illumination
Direct
Shape
Ring
Angle
45
Colour
Green
Voltage Input
24V
Size
50
Series
LSQ

Specification

- Colour Green

- Size 50mm

- Angle 45°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical information

24V DC Input Power

Voltage/Watt                  Current

24V / 1.44 W (Green)     60mA

LED 525 nm

Alternate products for LSQ-45-050-1-G-24V
