LBS45-00-135-3-R-24V
LBS45-00-135-3-R-24V
LBS45-00-135-3-R-24V

LBS45-00-135-3-R-24V

Item No.: LBS45-00-135-3-R-24V

Direct Illumination

LBS SERIES - High denisty, rectangular illumination

LEDs arrays are arranged in rectangular array to provide recatangular illumination and can be cascaded to different sizes.

The rectangular illumination can be mounted with different angles to provide different illumination reflection for image processing.

Optional diffuser can be added to all LBS series for more even light distribution.

Applications: general illumination, label inspection, character inspection, code recognition

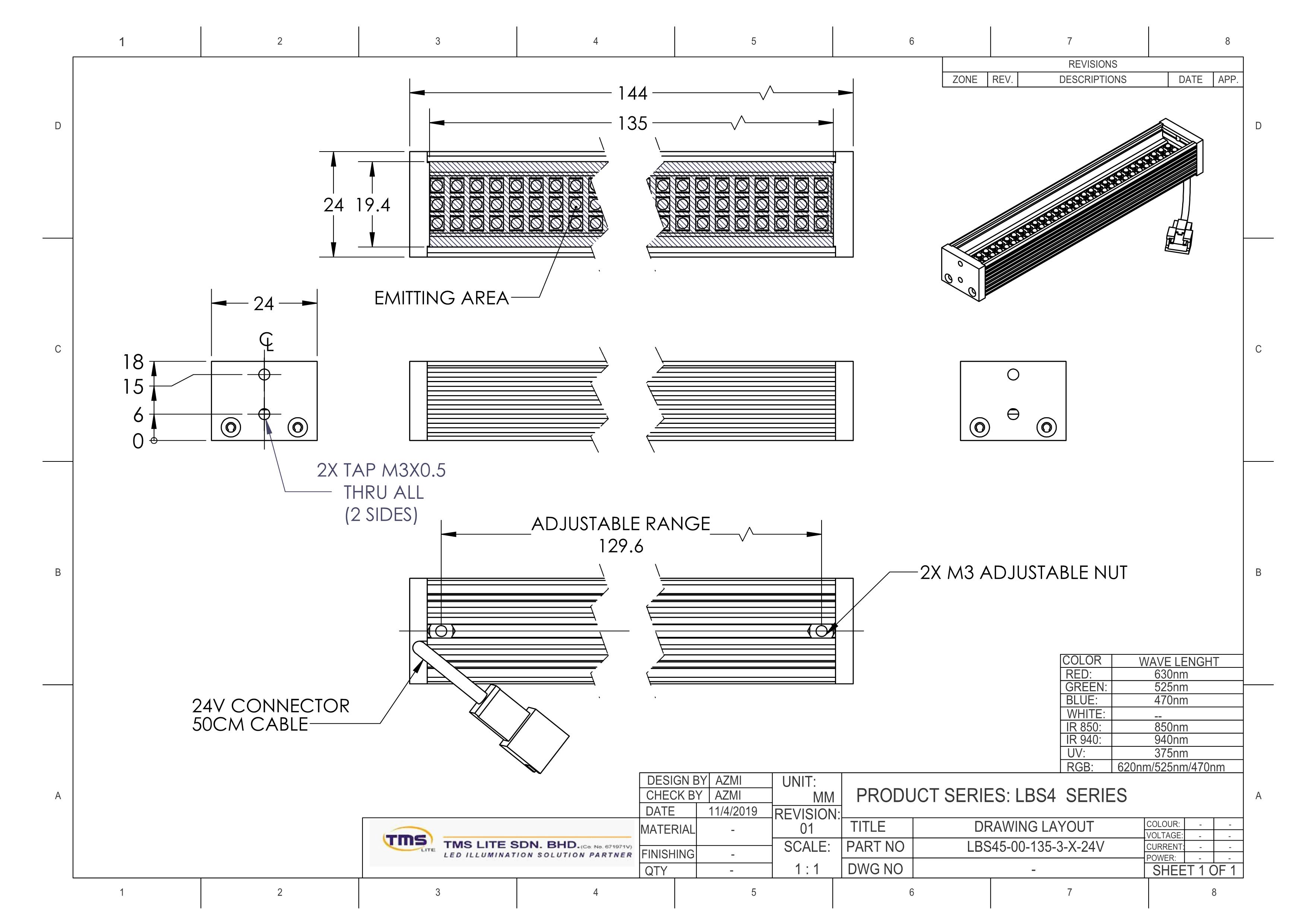

Full technical specifications: Click here to download

Diffuser

Extension cable

Polarizer

411,00
(Price excluding VAT)
Type of illumination
Direct
Shape
Bar
Angle
0
Colour
Red
Voltage Input
24V
Size
135
Brand
TMS Lite
Series
LBS

Specification:

- Colour Red

- Length 135mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information:

24V DC Input Power

Voltage/Watt                  Current

24V / 4.32 W (Red)       180mA

LED 630 nm
