LBRX-00-120-6-B-24V
LBRX-00-120-6-B-24V
LBRX-00-120-6-B-24V
LBRX-00-120-6-B-24V
LBRX-00-120-6-B-24V

LBRX-00-120-6-B-24V

Item No.: LBRX-00-120-6-B-24V

Direct Illumination

LBRX SERIES - Direct rectangular SMD illumination

6 Row SMD LEDs with lens arrays are arranged in rectangular array to provide efficient rectangular illumination.

The rectangular illumination can be mounted with different angle to provide difference in illumination reflection for image processing.

Optional diffuser can be added to all LBRX series for more even light distribution.

Applications: general illumination, label inspection, OCR/OCV inspection, code recognition

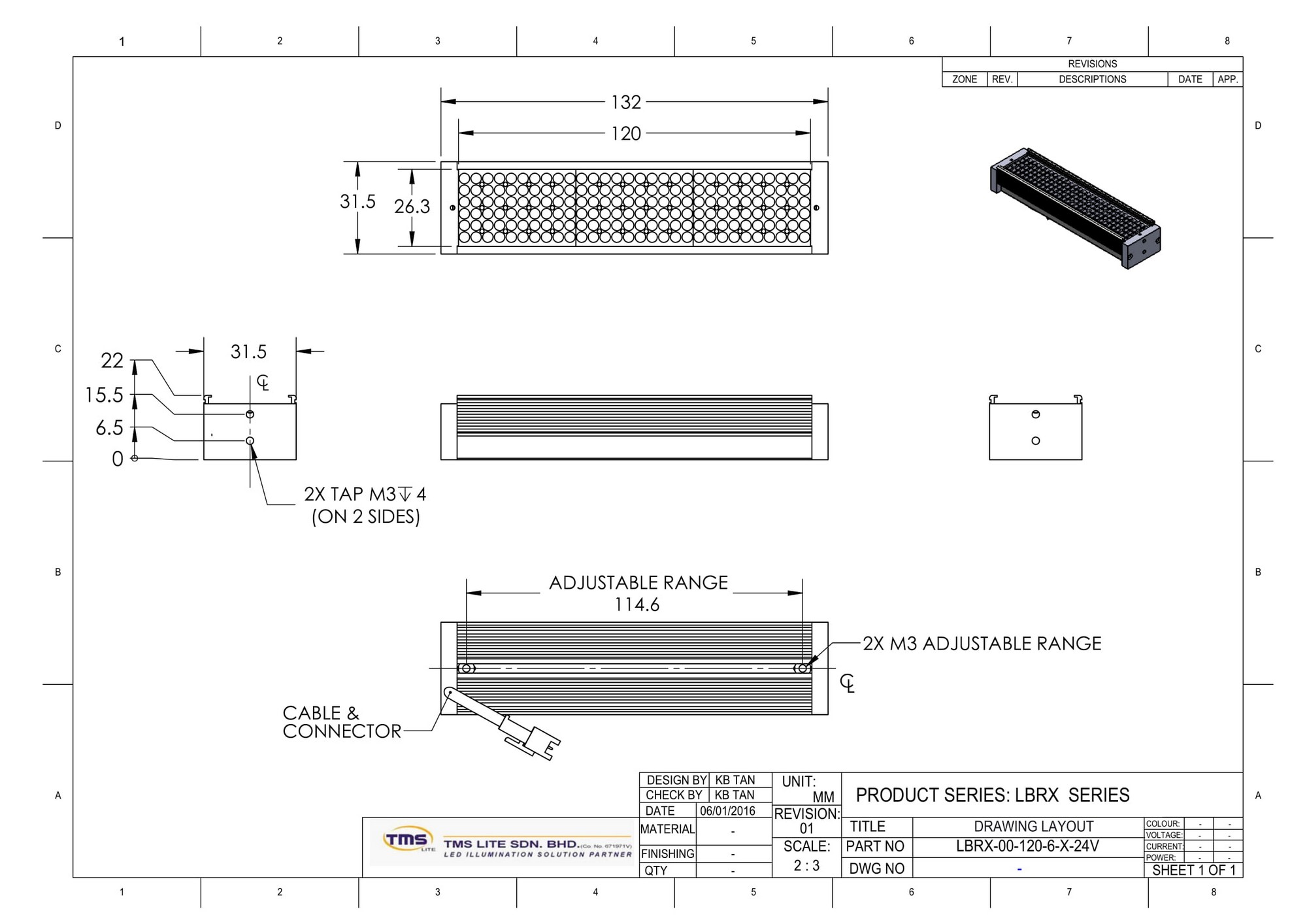

Full technical specifications: Click here to download

329,00
(Price excluding VAT)
Type of illumination
Direct
Shape
Bar
Angle
0
Colour
Blue
Voltage Input
24V
Size
120
Brand
TMS Lite
Series
LBRX

Specification:

- Color Blue

- Size 120mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information:

24V DC Input Power

Voltage/Watt                 Current

24V / 5.18 W (Blue)       216mA

LED 470 nm
