Item No.: LBRX-00-040-6-W-24V

Direct Illumination

LBRX SERIES - Direct rectangular SMD illumination

6 Row SMD LEDs with lens arrays are arranged in rectangular array to provide efficient rectangular illumination.

The rectangular illumination can be mounted with different angle to provide difference in illumination reflection for image processing.

Optional diffuser can be added to all LBRX series for more even light distribution.

Applications: general illumination, label inspection, OCR/OCV inspection, code recognition

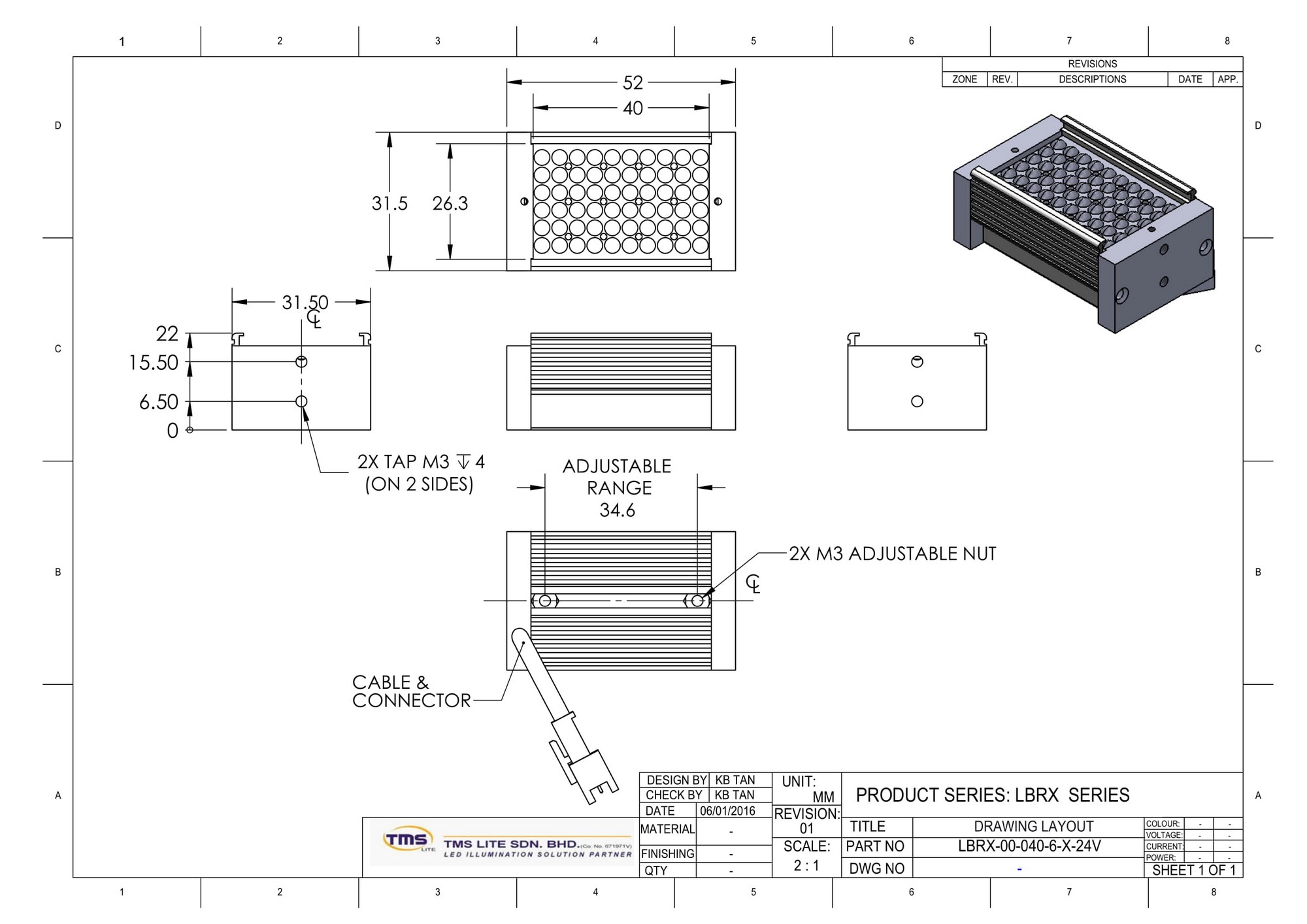

Full technical specifications: Click here to download

269,00
(Price excluding VAT)
Type of illumination
Direct
Shape
Bar
Angle
0
Colour
White
Voltage Input
24V
Size
40
Brand
TMS Lite
Series
LBRX

Specification:

- Color White

- Size 40mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information:

24V DC Input Power

Voltage/Watt

24V / 1.73 W (White)       72mA
