LBQ25-00-050-3-B-24V
LBQ25-00-050-3-B-24V
LBQ25-00-050-3-B-24V
LBQ25-00-050-3-B-24V

LBQ25-00-050-3-B-24V

Item No.: 167.0993

Direct Illumination

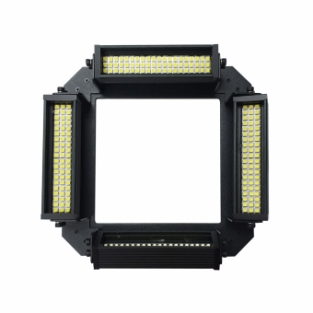

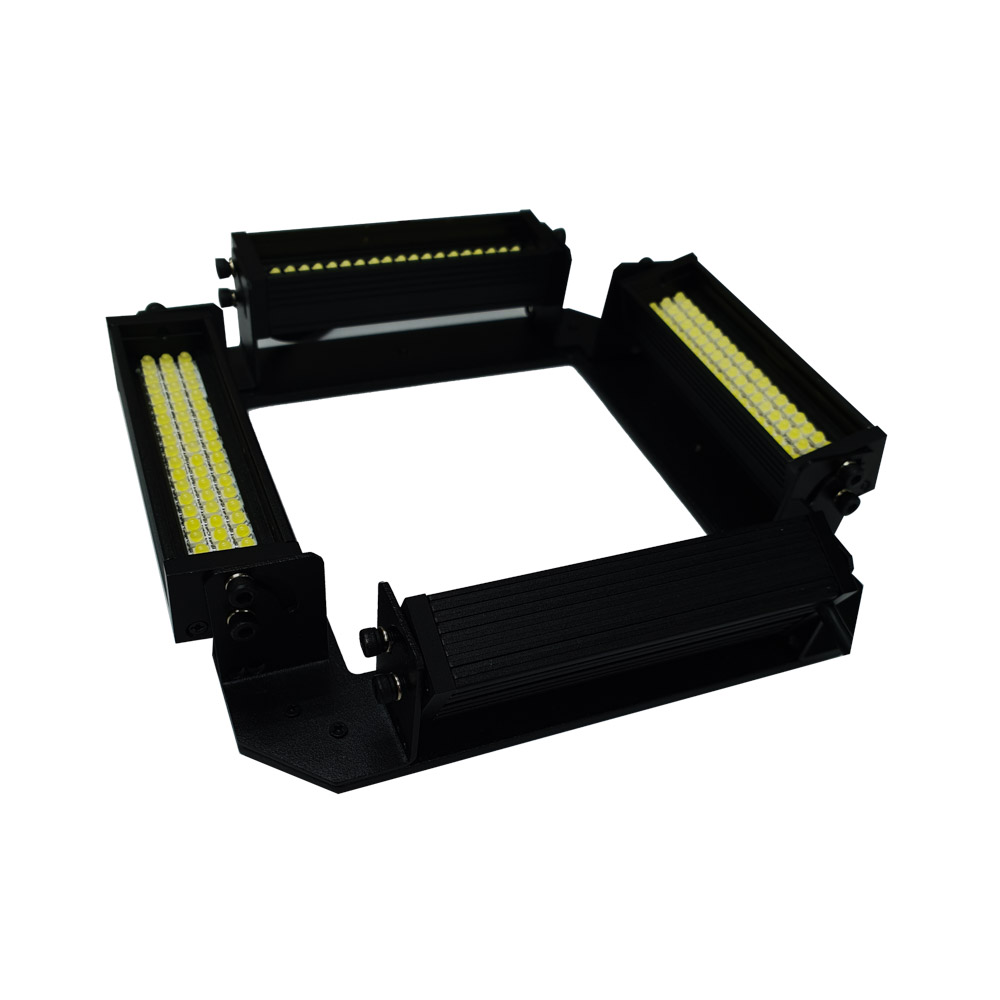

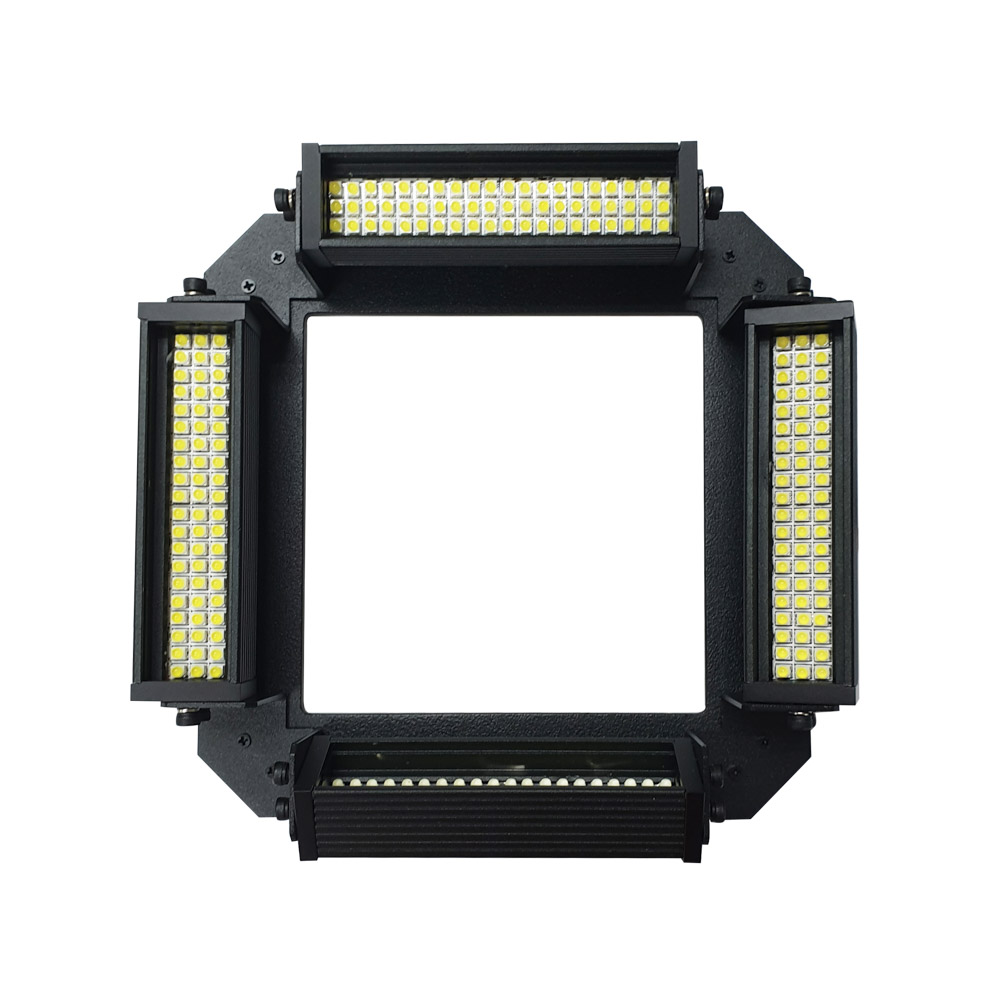

LBQ SERIES - High density, multiple rectangular illumination

LBQ series are a combination of 4 LBS LED arrays. Each array angle can be adjusted for different height application.

Optional diffuser can be added to all LBQ series for more even light distribution.

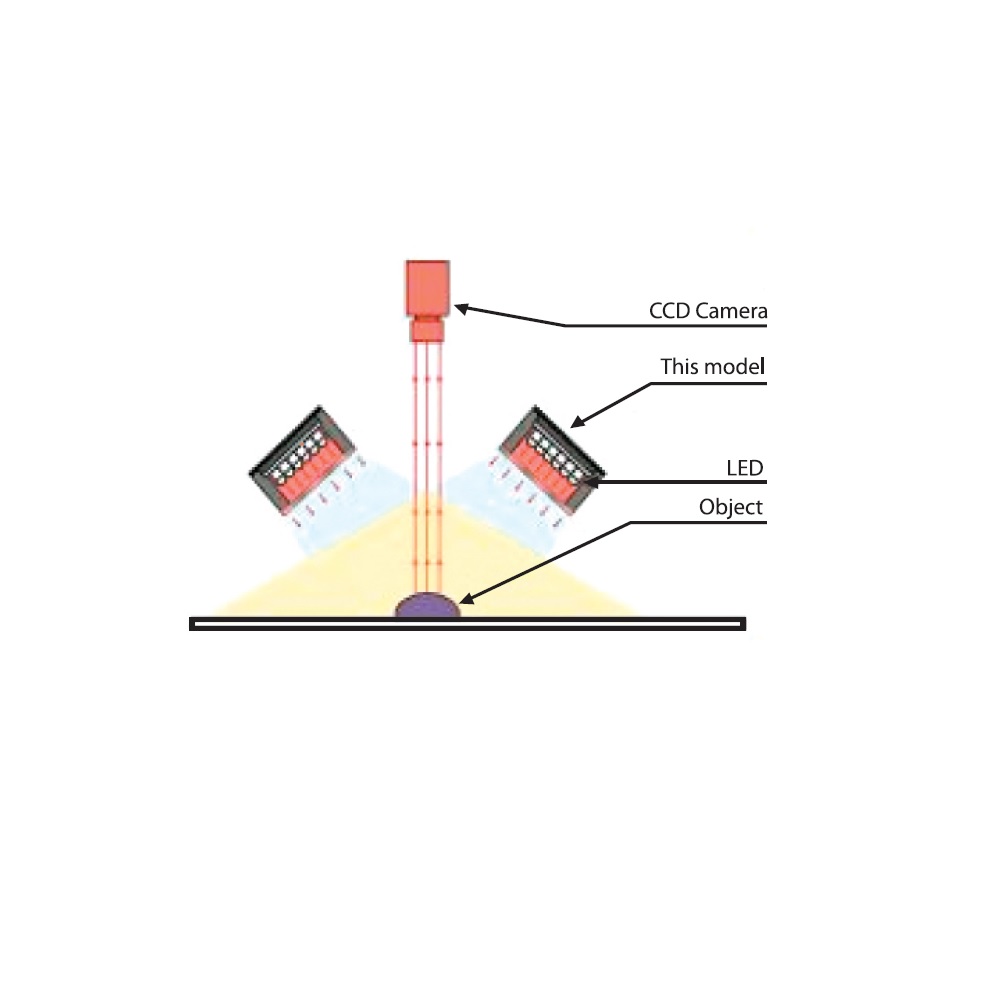

Applications: label inspection, character inspection, code recognition

Diffuser

Polarizer

773,00
(Price excluding VAT)
EAN
7435842542518
Type of illumination
Direct
Shape
Bar
Angle
0
Colour
Blue
Voltage Input
24V
Size
50
Series
LBQ

Specification

- Colour Blue

- Length 50mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                Current



24V / 4.32 W (Blue)     180mA

LED 470 nm
