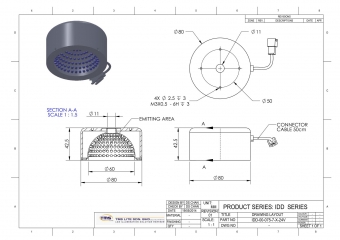

tekening IDD-00-045-4-B
schema lichtval IDD-00-045-4-B
foto zijkant IDD-00-045-4-B
foto bovenkant IDD-00-045-4-B
foto binnenkant IDD-00-045-4-B

IDD-00-045-4-B-24V

Item No.: 167.0762

Direct Illumination

IDD SERIES - Direct Dome Light Illumination

Multiple rows of LEDs are mounted inside a dome densely, allowing strong irradiation to be made by shining extreme bright light at whole angles.

Appliciation: SMD LED inspection, SMD resistor, crack and chip

Full technical specifications: Click here to download

712,00
(Price excluding VAT)
EAN
7435842984912
Type of illumination
Direct
Shape
Dome
Angle
0
Colour
Blue
Voltage Input
24V
Size
45
Brand
TMS Lite
Series
IDD

Specification

- Color Blue

- Size 45mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                  Current

24V / 3.60 W (Blue)       150mA

LED 470nm
