HPD-00-240-1-W-24V side view

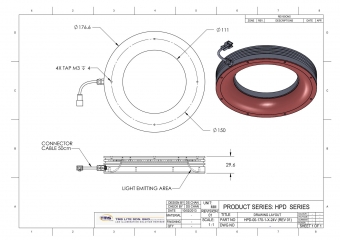

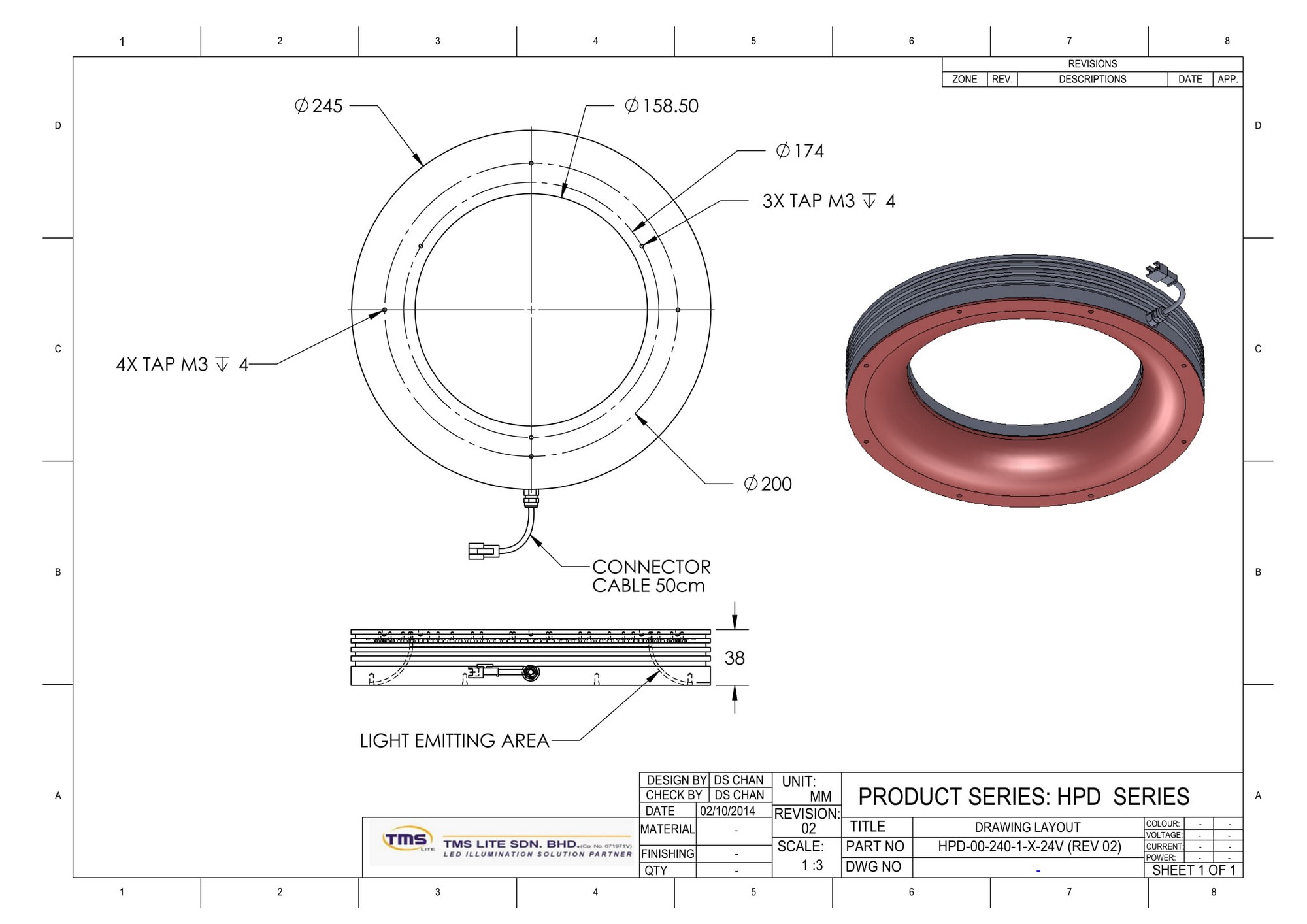

HPD-00-240-1-W-24V drawing
HPD-00-240-1-W-24V illustration
HPD-00-240-1-W-24V front view lights off
HPD-00-240-1-W-24V front view lights on

HPD-00-240-1-W-24V

Item No.: 167.0724

Diffused Illumination

HPD SERIES - Uniform ring light illumination

Mid-Power LEDs are arranged uniformly in a ring structure with a moulded diffuser to achieve uniform area illumination with higher flexibility.

Applications: Shining surface and food packaging inspection

Full technical specifications: Click here to download

645,00
(Price excluding VAT)
EAN
7435849347383
Type of illumination
Diffused
Shape
Ring
Angle
0
Colour
White
Voltage Input
24V
Size
240
Brand
TMS Lite
Series
HPD

Specification

- Colour White

- Length 240mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                   Current

24V / 26.88 W (White)    1120mA
