HLBRX-00-040-3-B-24V
HLBRX-00-040-3-B-24V
HLBRX-00-040-3-B-24V

HLBRX-00-040-3-B-24V

Item No.: HLBRX-00-040-3-B-24V

Direct Illumination

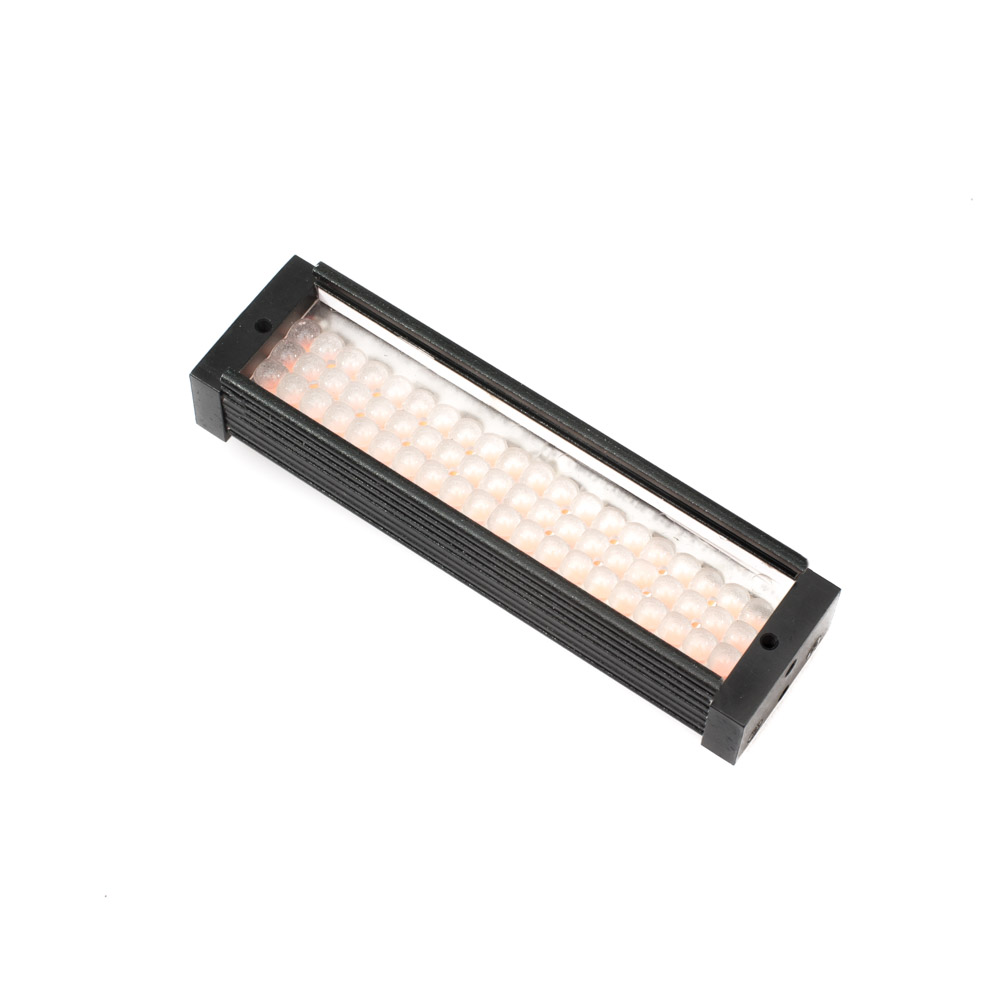

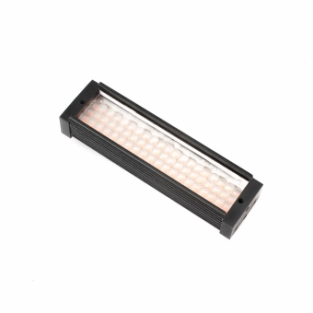

HLBRX SERIES - Direct, high intensity, rectangular illumination (for short working distance)

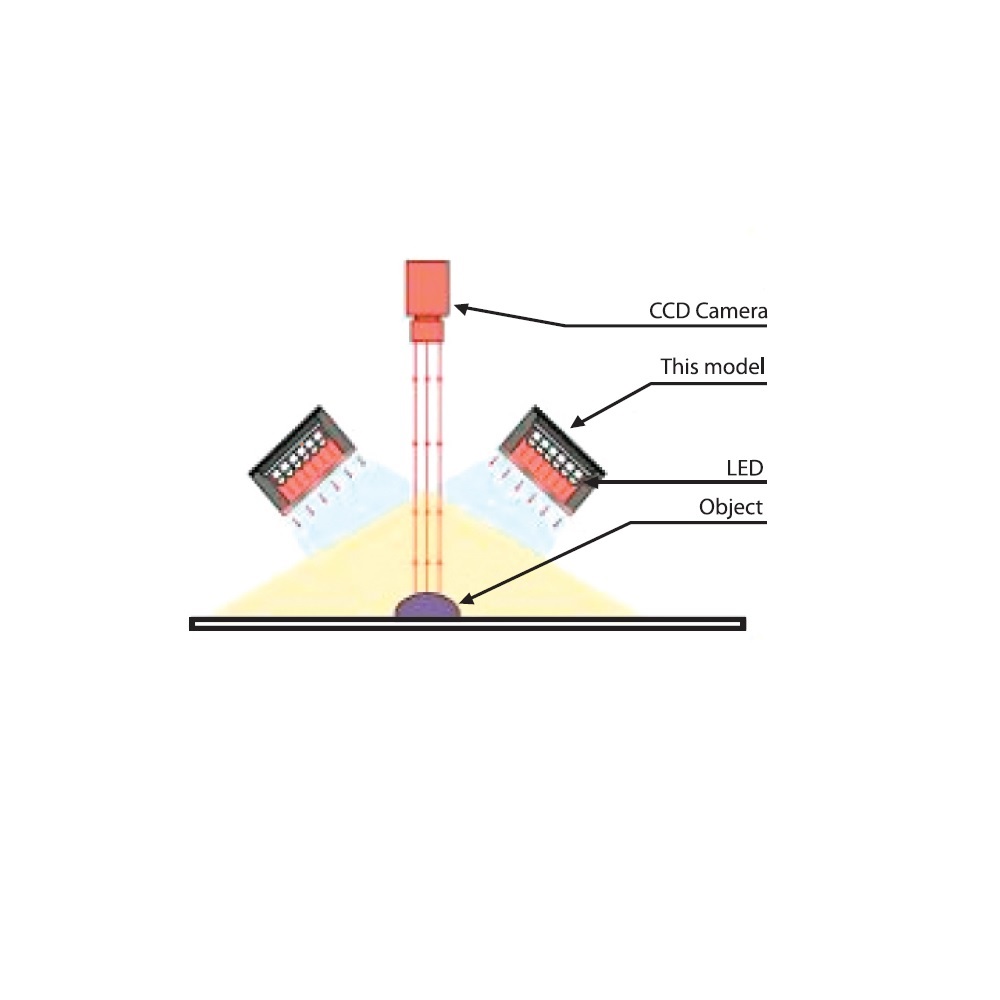

3 Rows of SMD LEDs are arranged in a rectangular array to provide rectangular illumination that can be mounted with different angles to provide differences in illumination reflection for image processing.

Applications: general illumination, label inspection, character inspection, code recognition

Full technical specifications: Click here to download

Extension cable

323,00
(Price excluding VAT)
Type of illumination
Direct
Shape
Bar
Angle
0
Colour
Blue
Voltage Input
24V
Size
40
Brand
TMS Lite
Series
HLBRX

Specification

- Colour Blue

- Length 40mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                  Current

24V / 3.36 W (Blue)       140mA

LED 450 nm OSRAM
