TMS Lite DLW2-60-100-1-W-24V front view

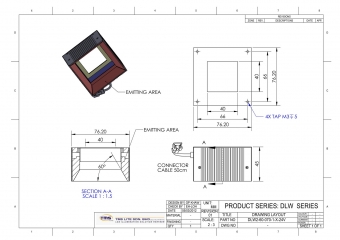

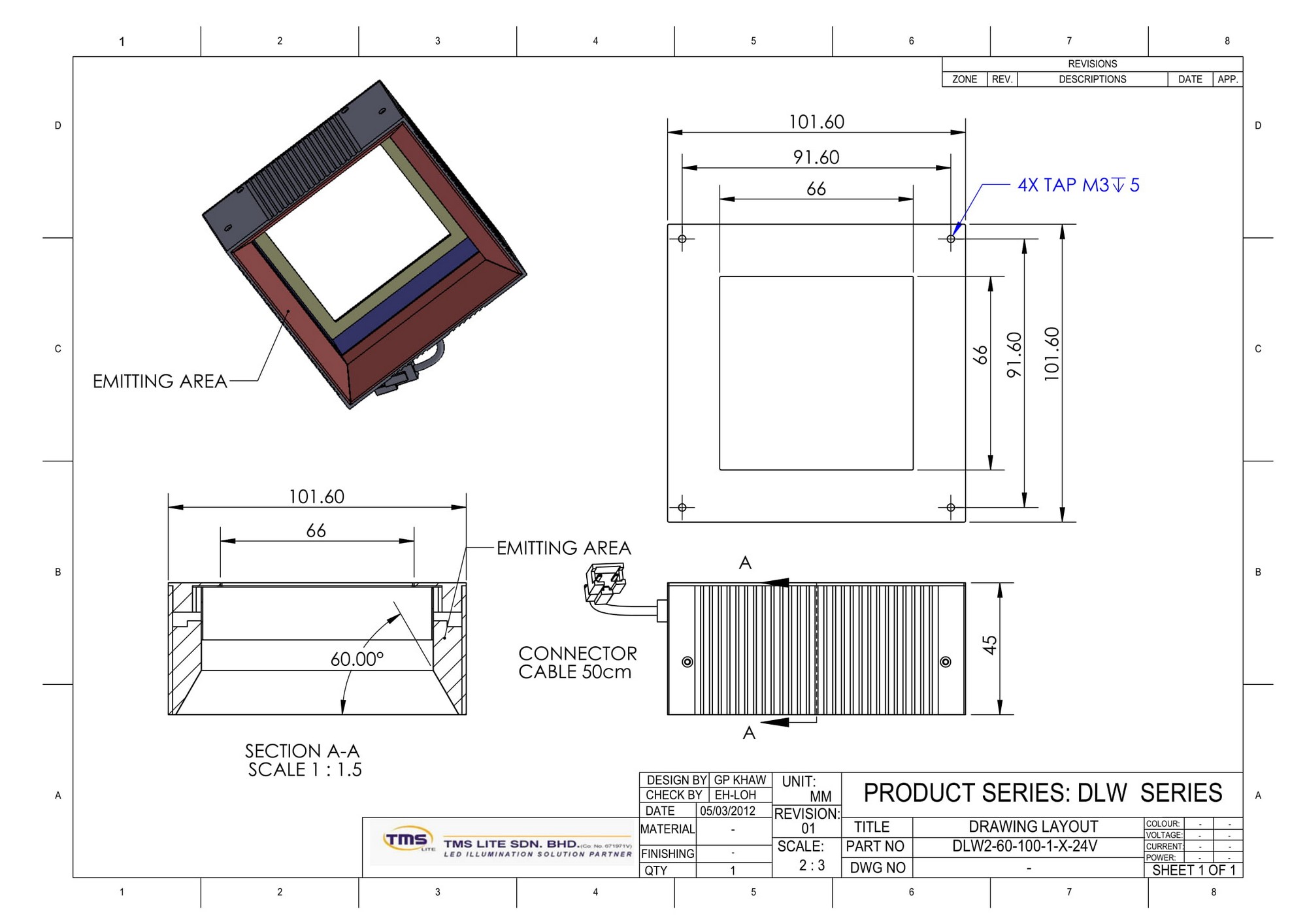

TMS Lite DLW2-60-100-1-W-24V drawing
TMS Lite DLW2-60-100-1-W-24V drawing 2
TMS Lite DLW2-60-100-1-W-24V blue light

DLW2-60-100-1-W-24V

Item No.: 167.0647

Diffused Illumination

DLW SERIES - Diffused square illumination

DLW Series provide diffused even illumination over a surface. The even illumination prevents glaring for reflective surface.

Applications: character recognition on shining surface, lead inspection

Full technical specifications: Click here to download

489,00
(Price excluding VAT)
EAN
7435843628600
Type of illumination
Diffused
Shape
Square
Angle
60
Colour
White
Voltage Input
24V
Size
100
Brand
TMS Lite
Series
DLW

Specification

- Colour White

- Length 100mm

- Angle 60°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                Current

24V / 5.76 W (White)   240mA
