DLQ - TMS-Lite photo1

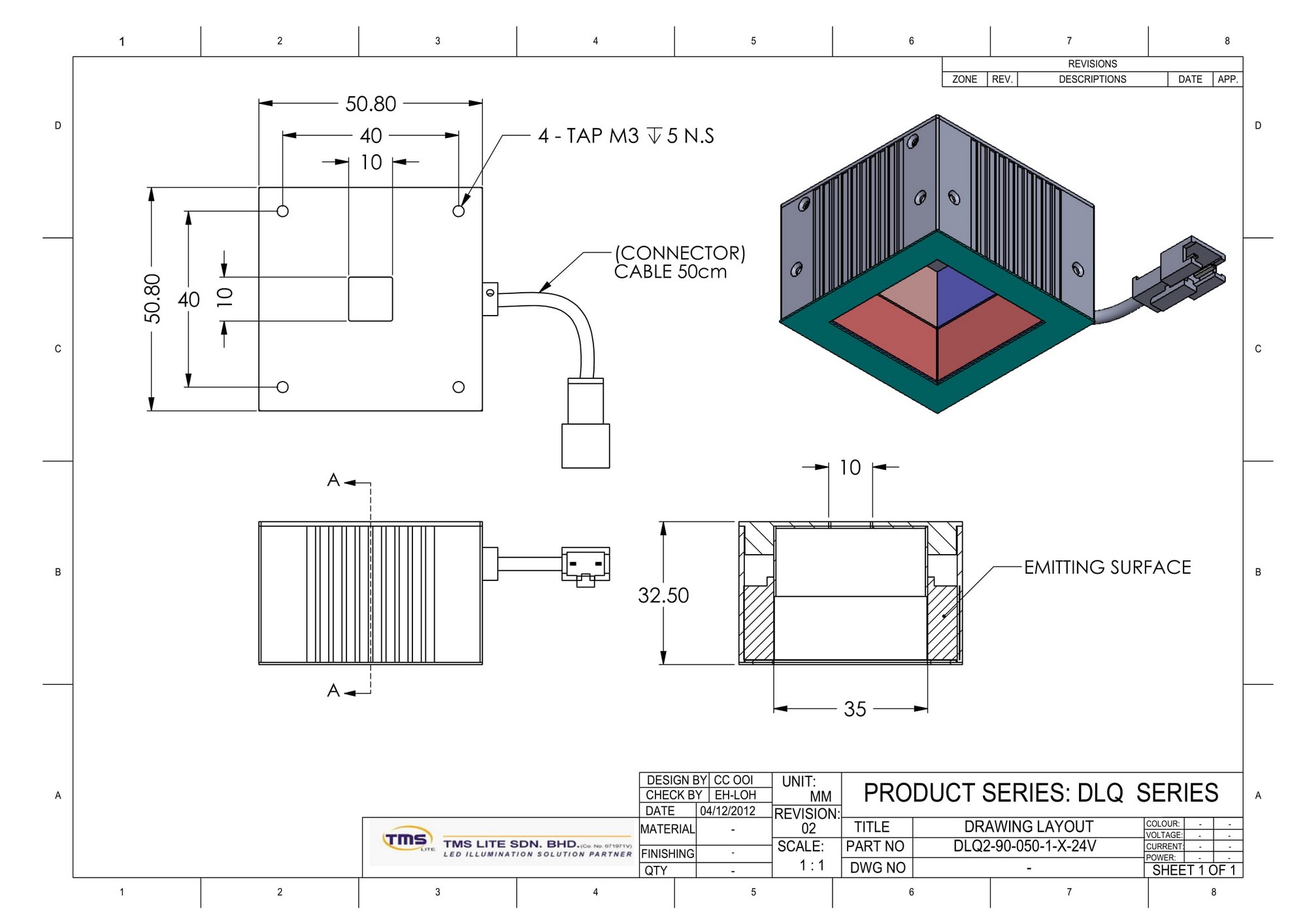

DLQ2-90-050-1-W-24V
DLQ2-90-050-1-W-24V
DLQ - TMS-Lite photo2
DLQ - TMS-Lite photo3
DLQ - TMS-Lite photo4
DLQ - TMS-Lite photo5

DLQ2-90-050-1-W-24V

Item No.: 167.0532

Diffused Illumination

DLQ SERIES - Diffused square illumination

DLQ series is a low angle diffused uniform illumination from 4 sides, highlighting the edges of the inspection object while not producing any unwanted shadows.

This illumination is suitable for the inspection of square or rectangular workpieces.

DLQ series is different from the DLF series because they can be used with a smaller FOV.

Applications: SDA ball inspection, QFP lead inspection

Full technical specifications: Click here to download

369,00
(Price excluding VAT)
EAN
7435849796792
Type of illumination
Diffused
Shape
Square
Angle
90
Colour
White
Voltage Input
24V
Size
50
Brand
TMS Lite
Series
DLQ

Specification

- Colour White

- Length 50mm

- Angle 90°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                Curren

24V / 1.92 W (White)     80mA
