Item No.: DFR4-15-100-1-G-24V

Diffused Illumination

DFR SERIES - Diffused angular ring illumination

DFR Series provide diffused even illumination over a surface. A conical illumination surface makes it possible to illuminate a work piece from almost any angle.

Applications: printed character on IC chips, PCB component, printing on caps and wafer OCR inspection

Full technical specifications: Click here to download

Extension cable

464,00
(Price excluding VAT)
Type of illumination
Diffused
Shape
Ring
Angle
15
Colour
Green
Voltage Input
24V
Size
100
Series
DFR

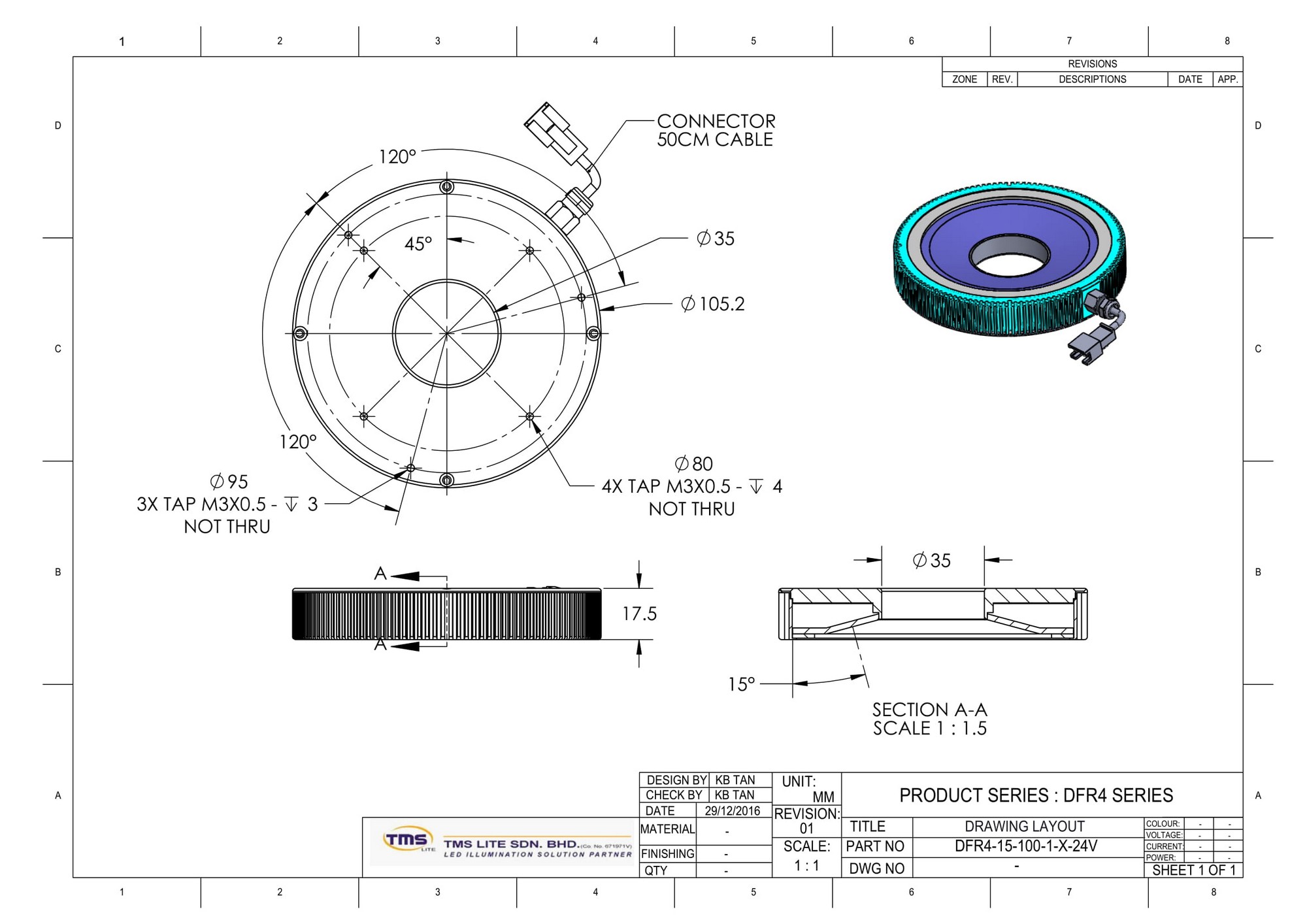

Specification

- Colour Green

- Length 100mm

- Angle 15°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt

24V / 5.40 W (Green)    225 mA

LED 540 nm OSRAM
