PRA0818A

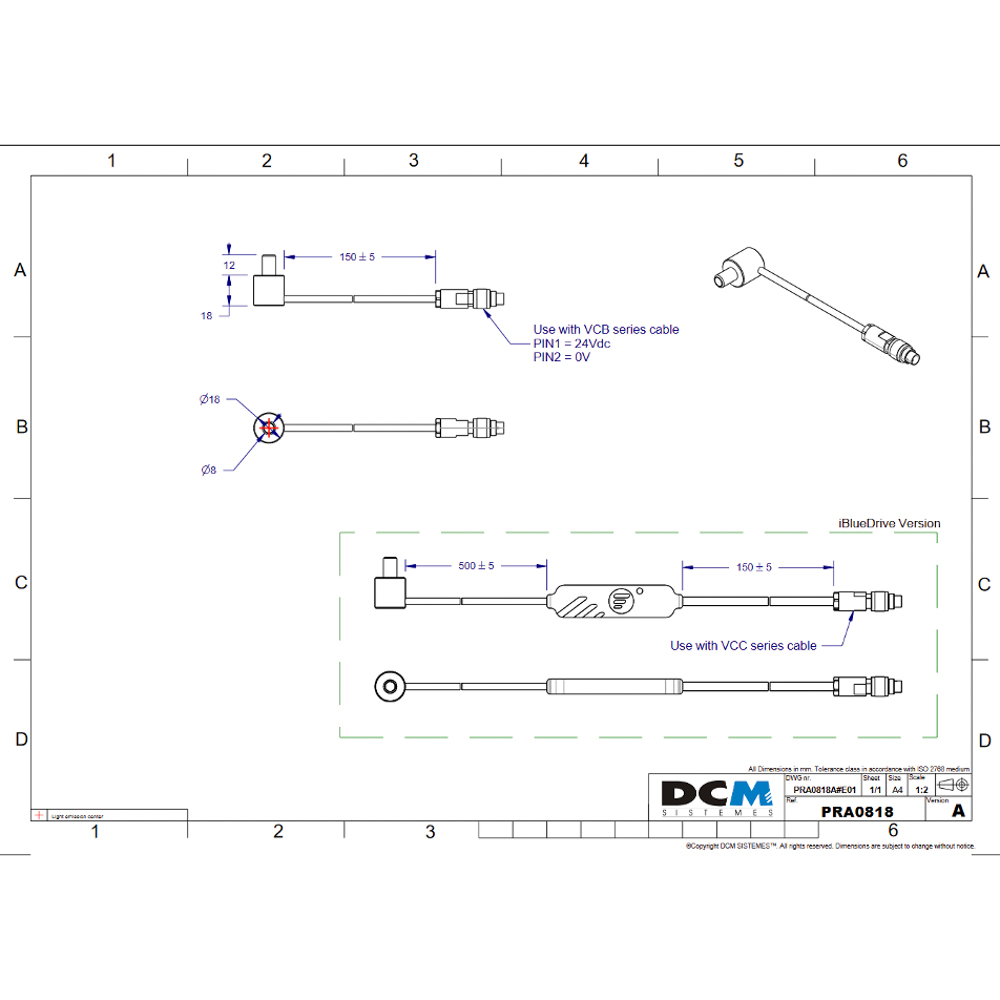

PRA0818A drawing

DCM PRA0818A-470C

Item No.: 230.1383

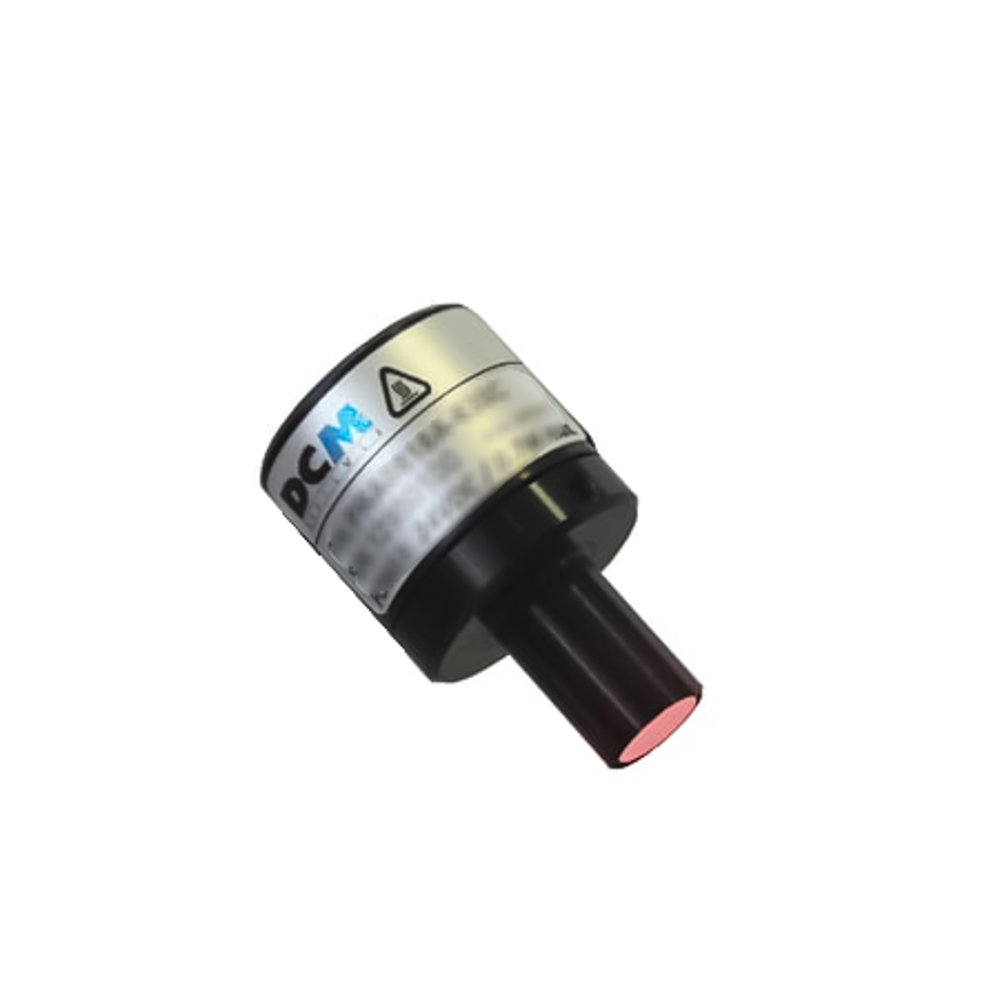

DCM PRA0818A-470C, Coaxial spot light illumination

DCM PRA0818A-470C - Coaxial spot light illumination

The PRA series is designed to replace fiber optic illumination in coaxial/lensing applications. This light can be mounted on the coaxial unit of a macro lens or a telecentric lens.

Applications: Macro lens & telecentric lens inspection

Full technical specifications: Click here to download

Manufactured in Europe

137,50
(Price excluding VAT)
EAN
7435847154167
Type of illumination
Coaxial Spotlight
Shape
Spot
Angle
0
Colour
Blue
Voltage Input
24V
IP
40
Size
8
Brand
DCM sistemes
Series
PRA

Specification

- Colour Blue

- Size 8 mm

- Angle 0°

- Continuous Applications

- 2P aerial Cable

Technical information

24V DC Input Power

Voltage/Watt

24V / 1.1 W (Blue)

470nm
