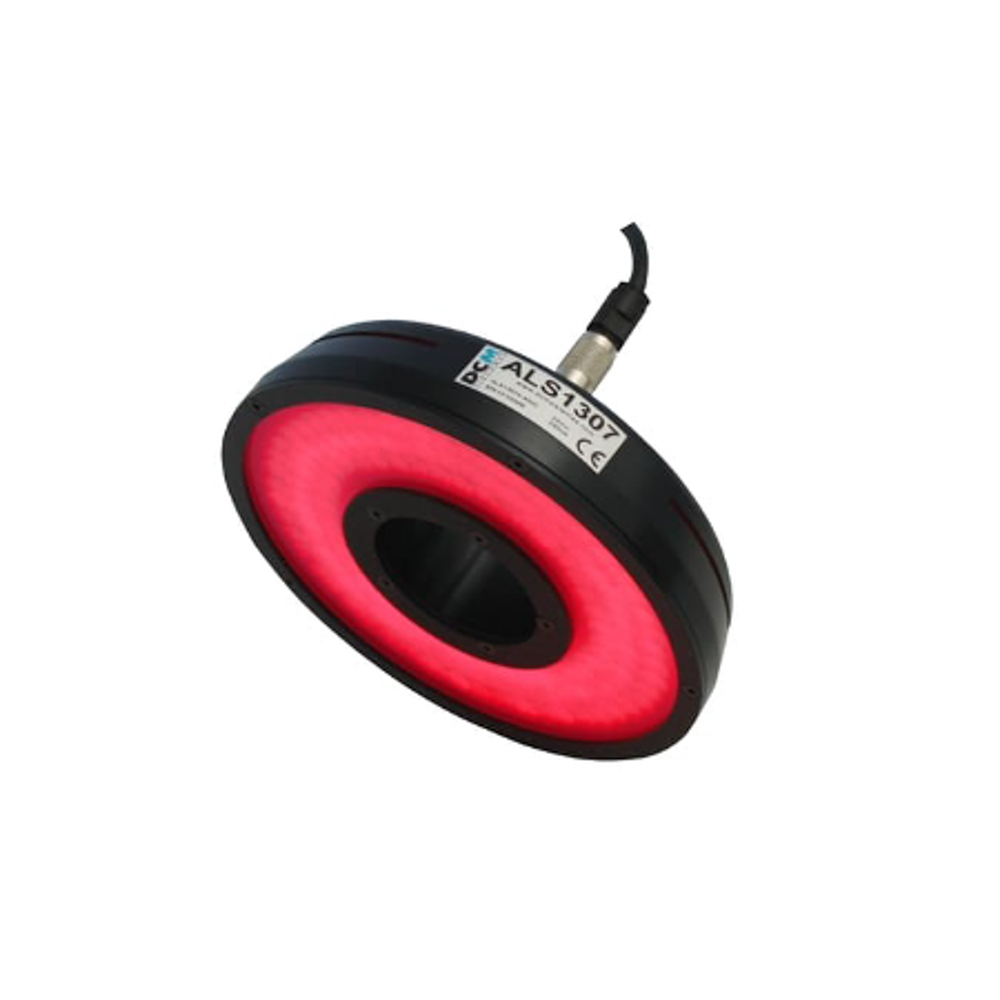

DCM ALS1307A front

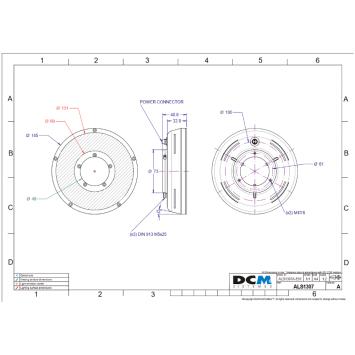

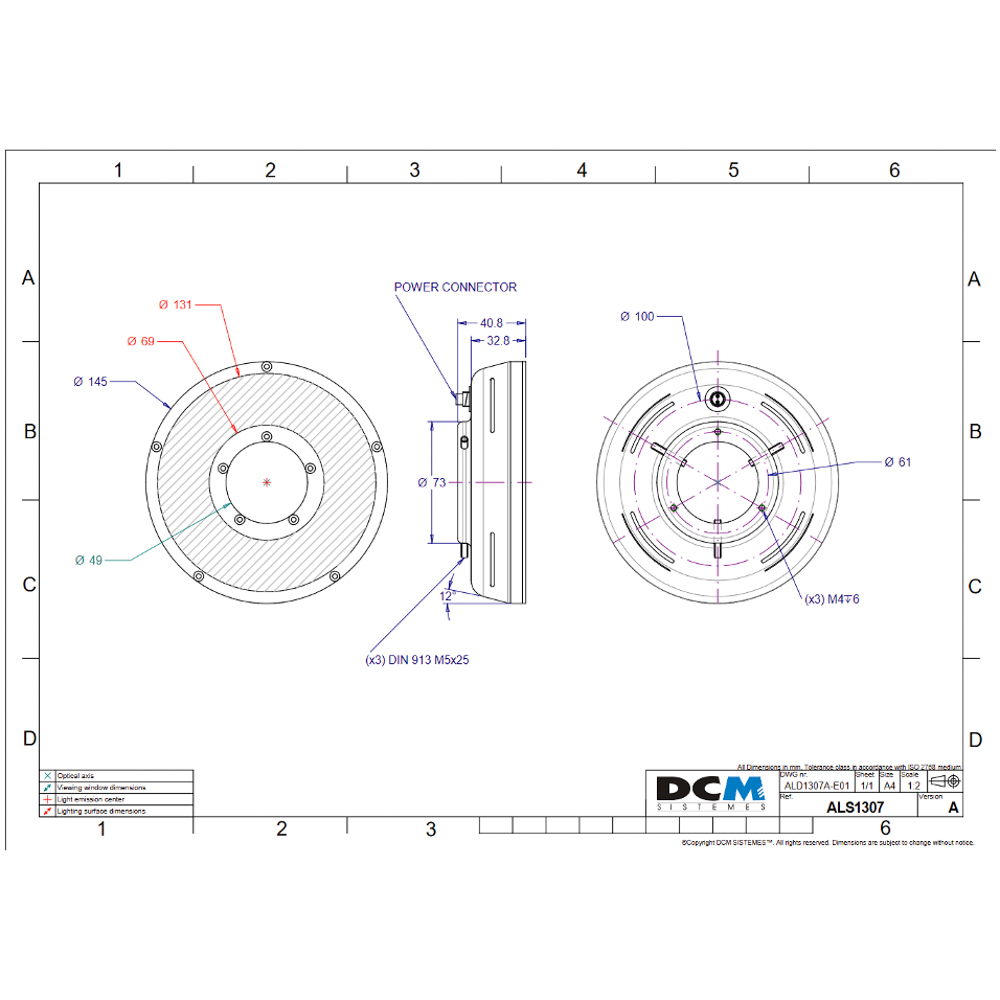

DCM ALS1307A Drawing

DCM ALS1307A-850C

Item No.: 230.0279

DCM ALS1307A-850C, Diffuse Ringlight

DCM ALS1307A-850C - Diffuse Ringlight

This ringlight provides an ideal frontal diffuse light to obtain great contrast and uniformity. It is placed on the camera axis. This application allows the illumination of reflecting objects.

Applications: Eliminating reflections and reducing shadows

Full technical specifications: Click here to download

Manufactured in Europe

1.019,71
(Price excluding VAT)
EAN
7435853086094
Type of illumination
Diffuse
Shape
Ring
Angle
0
Colour
IR850
Voltage Input
24V
IP
30
Size
49
Brand
DCM sistemes
Series
ALS

Specification

- Colour IR850

- Size 49 mm

- Angle 0°

- Continuous and Strobe Applications

- 2P male chassis connector

Technical information

24V DC Input Power

Voltage/Watt

24V / 8.2 W (IR850)

850nm
