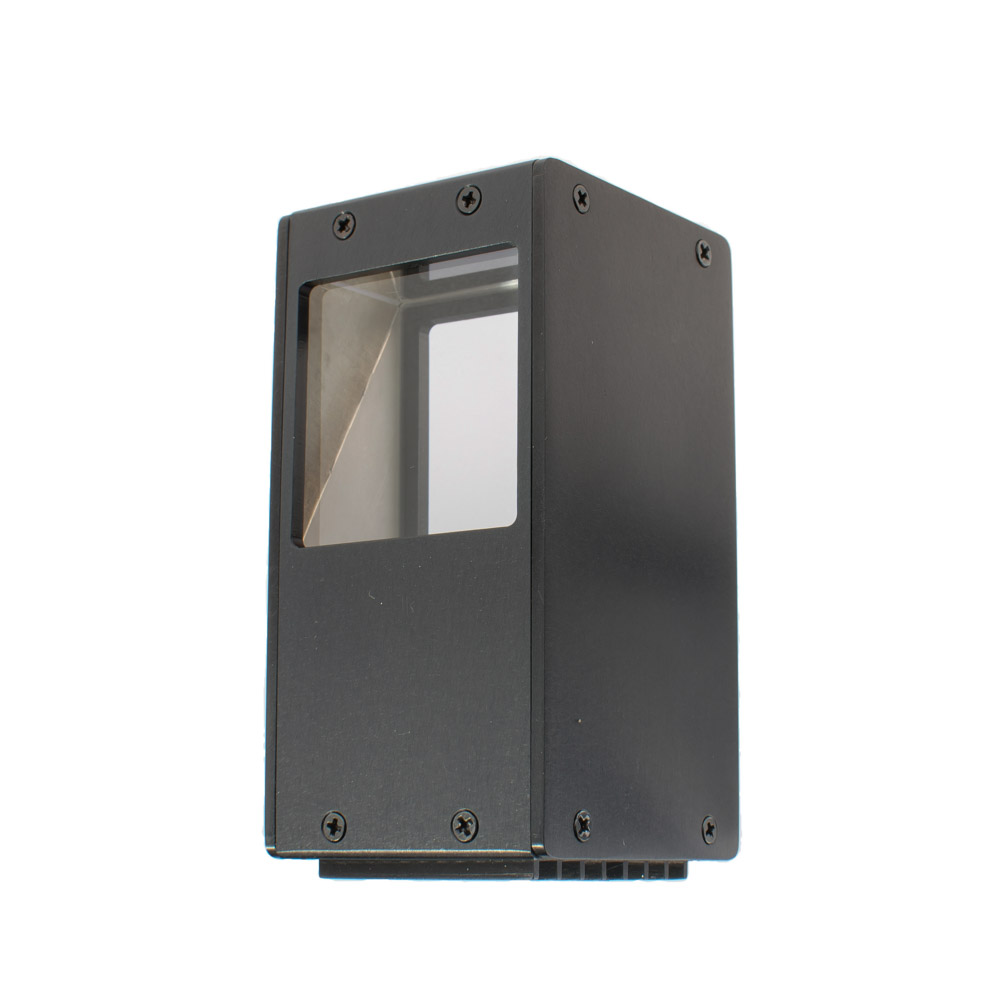

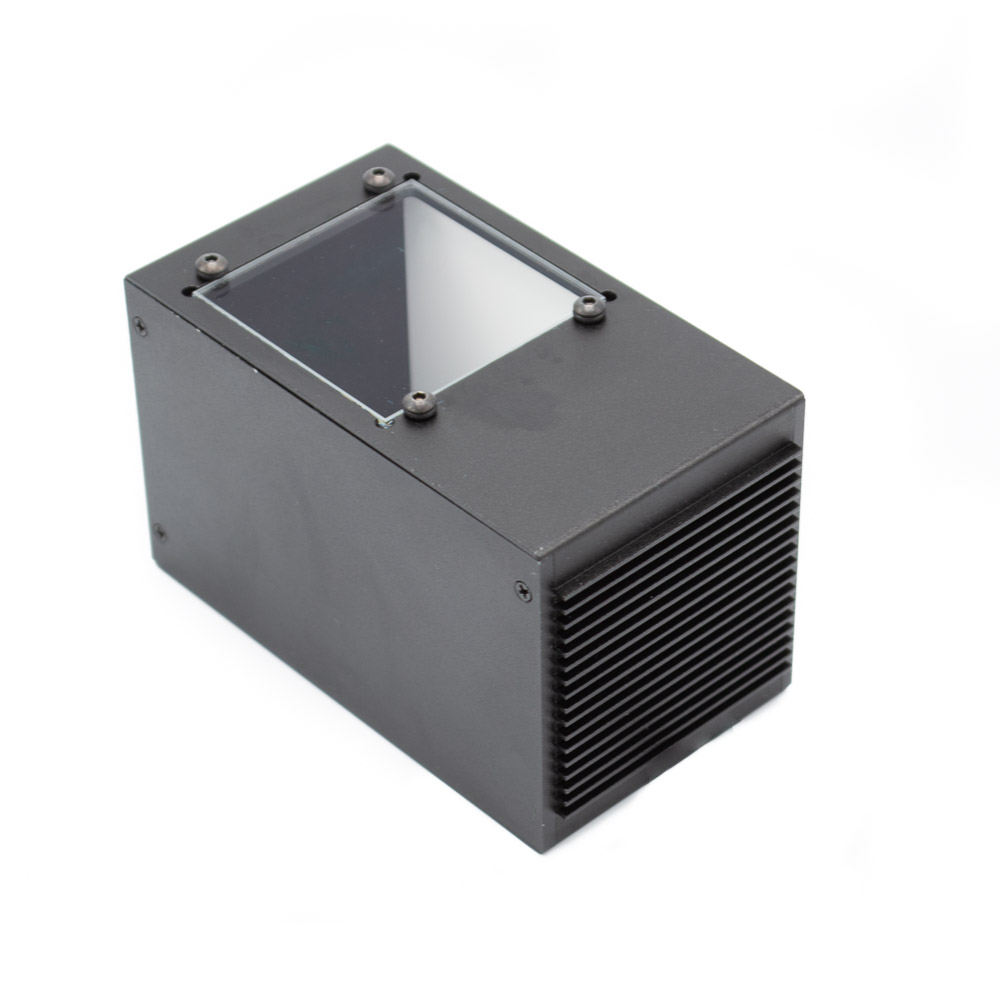

CASC-00-015-X-B-24V
CASC-00-015-X-B-24V
CASC-00-015-X-B-24V
CASC-00-015-X-B-24V

CASC-00-015-X-B-24V

Item No.: 167.0413

Coaxial Illumination

CASC SERIES - Uniform coaxial illumination

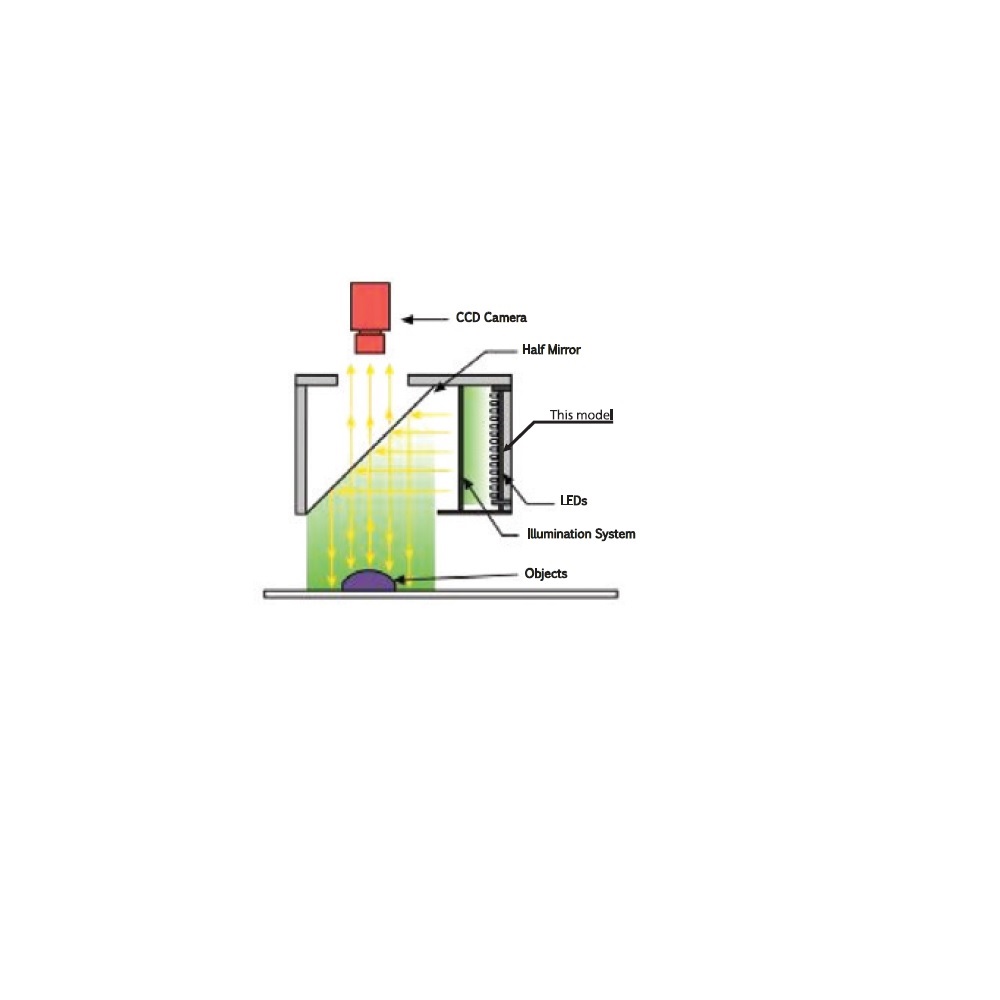

CASC series provides coaxial illumination mostly for high magnification telecentric lenses. The light projected from the light source is reflected by a prism cube beam splitter to provide light parallel with the camera.

Applications: surface inspection and alignment, wafer, metal surface inspection, film, LCD and glass, pattern on PCB

Full technical specifications: Click here to download

693,00
(Price excluding VAT)
EAN
7435849034078
Type of illumination
Coaxial
Shape
Coaxial
Angle
0
Colour
Blue
Voltage Input
24V
Size
15
Brand
TMS Lite
Series
CASC

Specification

- Colour Blue

- Size 15mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                 Current

24V / 2.16 W (Blue)      90mA

LED 470 nm
