CAS2-45-020-X-R-24V
CAS2-45-020-X-R-24V
CAS2-45-020-X-R-24V
CAS2-45-020-X-R-24V
CAS2-45-020-X-R-24V
CAS2-45-020-X-R-24V

CAS2-45-020-X-R-24V

Item No.: 167.0390

Coaxial Illumination

CAS SERIES - Even coaxial light

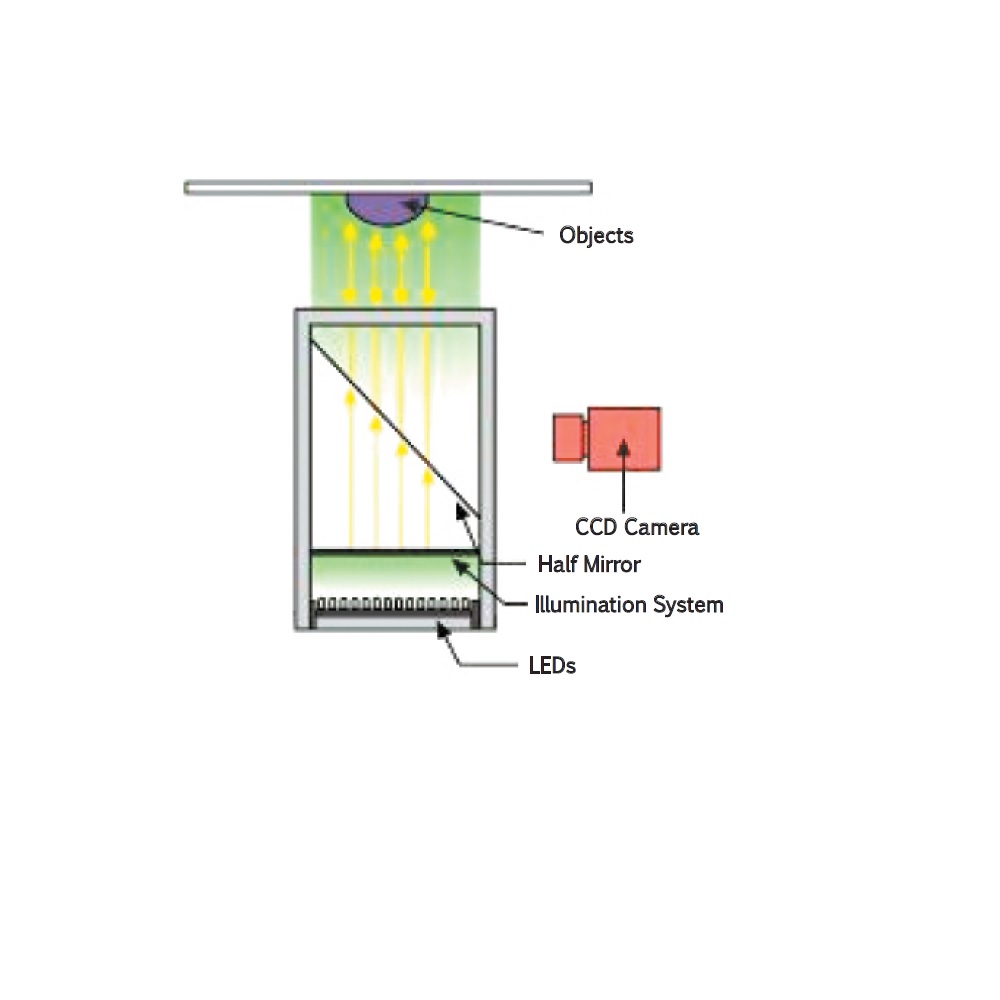

CAS 45 series is an extended version of coaxial light wich allows the camera to be mounted at 90 degrees from the inline light.

This illumination is suitable for limited camera mounting space or bottom inspection.

Applications: surface inspection and alignment, wafer, metal surface, film, LCD and glass, pattern on PCB

Full technical specifications: Click here to download

706,00
(Price excluding VAT)
EAN
7435850881876
Type of illumination
Coaxial
Shape
Coaxial
Angle
45
Colour
Red
Voltage Input
24V
Size
20
Brand
TMS Lite
Series
CAS

Specification

- Colour Red

- Size 20mm

- Angle 45°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                   Current

24V / 1.92 W (Red)         80mA

LED 630 nm
