BHS4-00-090-X-W-24V Top view

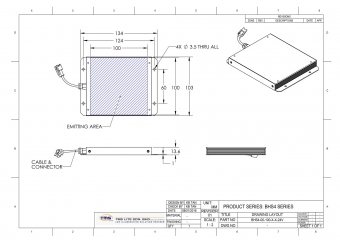

Drawing BHS4-00-090-X-W-24V
Drawing 2 BHS4-00-090-X-W-24V
BHS4-00-090-X-W-24V Side view
BHS4-00-090-X-W-24V

BHS4-00-090-X-W-24V

Item No.: 167.0299

Backlight Illumination

BHS SERIES - Computer vision backlight illumination

BHS series LEDs are arranged in a dense array and shine into a diffuser.

The uniform light emitted provides area illumination creating a silhouette that highlights a work piece's shape and outline.

Applications: lead frame inspection, shape recognition, size measurement

Full technical specifications: Click here to download

355,00
(Price excluding VAT)
EAN
7435854796794
Type of illumination
Backlight
Shape
Square
Angle
0
Colour
White
Voltage Input
24V
Size
90x90
Brand
TMS Lite
Series
BHS

Specification

- Colour White

- Size 90mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical information

24V DC Input Power

Voltage/Watt                  Current

24V / 5.184 W (White)   216mA
