BHH-00-035-X-R-24V

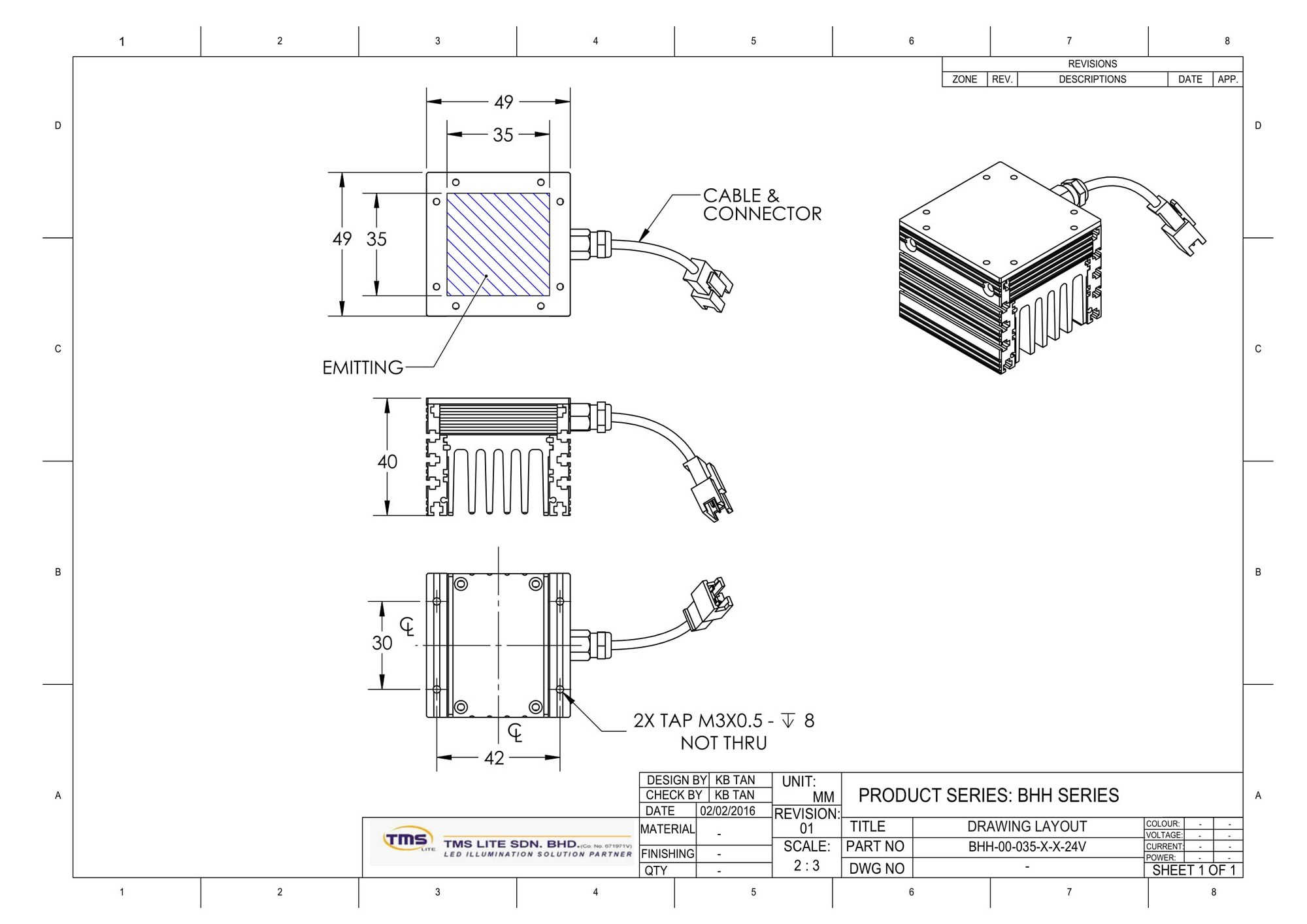

BHH-00-035-X-R-24V Drawing
BHH-00-035-X-R-24V
BHH-00-035-X-R-24V specifications

BHH-00-035-X-R-24V

Item No.: 167.0162

Backlight Illumination

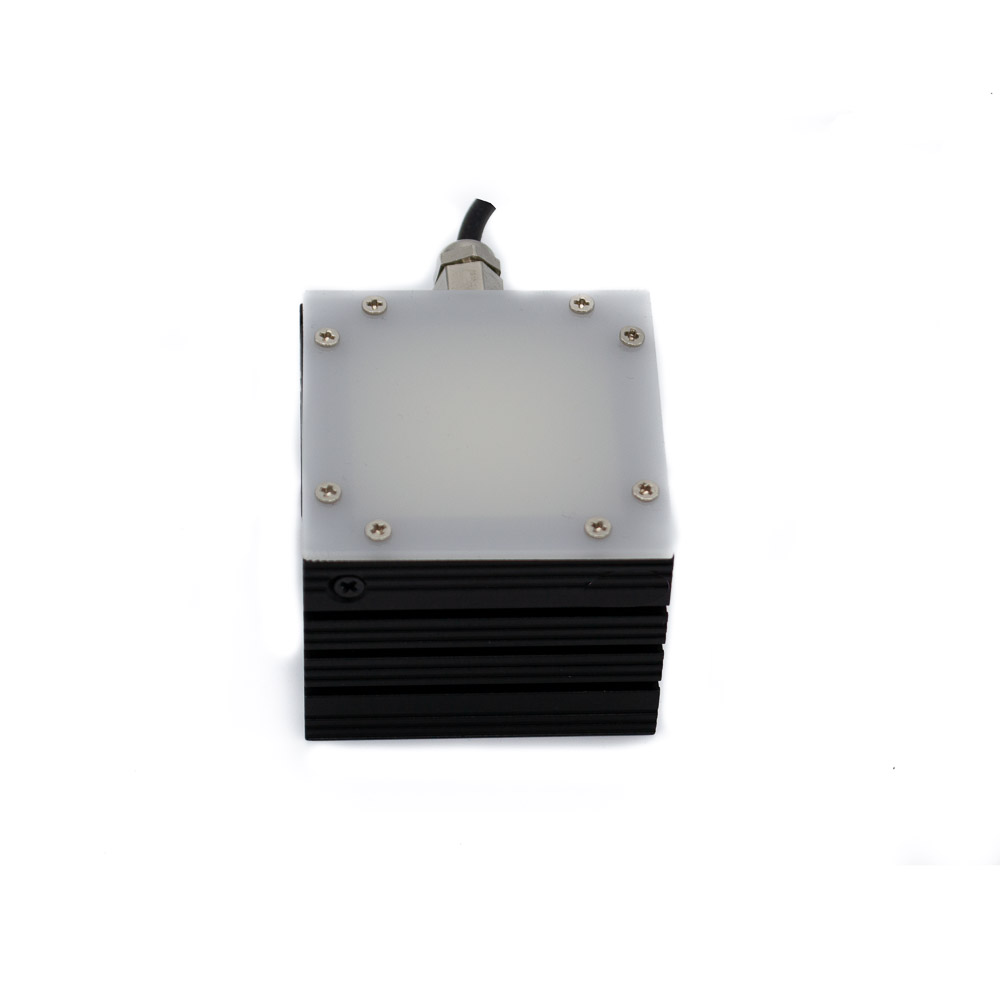

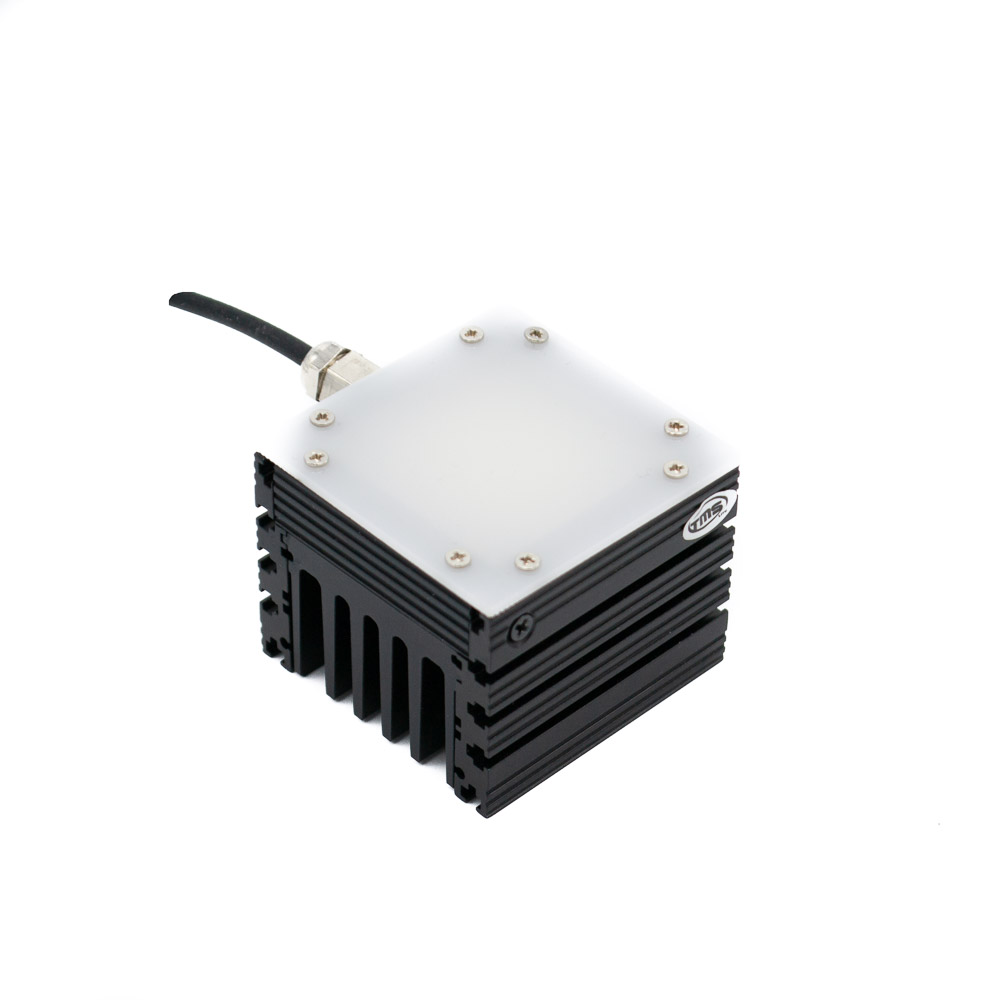

BHH SERIES - High Power Backlight Illumination

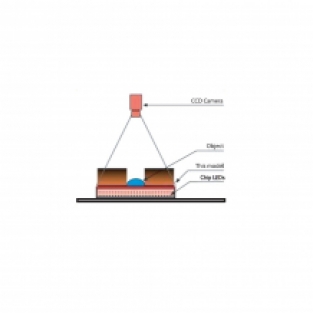

BHH Serie is a high power backlight which LEDs are arranged in a dense array and shine into a diffuser.

This product is suitable to use in a high speed application.

Applications: lead frame inspection, shape recognition, size measurement, edge detection

Full technical specifications: Click here to download

407,00
(Price excluding VAT)
EAN
7435851440447
Type of illumination
Backlight
Shape
Square
Angle
0
Colour
Red
Voltage Input
24V
Size
35
Brand
TMS Lite
Series
BHH

Specification

- Colour Red

- Length 35mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                 Current

24V / 3.60 W (Red)      150mA

LED 630 nm
