BHDS-00-30x150-1
BHDS-00-30x150-1-B-24V
BHDS-00-30x150-1-B-24V
BHDS-00-30x150-1-B-24V
BHDS-00-30x150-1-B-24V

BHDS-00-30x150-1-B-24V

Item No.: 167.0150

Backlight Illumination

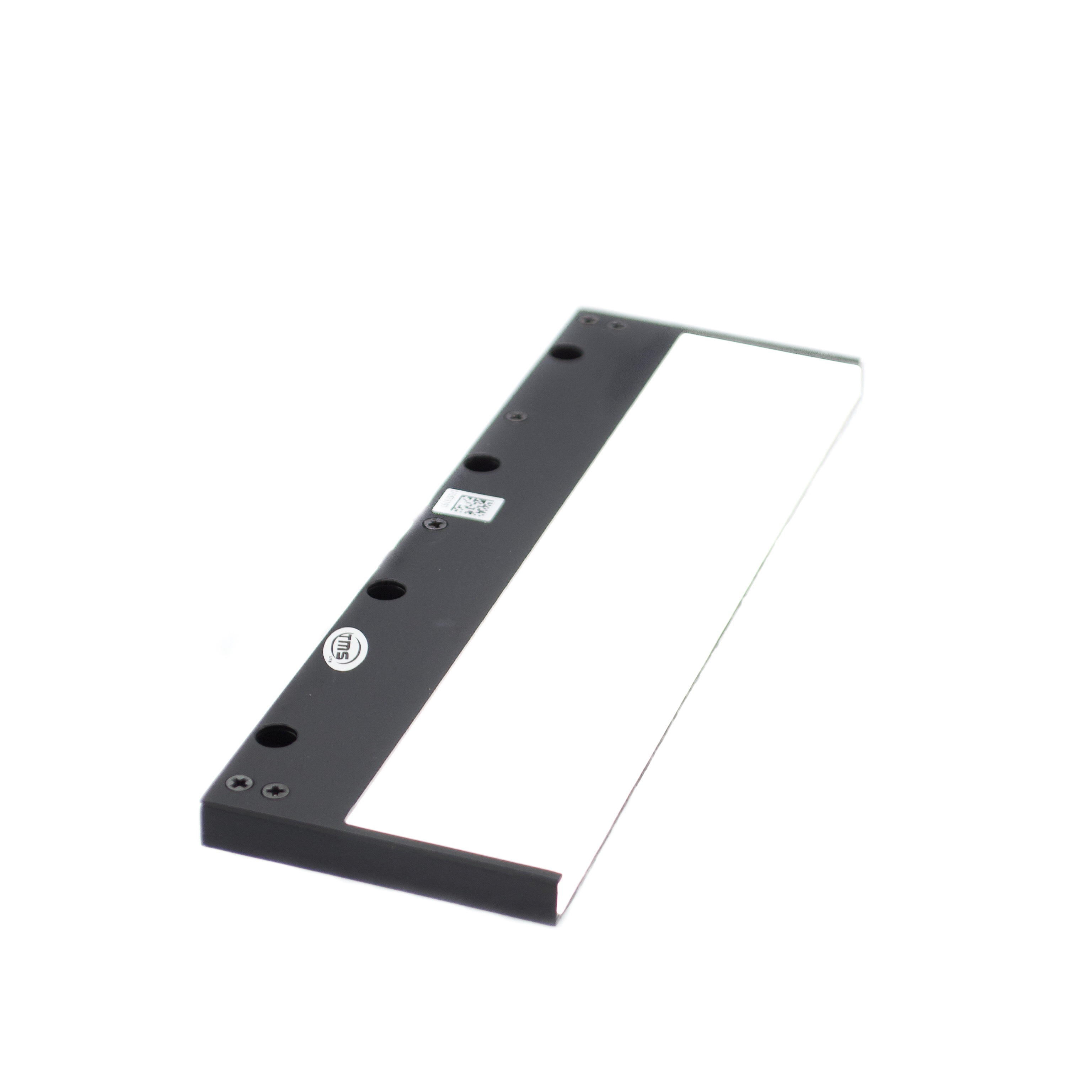

BHDS & BHD SERIES - Side Backlight Illumination

BHDS & BHD series is a flat even background lighting where the LEDs shine from the side into the diffuser.

Applications: lead frame inspection, shape recognition, size measurement

Full technical specifications: Click here to download

413,00
(Price excluding VAT)
EAN
7435843756730
Type of illumination
Backlight
Shape
Panel
Angle
0
Colour
Blue
Voltage Input
24V
Size
30x150
Brand
TMS Lite
Series
BHDS

Specification

- Color Blue

- Size 30x150mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                  Current

24V / 2.40 W (Blue)       100mA

LED 450 nm OSRAM
