Item No.: 167.0135

Backlight Illumination

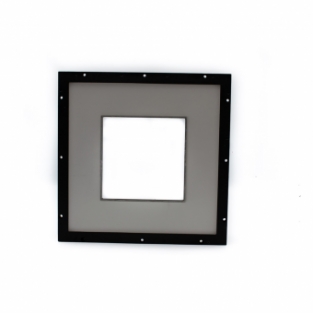

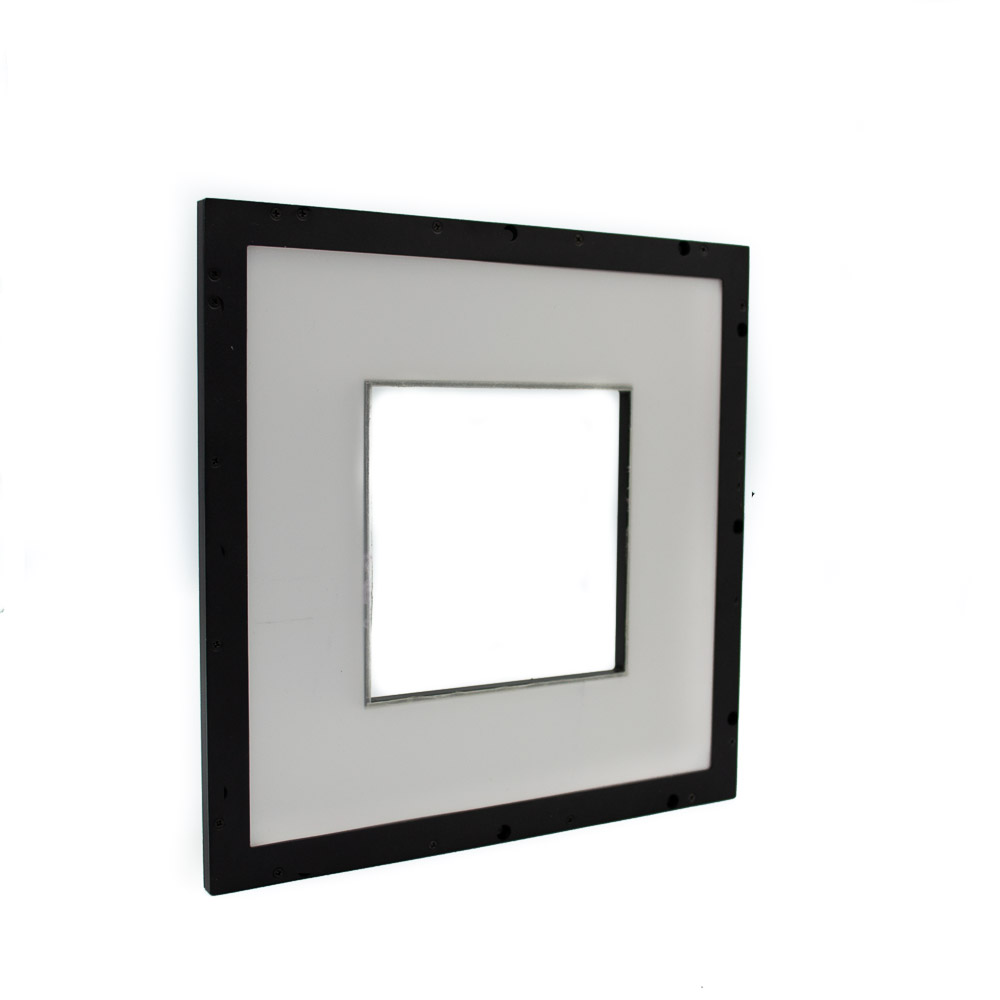

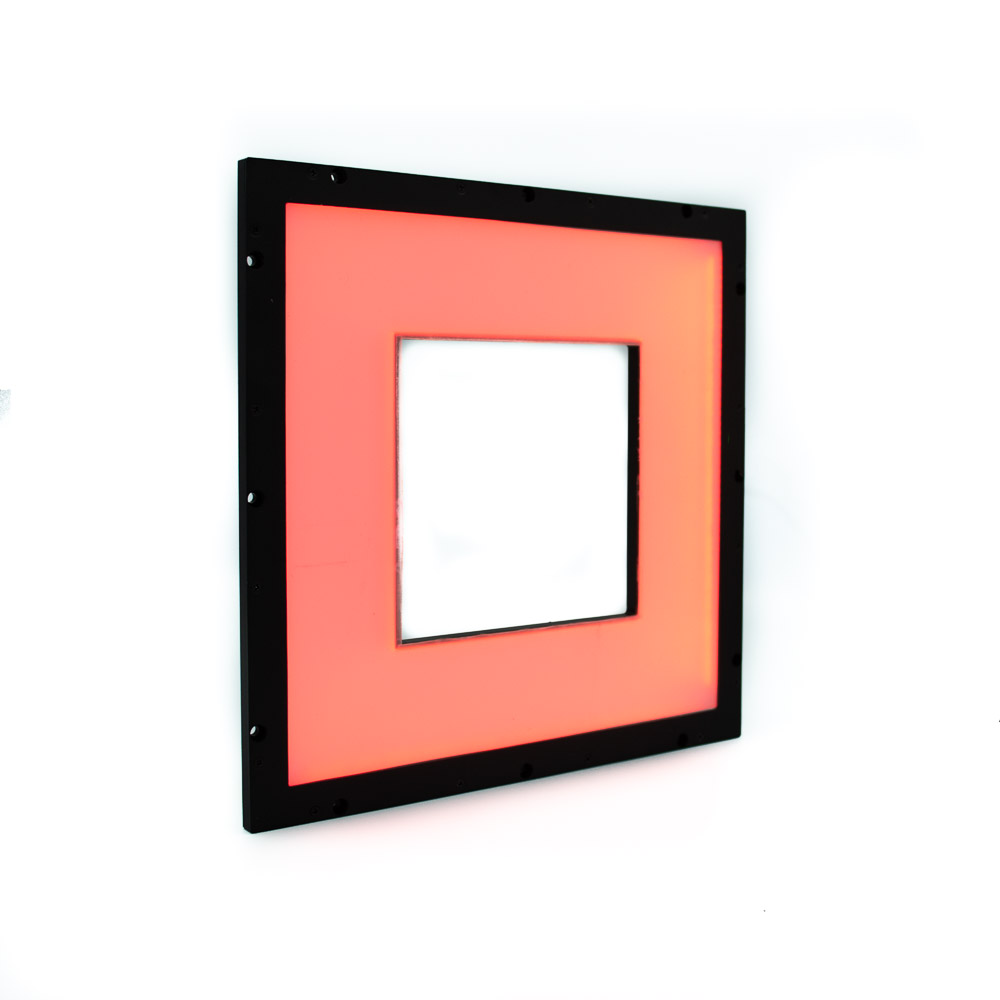

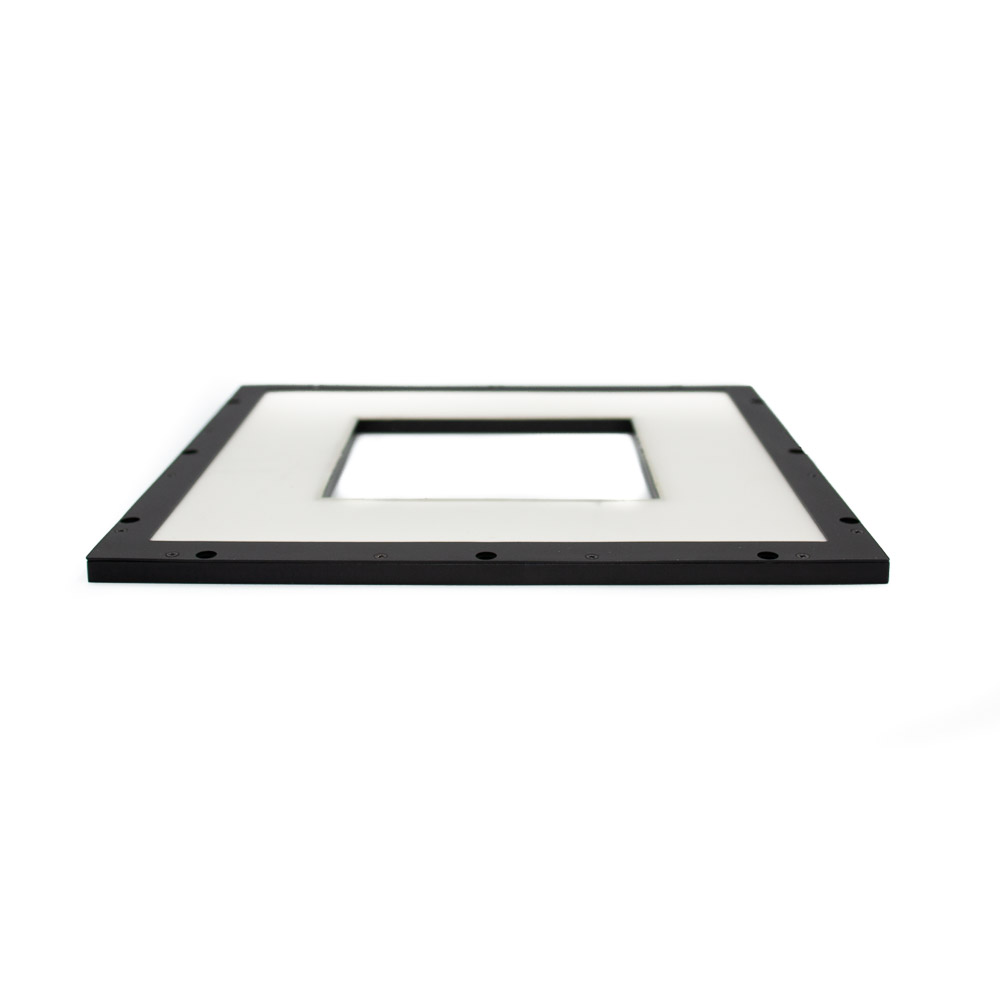

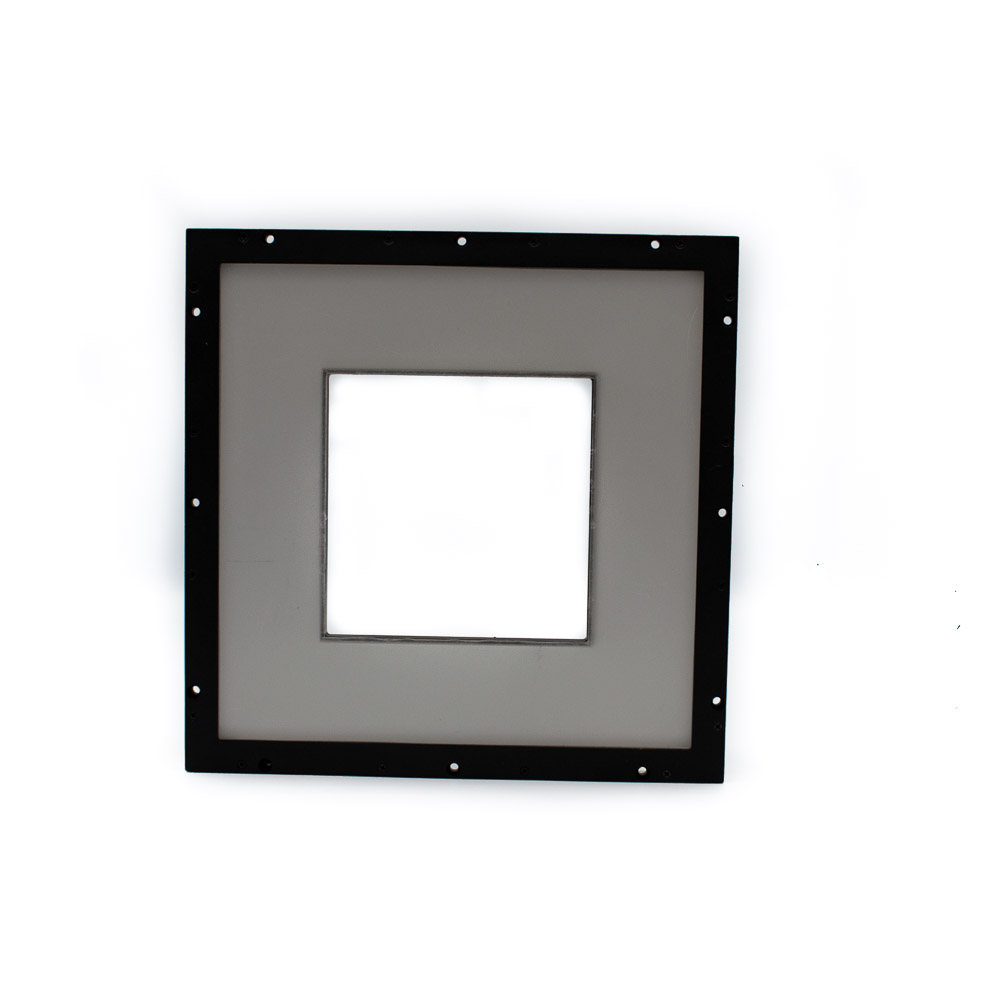

BHDQ SERIES - Side Backlight Illumination

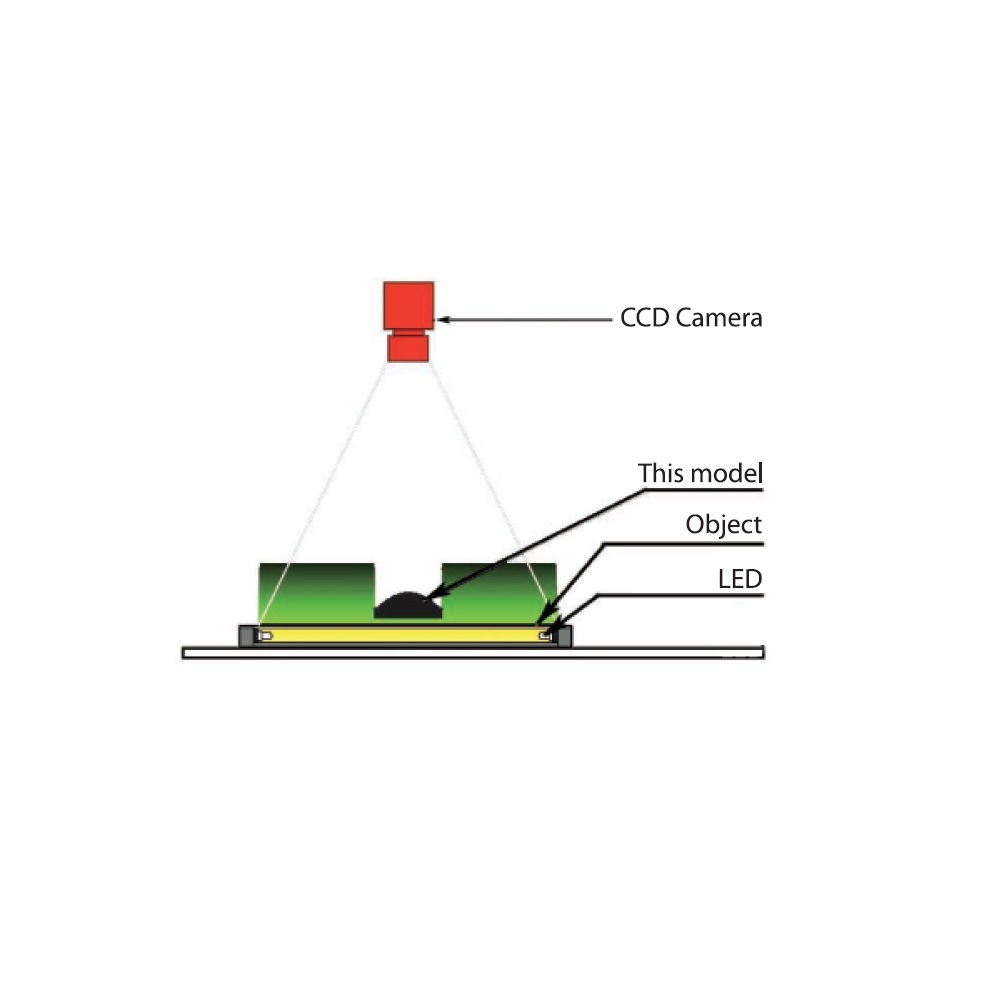

BHDQ series is a four-sided backlight with a diffuser that produces highly uniform light distribution. It is used in applications where the side or the corner of an objects is inspected.

Applications: lead frame inspection, shape recognition, size measurement

Full technical specifications: Click here to download

946,00
(Price excluding VAT)
EAN
7435853478493
Type of illumination
Backlight
Shape
Panel
Angle
0
Colour
Blue
Voltage Input
24V
Size
200
Brand
TMS Lite
Series
BHDQ

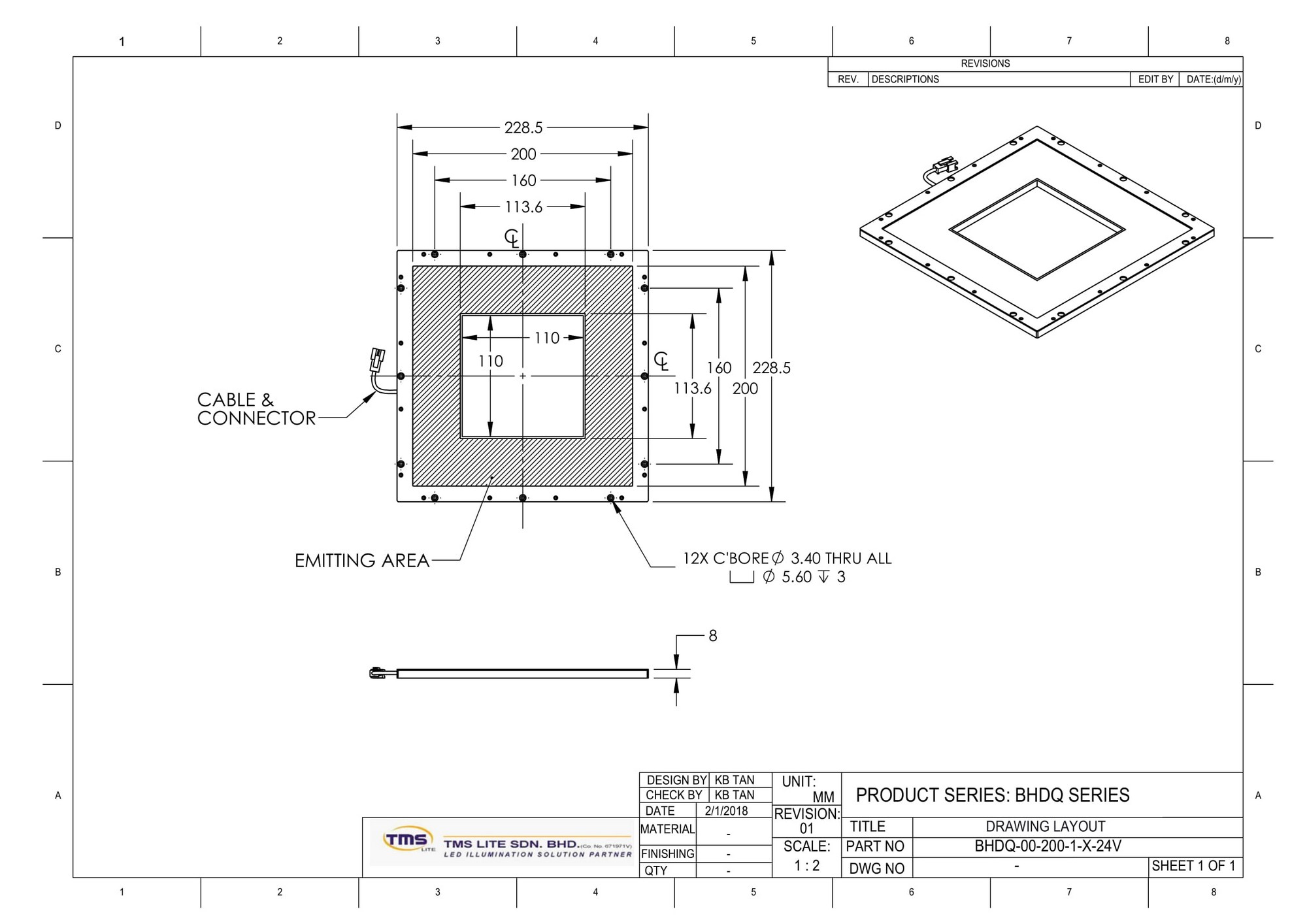

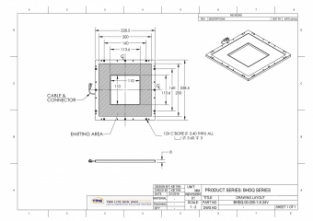

Specification

- Colour Blue

- Length 200mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                 Current

24V / 14.40 W (Blue)    600mA

LED 450 nm OSRAM
