Item No.: 167.0125

Backlight Illumination

BHDS & BHD SERIES - Side Backlight Illumination

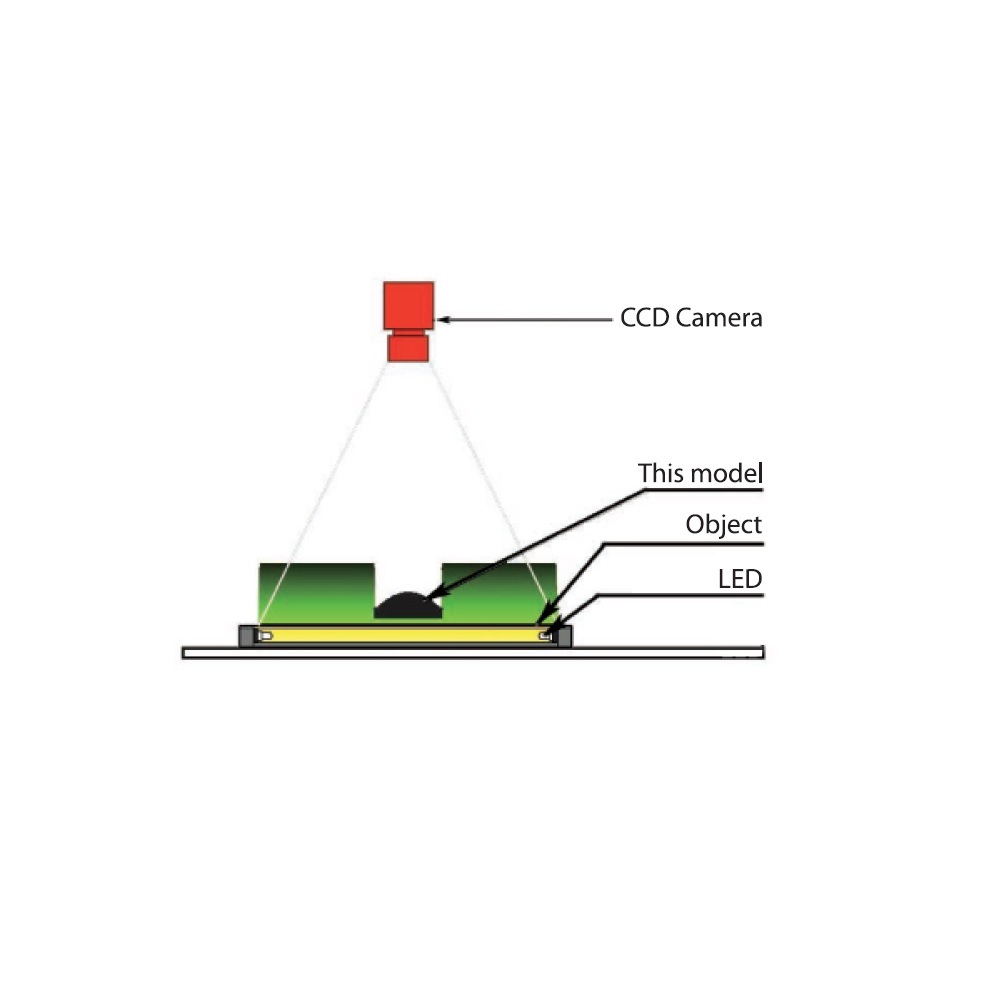

BHDS & BHD series is a flat even background lighting where the LEDs shine from the side into the diffuser.

Applications: lead frame inspection, shape recognition, size measurement

Full technical specifications: Click here to download

335,00
(Price excluding VAT)
EAN
7435854122104
Type of illumination
Backlight
Shape
Panel
Angle
0
Colour
Blue
Voltage Input
24V
Size
100
Brand
TMS Lite
Series
BHD

Specification

- Color Blue

- Size 100mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                  Current

24V / 3.84 W (Blue)       160mA

LED 450 nm OSRAM
