MATRIX 220 382-010

Name: MATRIX 220 382-010
Brand: Datalogic
SKU: 937900004
Price: 2100.00 EUR
Availability: InStock

Item No.: 057.0080

MATRIX 220 382-010

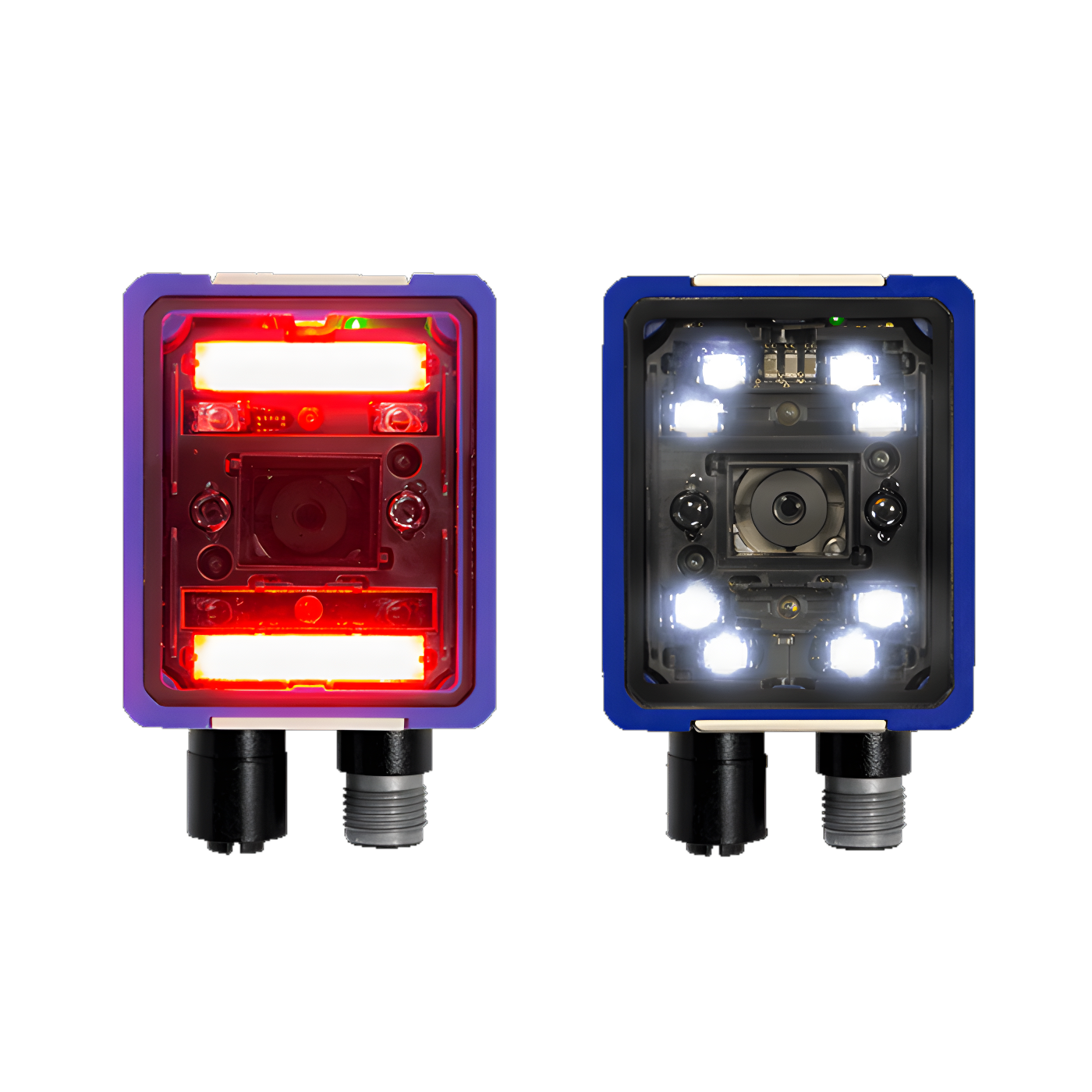

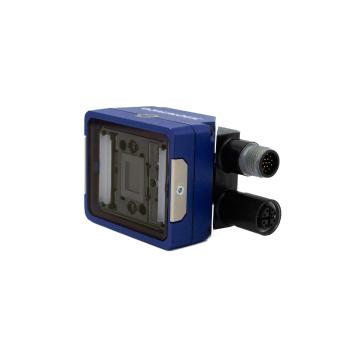

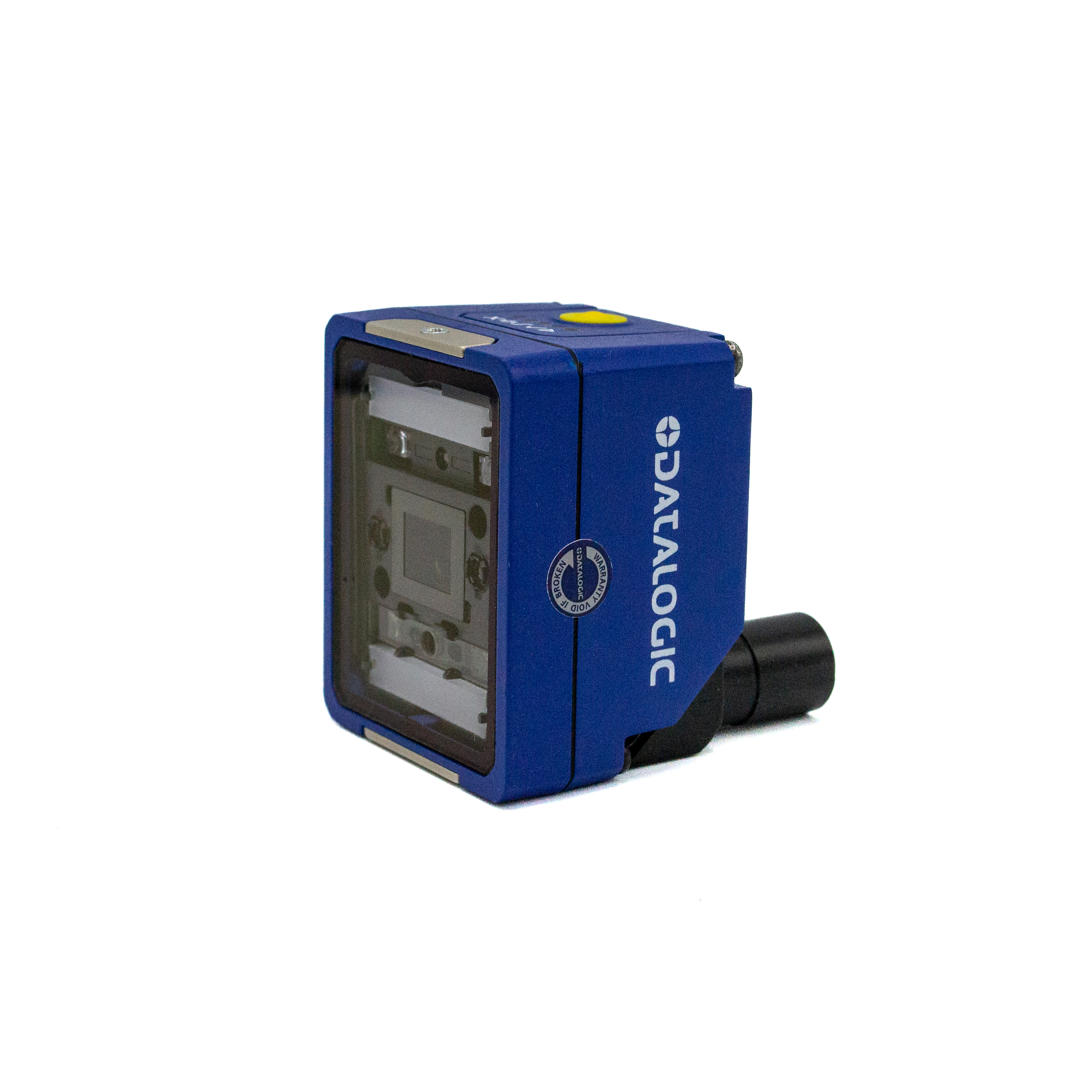

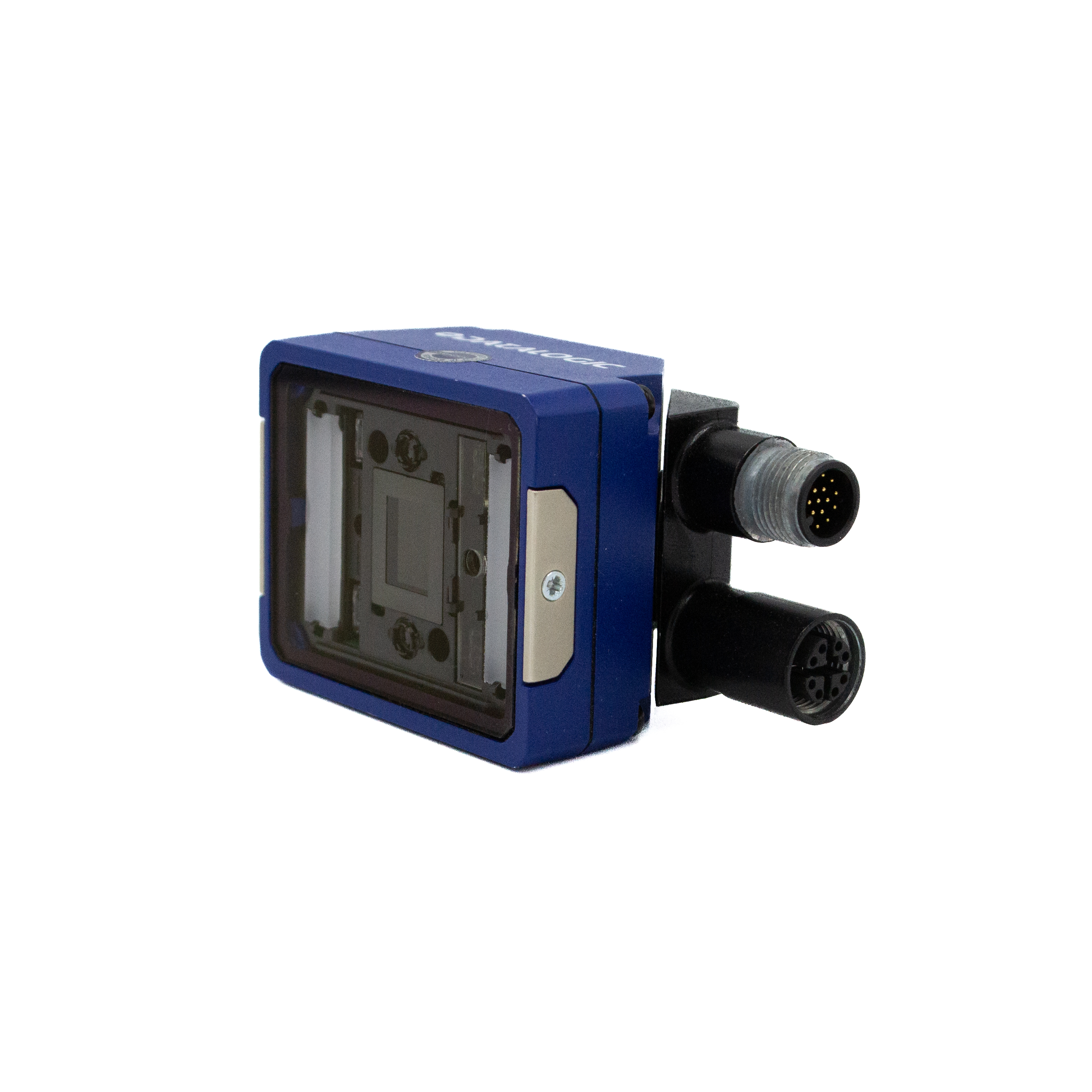

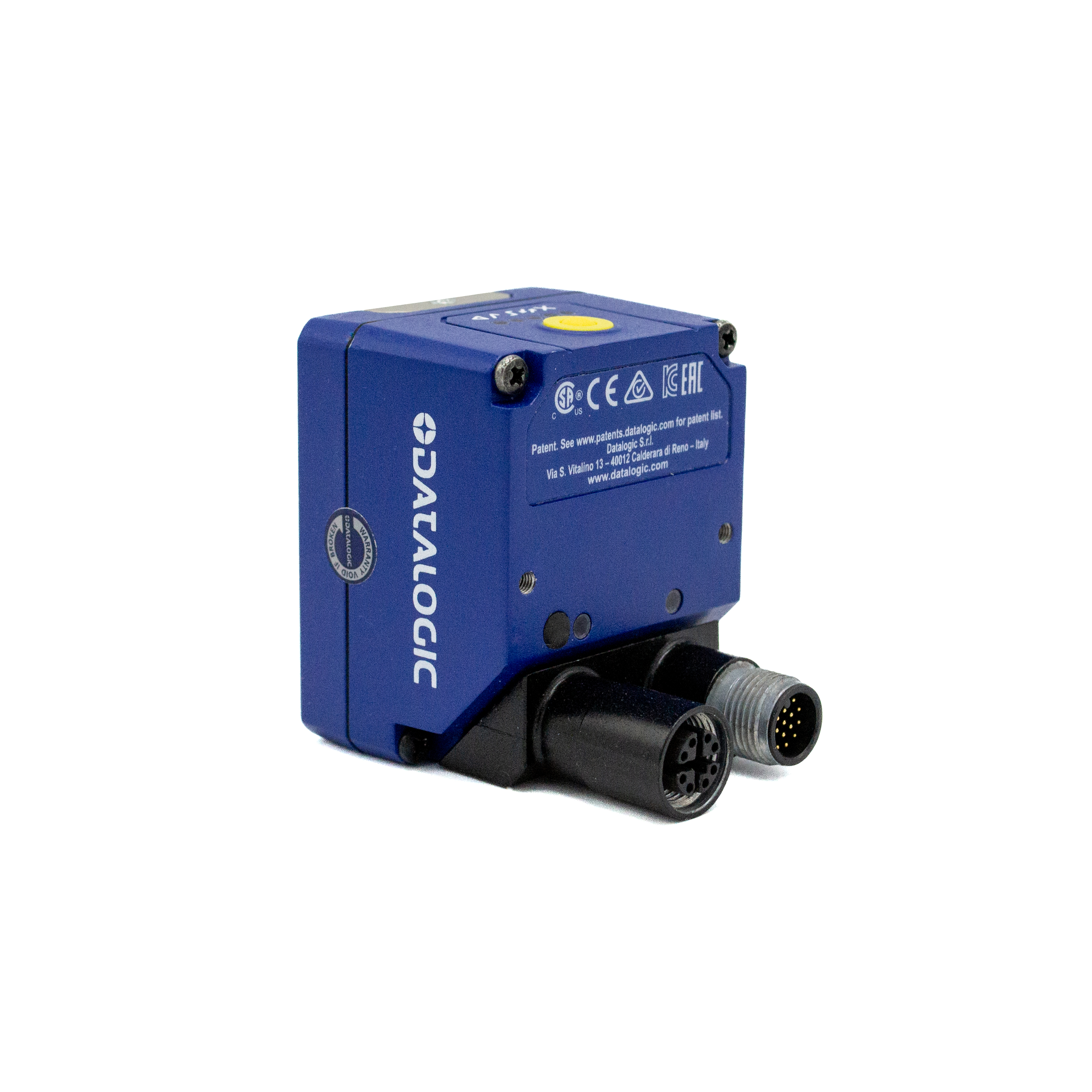

The Matrix 220 Imager is engineered to deliver exceptional performance, leveraging a 1.2 MP high-resolution sensor, an advanced image multicore processing platform, cutting-edge lighting solutions, and industrial-grade electronic focus technology. These features collectively position it as the premier choice for imaging in Electronics, Automotive, Packaging, and Document Handling applications.

Furthermore, its integrated flexible illumination system enhances its capability, making the Matrix 220 Imager perfectly suited for reading codes marked with DPM (Direct Part Marking).

Technical specifications: Click here to download

€2.100,00

(Price excluding VAT)

Request a quotation?

EAN

7435848655632

SKU

937900004

Resolution

1280x960

Camera Type

Fixed Industrial Scanner

Framerate

45 FPS

Interfaces

Ethernet

IP65

Housing

Yes

Brand

Datalogic

More Datalogic | More Cameras

Description

Technical information:

- Resolution: 1280 x 960

- MP: 1.2

- Lens: 1/3" CMOS

- FPS: 45 Frames/s

- Readable Symbologies: 1D Codes, 2D Codes

- Power requirements: 10 - 30 VDC except PoE models

- Communication: Ethernet 10/100 Mbit/s

TCP/IP, UDP, FTP
PROFINET IO
Ethernet IP
Modbus TCP
OPC UA

- IP: 65

- Operation temperature: 0 tot 50 °C

- Dimensions: 78 mm (W) x 47 mm (H) x 38 mm (D)
