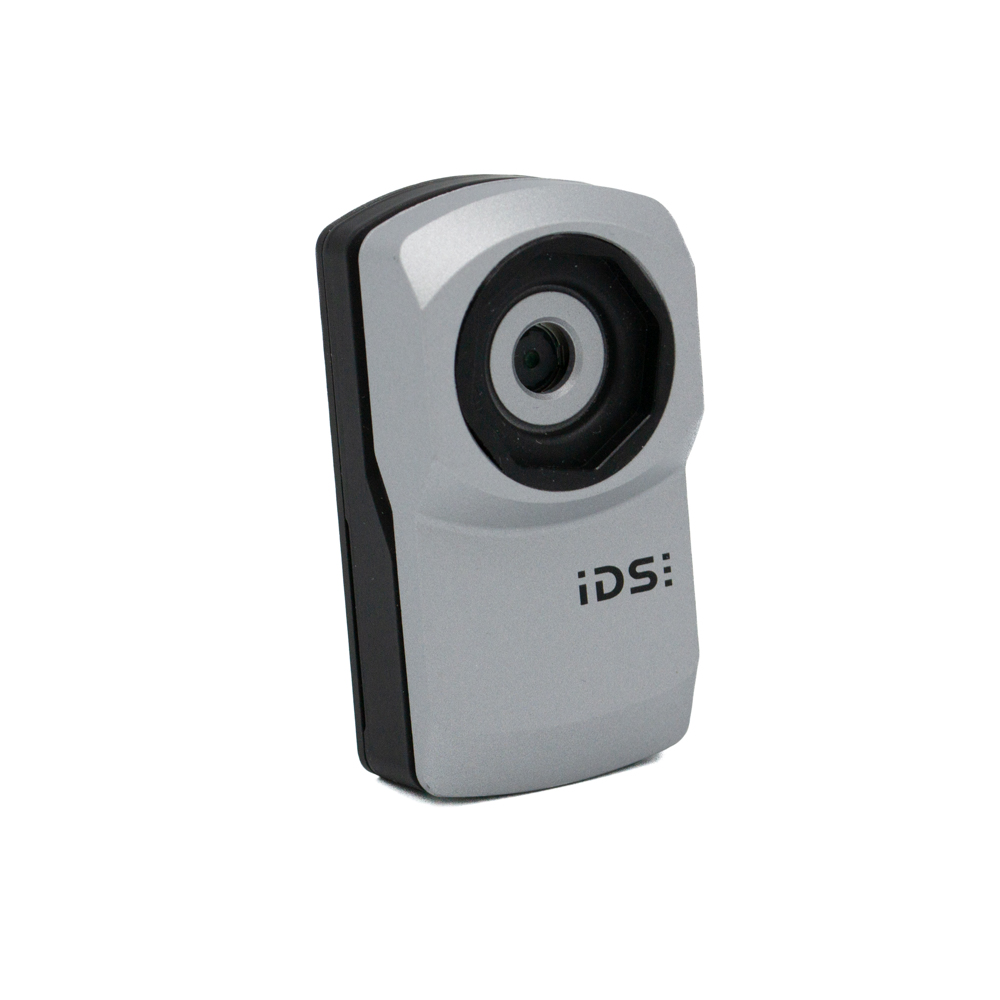

IDS U3-36L0XC-C

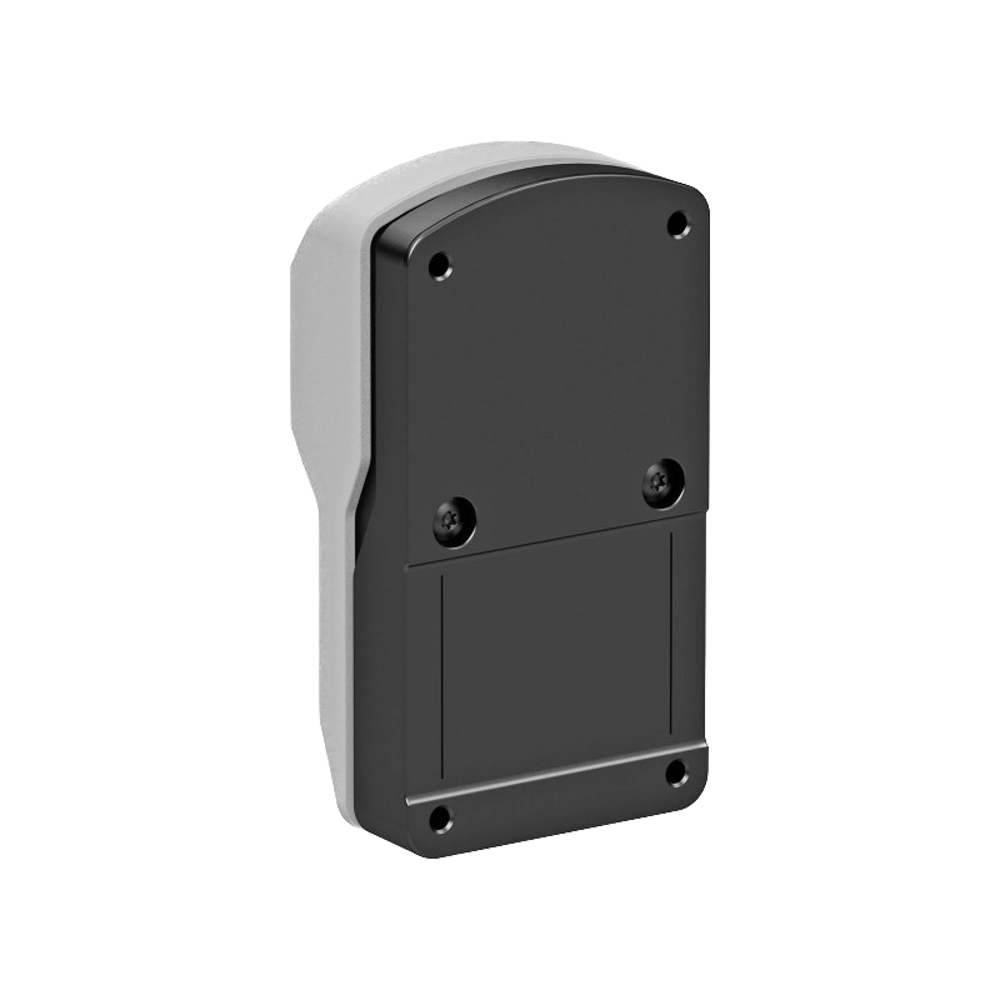

IDS U3-36L0XC-C rear
IDS U3-36L0XC-C
IDS U3-36L0XC-C rear

IDS U3-36L0XC-C

Item No.: 084.0024
IDS Imaging

IDS U3-36L0XC-C, USB 3 Machine Vision Color Camera

The IDS U3-36L0XC-C USB 3 Machine Vision Grayscale Camera is equipped with the 13.10 MPix CMOS sensor AR1335 from onsemi. The rolling shutter colour sensor (4200 x 3120 px, pixel size 1.1µm) delivers 20.0 fps and ensures true-to-detail images. Thanks to BSI ("Back Side Illumination") pixel technology, the AR1335 excels not only with excellent low-light performance but also with low pixel noise. The USB3 camera was specially developed with industrial requirements in mind and also offers useful functions such as 24x digital zoom, auto white balance and colour correction. This closes the gap between an industrial camera and a webcam.

Thanks to the integrated lens, all that is needed to use the camera is a single cable connection. In addition, it is GenICam-compliant and thus compatible with our modern software SDK IDS peak.

With its practical die-cast magnesium housing, low weight and screwable USB Micro-B connector, the autofocus camera can be used in a variety of ways in both industrial and non-industrial areas. These include, for example, analysis tasks in the laboratory and diagnostics, use in kiosk systems, logistics and robotics applications.

SKU: AB03281

Technical specifications: Click here to download

€460,00
(Price excluding VAT)
Request a quotation?
SKU
AB03281
Colour/Mono
Colour
Sensor Type
Onsemi AR1335CSSC32SMD20
Camera Type
Matrix Camera
Resolution
4200x3120
Megapixel
13 MP
Framerate
20 FPS
Interfaces
USB
IP
IP30
Housing
None
Brand
IDS Imaging

Technical information:

- Sensor: CMOS Color

- Sensor shutter: Global/Rolling

- Sensor size: 1/3.2"

- Pixel size: 1.1 µm

- Resolution: 4200x3120

- FPS: 20

- Power: 0.4W - 1.4W

- Interface connector: USB Micro-B

- IP: 30

- Operation temperature: 0 tot 55 °C

- Dimensions: 60.9 mm (H) x 31.9 mm (W) x 19 mm (D)

- CE, FCC KC and RoHS compliant
